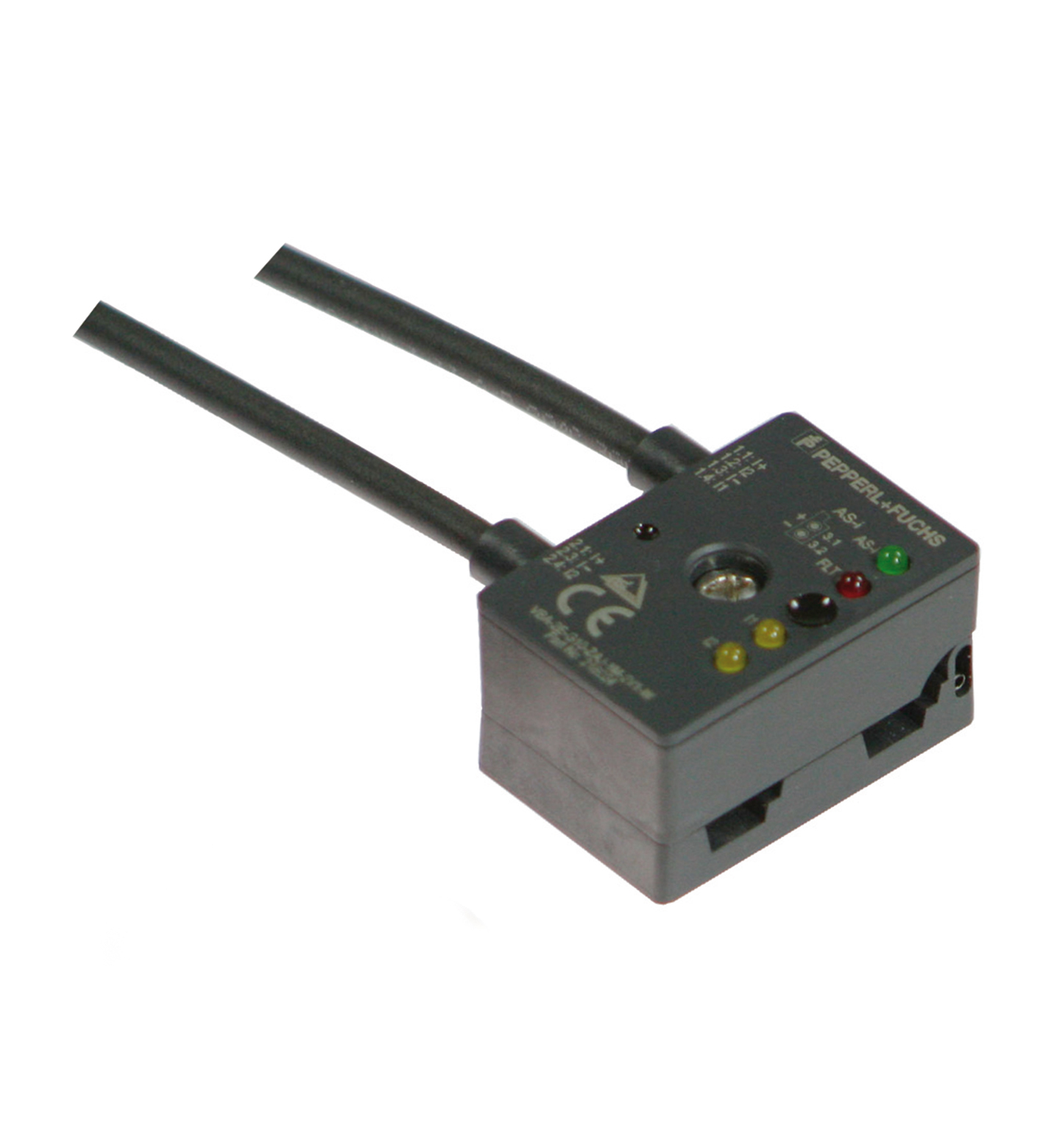

VBA-2E-G10-ZEJ-2X3M

AS-Interface sensor module. G10 ultra-compact module, 2 inputs, open cable ends. Node type: A/B node. AS-Interface specification: V3.0. Required gateway specification: ≥ V2.0. Profile: S-0.A.2. IO cod...

AS-Interface sensor module. G10 ultra-compact module, 2 inputs, open cable ends. Node type: A/B node. AS-Interface specification: V3.0. Required gateway specification: ≥ V2.0. Profile: S-0.A.2. IO code0ID codeAID1 code7ID2 code2: . IO code: 0. ID code: A. ID1 code: 7. ID2 code: 2. UL File Number: E223772 "For use in NFPA 79 Applications only". LED FAULT: error display; LED redred: communication error or address is 0red flashing: overload of sensor power supply or outputs. LED AS-i: AS-Interface voltage; LED green. LED IN: switching state (input); 2 LED yellow. Rated operating voltage: 18.5 ... 31.6 V from AS-Interface. Rated operating current: ≤ 40 mA (without sensors) / max. 120 mA. Protection class: III. Surge protection: UAUX, Uin: Over voltage category III, safe isolated power supplies (PELV). Number/Type: 2 inputs for 2- or 3-wire sensors (PNP), DC. Supply: from AS-Interface. Voltage: 21 ... 31 V. Current loading capacity: 75 mA at TB ≤ 40 °C (104 °F) 60 mA at TB ≤ 75 °C (167 °F) overload and short-circuit resistant. Input current: ≤ 9 mA (limited internally). Switching point: according to DIN EN 61131-2 (Type 2). 0 (unattenuated)≤ 3 mA1 (attenuated)≥ 5 mA: . 0 (unattenuated): ≤ 3 mA. 1 (attenuated): ≥ 5 mA. Signal delay: < 1 ms (input/AS-Interface). Electromagnetic compatibility: . Directive 2014/30/EUEN 62026-2:2013: . Directive 2014/30/EU: EN 62026-2:2013. Degree of protection: EN 60529:2000. Fieldbus standard: EN 62026-2:2013. Input: EN 61131-2:2007. Emitted interference: EN 61000-6-4:2007. AS-Interface: EN 62026-2:2013. Noise immunity: EN 61000-6-2:2005, EN 61326-1:2006, EN 62026-2:2013. UL approval: cULus Listed, Type 1 enclosure. Maximum permissible ambient temperaturemax. 65 °C (max. 149 °F): . Maximum permissible ambient temperature: max. 65 °C (max. 149 °F). Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Storage temperature: -25 ... 85 °C (-13 ... 185 °F). Shock and impact resistance: 30 g, 11 ms in 6 spatial directions 3 shocks10 g, 16 ms in 6 spatial directions 1000 shocks. Vibration resistance: 0.75 mm 10 ... 57 Hz , 5 g 57 ... 150 Hz, 20 cycles. Degree of protection: IP67 IP67 / IP68 / IP69K with flat cable VAZ-FK-S-*. Connection: AS-Interface: AS-Interface flat cable Inputs & matching connector: M12 round connector, 4-pin, A-coded, according to IEC 61076-2-101:2012. Material: . ContactsCuSn / AuHousingPBT PCCablePURMounting screwStainless steel 1.4305 / AISI 303: . Contacts: CuSn / Au. Housing: PBT PC. Cable: PUR. Mounting screw: Stainless steel 1.4305 / AISI 303. Cable: . Sheath diameter∅4,3 mmColorblackCores4 x 0.34 mm2LengthL3 m: . Sheath diameter: ∅4,3 mm. Color: black. Cores: 4 x 0.34 mm2. Length: 3 m. Mass: 100 g. Tightening torque, fastening screws: 1.65 Nm. Tightening torque, cable gland: 0.4 Nm. Dimensions: . Height21.5 mmWidth27.7 mmLength40.5 mm: . Height: 21.5 mm. Width: 27.7 mm. Length: 40.5 mm

Brand	Pepperl Fuchs
Lifecycle status	active
