VBA-2E-G11-I/U/PT100-F

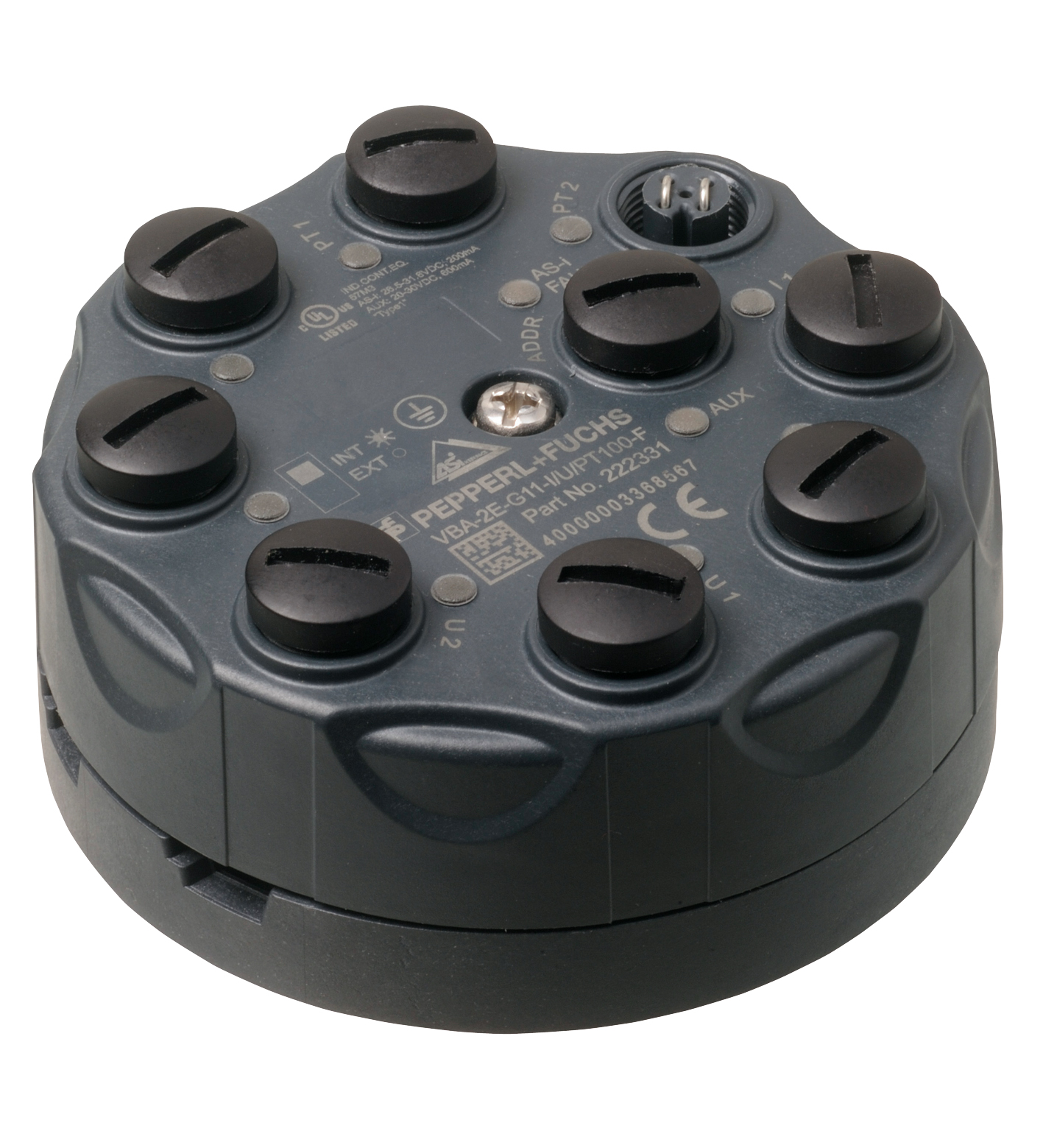

AS-Interface analog module. G11 analog module, 2 analog inputs. Node type: Standard node. AS-Interface specification: V3.0. Required gateway specification: ≥ V2.1. Profile: S-7.3.D. IO code7ID code3ID...

AS-Interface analog module. G11 analog module, 2 analog inputs. Node type: Standard node. AS-Interface specification: V3.0. Required gateway specification: ≥ V2.1. Profile: S-7.3.D. IO code7ID code3ID1 codeFID2 codeD: . IO code: 7. ID code: 3. ID1 code: F. ID2 code: D. UL File Number: E223772. LED AS-i/FAULT: Status display; multi-colour LEDGreen: normal operationRed: communication faultFlashing yellow/red: address 0Flashing green/red: peripheral fault. LED ANALOG: status of input signal; LED yellowoff: not activeon: signal within measuring rangeflashing: signal outside of measuring range. LED AUX: ext. auxiliary voltage UAUX; dual LED green/redgreen: voltage OKred: reverse voltage. LED INT/EXT: status display input supply; LED greengreen: input supply from AS-Interfaceoff: input supply from auxiliary voltage. Auxiliary voltage (output): 20 ... 30 V DC PELV. Rated operating voltage: 26.5 ... 31.6 V from AS-Interface. Rated operating current: ≤ 60 mA (without sensors) / max. 200 mA. Protection class: III. Surge protection: UAUX, Uin: Over voltage category III, safe isolated power supplies (PELV). Number/Type: 2 analog inputsCurrent: 0 ... 20 mA/4 ... 20 mAvoltage: 0 ... 10 V Pt100: -200 ... 850 °C. Supply: from AS-Interface (switch position INT, default settings) or auxiliary voltage UEXT (switch position EXT). Current loading capacity: ≤ 140 mA from AS-Interface; overload and short-circuit resistant ≤ 600 mA from external auxiliary voltage UAUX , overload and short-circuit protected. Input resistance: current input: max. 70 Ω voltage input: 100 kΩ. Measuring current: for Pt100: approx. 1 mA. Accuracy: Voltage/current: 0.1% of accumulated value Pt100: 0.1% of indicated temperature [°C] + 0.3 °C. Resolution: 16 Bit / 1 µA (current input) or16 bit / 1 mV (voltage input) or16 Bit / 0.1°C (temperature input). Temperature influence: Voltage/current: 20 ppm/KPt100: (10 ppm of indicated temperature [°C] + 0.003 °C)/K. Electromagnetic compatibility: . Directive 2014/30/EUEN 62026-2:2013: . Directive 2014/30/EU: EN 62026-2:2013. Degree of protection: EN 60529:2000. Fieldbus standard: EN 62026-2:2013. Input: EN 61131-2:2007. Emitted interference: EN 61000-6-4:2007. AS-Interface: EN 62026-2:2013. Noise immunity: EN 61000-6-2:2005, EN 61326-1:2006, EN 62026-2:2013. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Storage temperature: -25 ... 85 °C (-13 ... 185 °F). Relative humidity: 85 % , noncondensing. Climatic conditions: For indoor use only. Altitude: ≤ 2000 m above MSL. Pollution degree: 3. Degree of protection: IP68 / IP69K. Connection: AS-Interface/UAUX: cable piercing method, flat cable yellow/flat cable black Inputs: M12 round connector. Material: . HousingPBT PCMounting screwStainless steel 1.4305 / AISI 303: . Housing: PBT PC. Mounting screw: Stainless steel 1.4305 / AISI 303. Mass: 200 g. Tightening torque, housing screws: 1.8 Nm. Tightening torque, cable gland: 0.4 Nm. Dimensions: . Height35 mmDiameter85 mm: . Height: 35 mm. Diameter: 85 mm. Mounting: Mounting plate

Brand	Pepperl Fuchs
Lifecycle status	active
