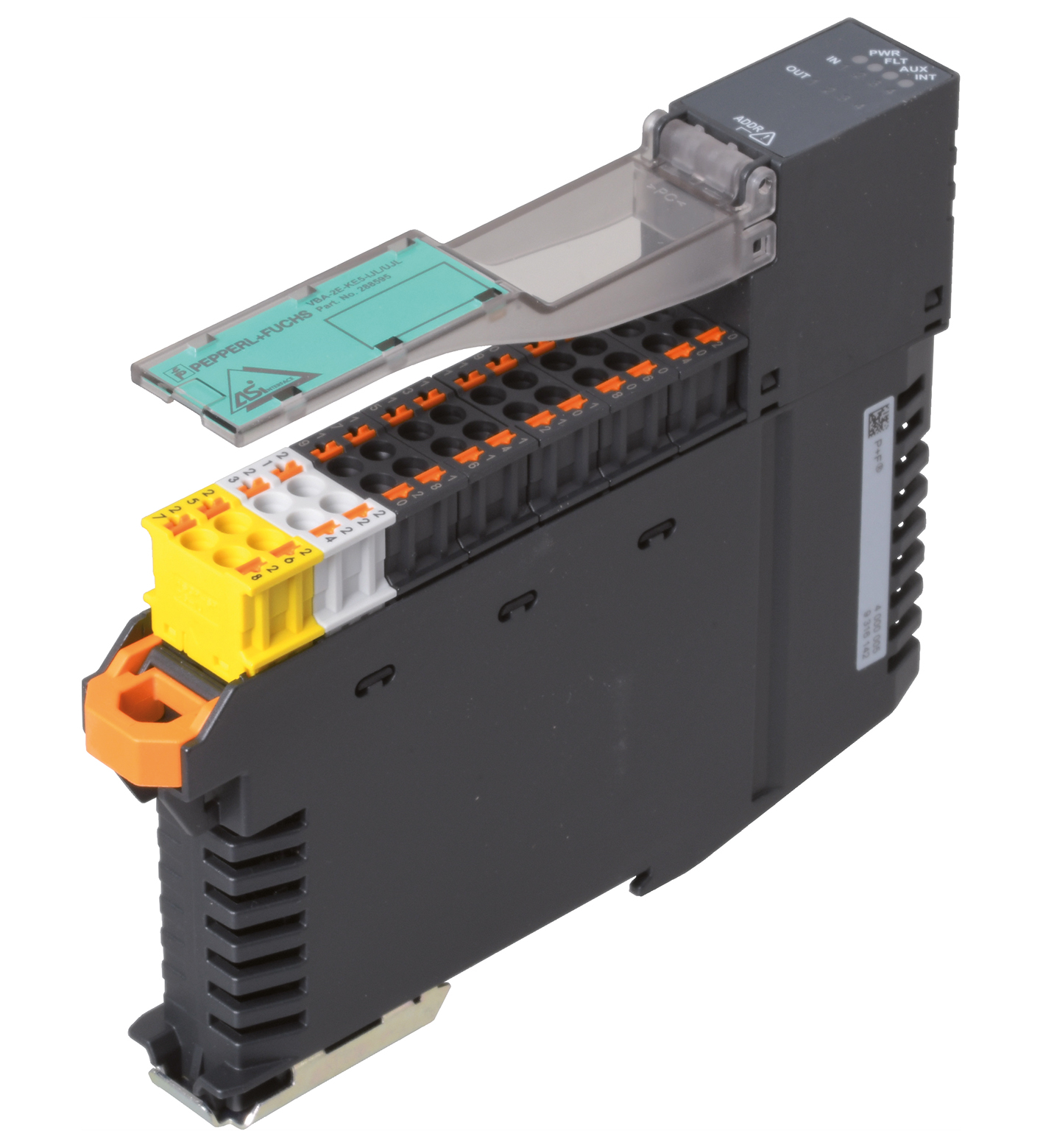

VBA-2E-KE5-IJL/UJL

AS-Interface analog module. Switch cabinet module, 2 analog Inputs. Node type: Standard node. AS-Interface specification: V3.0. Required gateway specification: ≥ V2.1. UL File Number: E223772. MTBF: 154 a. LED FAULT: Fault indication: red LEDRed: communication error or address is 0Red flashing: peripheral fault. LED INT: Internal input supply active; LED green. LED PWR: AS-Interface voltage; green LEDGreen: voltage OKFlashing green: address 0 or peripheral error. LED AUX: ext. auxiliary voltage UAUX; dual LED green/redgreen: voltage OKred: reverse voltage. LED IN: status of input signal; LED yellowoff: not activeon: signal within measuring rangeflashing: signal outside of measuring range. Auxiliary voltage (output): 20 ... 30 V DC PELV. Rated operating voltage: 26.5 ... 31.6 V from AS-Interface. Rated operating current: ≤ 70 mA (without sensors) / max. 200 mA. Protection class: III. Current consumption: IAUX ≤ 650 mA. Surge protection: UAUX, Ue: overvoltage category II, safe isolated power supplies (PELV). Number/Type: 2 analog inputsCurrent: 0 ... 20 mA/4 ... 20 mAvoltage: 0 ... 10 V. Supply: From AS-Interface (switch setting INT, default setting) or from auxiliary voltage UAUX (switch setting AUX). Current loading capacity: ≤ 100 mA from AS-Interface; overload and short-circuit resistant ≤ 600 mA From auxiliary voltage UAUX (AUX switch position) , overload and short-circuit protected. Input resistance: current input: max. 70 Ω voltage input: 100 kΩ. Accuracy: 0.1 % of input signal range at 25 °C (298 K). Resolution: 15 Bit. Temperature influence: 0.0025 %/K of input signal range. Temperature influence: 1 µA/K or 0,3 mV/K. Electromagnetic compatibility: . Directive 2014/30/EUEN 62026-2:2013: . Directive 2014/30/EU: EN 62026-2:2013. Degree of protection: EN 60529:2000. Fieldbus standard: EN 62026-2:2013. Emitted interference: EN 61000-6-4:2007. AS-Interface: EN 62026-2:2013. Noise immunity: EN 61000-6-2:2005, EN 61326-1:2006, EN 62026-2:2013. Profile: S-7.3.D. IO code: 7. ID code: 3. ID1 code: F. ID2 code: D. Data bits (function via AS-Interface): The transfer of the data value is based on AS-Interface Profile 7.3.. Parameter bits (programmable via AS-i): function. P050/60 Hz filterP0=1, enabledP0=0, disabledP1projecting of the 2nd channelP1=1, channel 2 is projectedP1=0, channel 2 is not projectedP2Indication of the peripheral fault by exceeding measuring rangeP2=1, peripheral fault is reportedP2=0, peripheral fault is not reportedP3P3=1, normal operating modeP3=0, both channels in current mode and without recognition of wire breakage: . P0: 50/60 Hz filterP0=1, enabledP0=0, disabled. P1: projecting of the 2nd channelP1=1, channel 2 is projectedP1=0, channel 2 is not projected. P2: Indication of the peripheral fault by exceeding measuring rangeP2=1, peripheral fault is reportedP2=0, peripheral fault is not reported. P3: P3=1, normal operating modeP3=0, both channels in current mode and without recognition of wire breakage. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Storage temperature: -25 ... 85 °C (-13 ... 185 °F). Relative humidity: 85 % , noncondensing. Climatic conditions: For indoor use only. Altitude: ≤ 2000 m above MSL. Shock and impact resistance: 15 g, 11 ms in 6 spatial directions, 3 shocks 10 g, 16 ms in 6 spatial directions, 1000 shocks. Vibration resistance: 0.35 mm 10 ... 57 Hz , 5 g 57 ... 150 Hz, 20 cycles. Pollution degree: 2. Degree of protection: IP20. Connection: Removable push-in terminalsrated connection capacity:rigid: 0.20 mm2 ... 1.5 mm2flexible (without wire end ferrule): 0.20 mm2 ... 2.5 mm2flexible (with wire end ferrule): 0.25 mm2 ... 1.5 mm2. Material: . HousingPA 66-FR: . Housing: PA 66-FR. Mass: 110 g. Dimensions: . Height100 mmWidth18.9 mmLength124 mm: . Height: 100 mm. Width: 18.9 mm. Length: 124 mm. Mounting: DIN mounting rail. Note: Max. length of jumpers = 5 cm

Brand	Pepperl Fuchs
Lifecycle status	active
