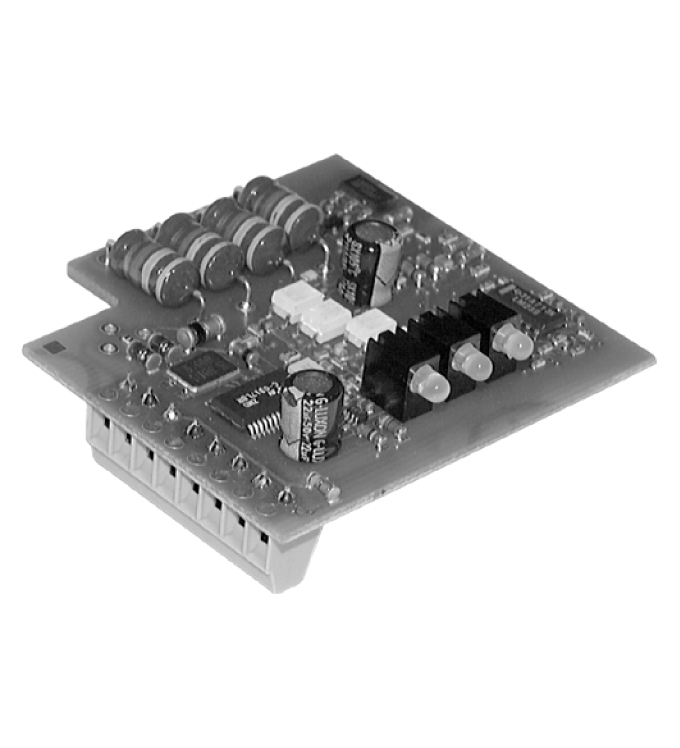

VBA-2E1A-CB-N/E2-S

AS-Interface printed circuit board. Printed circuit board module, 2 NAMUR inputs and 1 electronic output. Node type: A/B node. LED PWR/FAULT: dual LED green/redLED 1 green: AS-Interface voltage OKLED...

AS-Interface printed circuit board. Printed circuit board module, 2 NAMUR inputs and 1 electronic output. Node type: A/B node. LED PWR/FAULT: dual LED green/redLED 1 green: AS-Interface voltage OKLED 1 red: communication error or address is 0LED 1 green/red flashing: short-circuit or lead breakage. LED IN: 2 LEDs yellow;LED 2 yellow illuminated: switching state IN1 ON, otherwise OFFLED 3 yellow illuminated: switching state IN2 ON, otherwise OFF. Rated operating voltage: 26.5 ... 31.6 V from AS-Interface. Rated operating current: ≤ 40 mA (without sensors) / max. 150 mA. Protection class: III. Number/Type: 2 inputs for NAMUR Sensors. Supply: from AS-Interface. Voltage: 8 V. Input current: ≤ 8 mA (limited internally). Switching point: OFF ≤ 1.2 mAON ≥ 2.1 mA according to DIN EN 60947-5-6. Number/Type: 1 electronic output, switched low, overload and short-circuit proof, lead breakage and short-circuit monitored. Supply: from AS-Interface. Voltage: 21 ... 31 V. Current: max. 100 mA. Degree of protection: EN 60529:2000. AS-Interface: EN 62026-2:2013. Profile: S-D.A.E. IO code: D. ID code: A. ID1 code: 7. ID2 code: E. Data bits (function via AS-Interface): InputOutput. D0 - OUT1D1 - -D2 IN1 -D3 IN2 -: . D0: - OUT1. D1: - -. D2: IN1 -. D3: IN2 -. Parameter bits (programmable via AS-i): function. P0not usedP1not usedP2not usedP3not used: . P0: not used. P1: not used. P2: not used. P3: not used. Ambient temperature: -25 ... 60 °C (-13 ... 140 °F). Storage temperature: -25 ... 85 °C (-13 ... 185 °F). Degree of protection: IP20 (completely fitted) according to EN 60529. Connection: screw terminal strip max. conductor cross section 1 mm2. Mass: 20 g. Dimensions: . Height1.6 mmWidth55 mmLength51 mm: . Height: 1.6 mm. Width: 55 mm. Length: 51 mm
