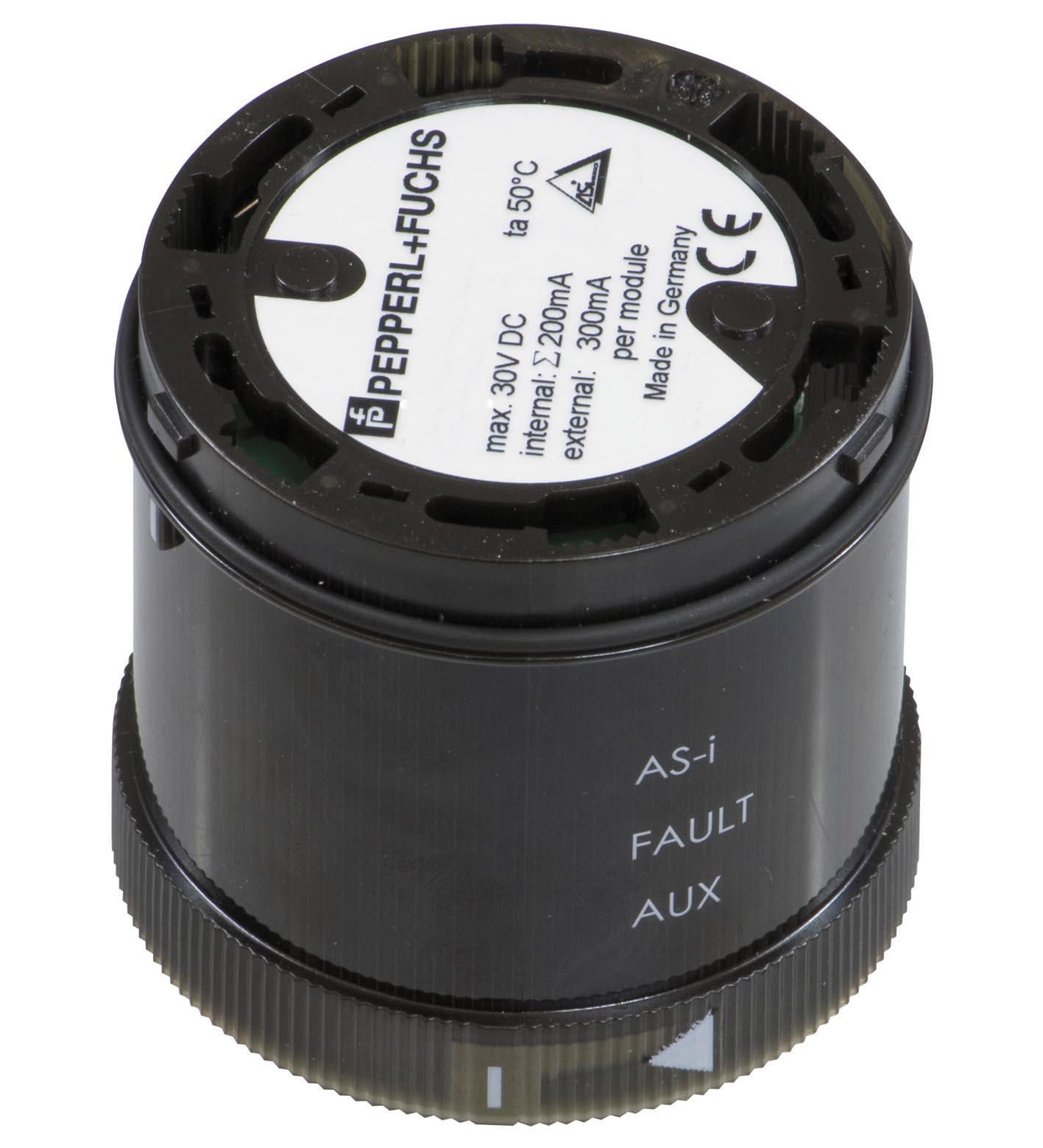

VBA-4A-70MM

AS-Interface stack light module. AS-Interface module for stack light. Node type: A/B node. AS-Interface specification: V3.0. Required gateway specification: ≥ V3.0. Profile: S-7.A.7. IO code7ID codeA:...

AS-Interface stack light module. AS-Interface module for stack light. Node type: A/B node. AS-Interface specification: V3.0. Required gateway specification: ≥ V3.0. Profile: S-7.A.7. IO code7ID codeA: . IO code: 7. ID code: A. UL File Number: E223176. MTTFd: 300 a. LED FAULT: communication error / address is 0; LED red. LED AS-i: AS-Interface voltage; LED green. LED AUX: ext. auxiliary voltage UAUX ; LED green. Auxiliary voltage (output): 20 ... 30 V DC PELV. Rated operating voltage: 26.5 ... 31.6 V from AS-Interface. Rated operating current: ≤ 235 mA. Number/Type: 4 semiconductor relay outputs. Supply: from AS-Interface or from external auxiliary voltage as required UAUX. Voltage: 21 ... 31 V. Current: AS-interface: ≤ 200 mA for the stack lightUAUX: ≤ 300 mA per light element. Ambient temperature: -20 ... 50 °C (-4 ... 122 °F). Degree of protection: IP65. Connection: Bayonet system. Dimensions: . Height70 mmDiameter70 mm: . Height: 70 mm. Diameter: 70 mm

Brand	Pepperl Fuchs
Lifecycle status	active
