VBA-4A-G11-I/U-F

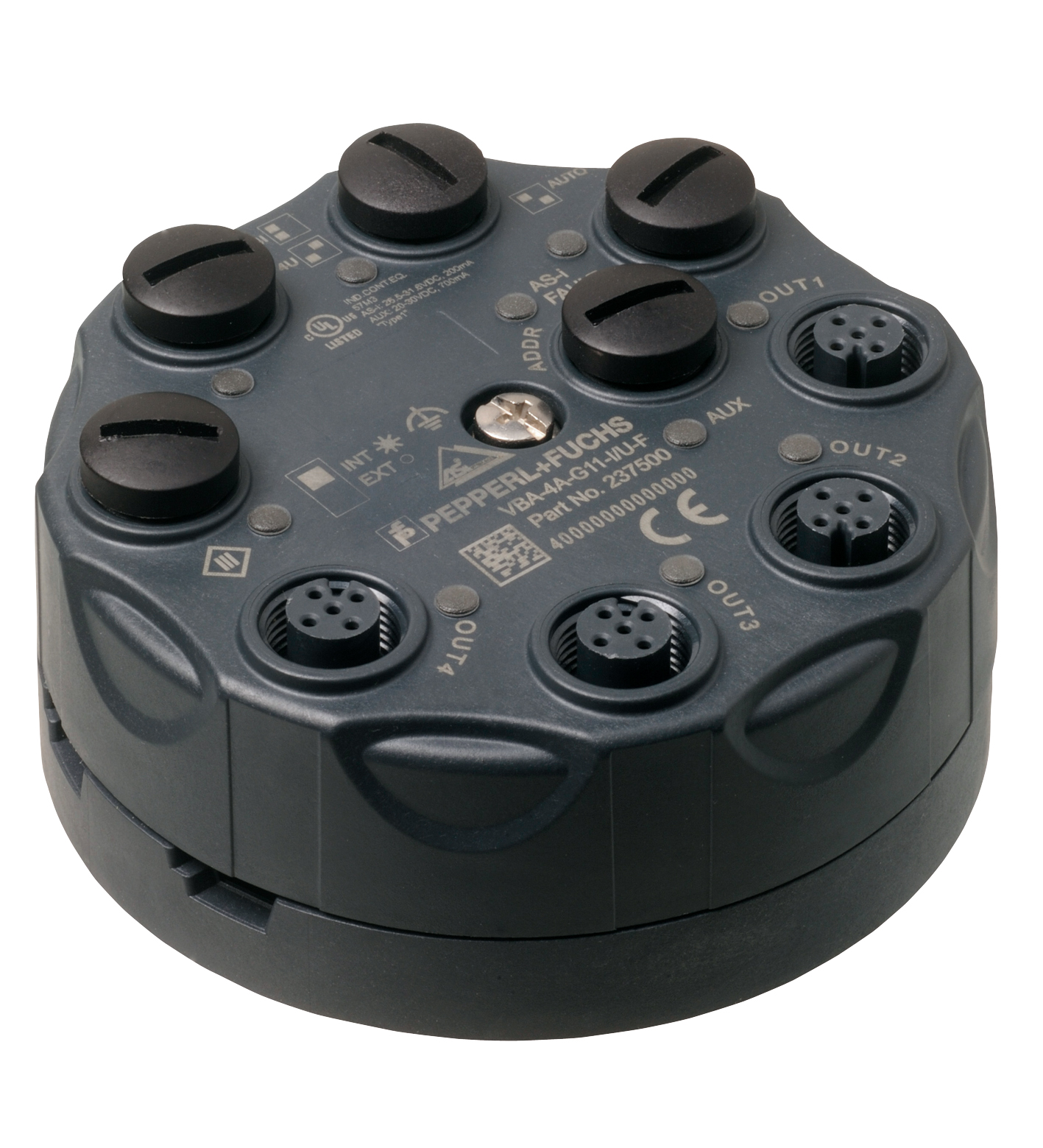

AS-Interface analog module. G11 analog module, 4 analog outputs. Node type: Standard node. AS-Interface specification: V3.0. Required gateway specification: ≥ V2.1. Profile: S-7.3.6. IO code7ID code3I...

AS-Interface analog module. G11 analog module, 4 analog outputs. Node type: Standard node. AS-Interface specification: V3.0. Required gateway specification: ≥ V2.1. Profile: S-7.3.6. IO code7ID code3ID1 codeFID2 code6: . IO code: 7. ID code: 3. ID1 code: F. ID2 code: 6. UL File Number: E223772. LED AS-i/FAULT: Status display; multi-colour LEDGreen: normal operationRed: communication faultFlashing yellow/red: address 0Flashing green/red: peripheral fault. LED ANALOG: Status of output signal; yellow LEDYellow: Output value within rangeYellow flashing: lead breakage (on current output) or output value out of range. LED AUX: ext. auxiliary voltage UAUX; dual LED green/redgreen: voltage OKred: reverse voltage. LED INT/EXT: status display output supply; LED greengreen: output supply from AS-Interfaceoff: output supply from auxiliary voltage. Auxiliary voltage (output): 24 V DC ± 15 % PELV. Rated operating voltage: 26.5 ... 31.6 V from AS-Interface. Rated operating current: ≤ 75 mA (without outputs) / max. 200 mA. Protection class: III. Surge protection: UAUX, Uin: Over voltage category III, safe isolated power supplies (PELV). Number/Type: 4 analog outputsCurrent: 0 ... 20 mAVoltage: 0 ... 10 V. Supply: from AS-Interface (switch position INT, default settings) or auxiliary voltage UEXT (switch position EXT). Load: voltage output: min. 1 kΩ current output: max. 600 Ω. Current loading capacity: ≤ 120 mA (signal current + actuator supply) from AS-Interface; overload and short-circuit protected≤ 700 mA (signal current + actuator supply) from external bulk power supply UAUX, overload and short-circuit protected. Resolution: Voltage output: 3 mVCurrent output: 6 µA. Accuracy: 0.15 % of full-scale value. Temperature influence: 1 µA/K or 0,3 mV/K. Short-circuit current: voltage output: max. 22 mA. Electromagnetic compatibility: . Directive 2014/30/EUEN 62026-2:2013: . Directive 2014/30/EU: EN 62026-2:2013. Degree of protection: EN 60529:2000. Fieldbus standard: EN 62026-2:2013. Emitted interference: EN 61000-6-4:2007. AS-Interface: EN 62026-2:2013. Noise immunity: EN 61000-6-2:2005, EN 61326-1:2006, EN 62026-2:2013. Ambient temperature: -25 ... 60 °C (-13 ... 140 °F). Storage temperature: -25 ... 85 °C (-13 ... 185 °F). Relative humidity: 85 % , noncondensing. Climatic conditions: For indoor use only. Altitude: ≤ 2000 m above MSL. Pollution degree: 3. Degree of protection: IP68 / IP69K. Connection: AS-Interface/UAUX: cable piercing method, flat cable yellow/flat cable black Outputs: M12 round connector. Material: . HousingPBT PCMounting screwStainless steel 1.4305 / AISI 303: . Housing: PBT PC. Mounting screw: Stainless steel 1.4305 / AISI 303. Mass: 200 g. Tightening torque, housing screws: 1.8 Nm. Tightening torque, cable gland: 0.4 Nm. Dimensions: . Height35 mmDiameter85 mm: . Height: 35 mm. Diameter: 85 mm. Mounting: Mounting plate

Brand	Pepperl Fuchs
Lifecycle status	active
