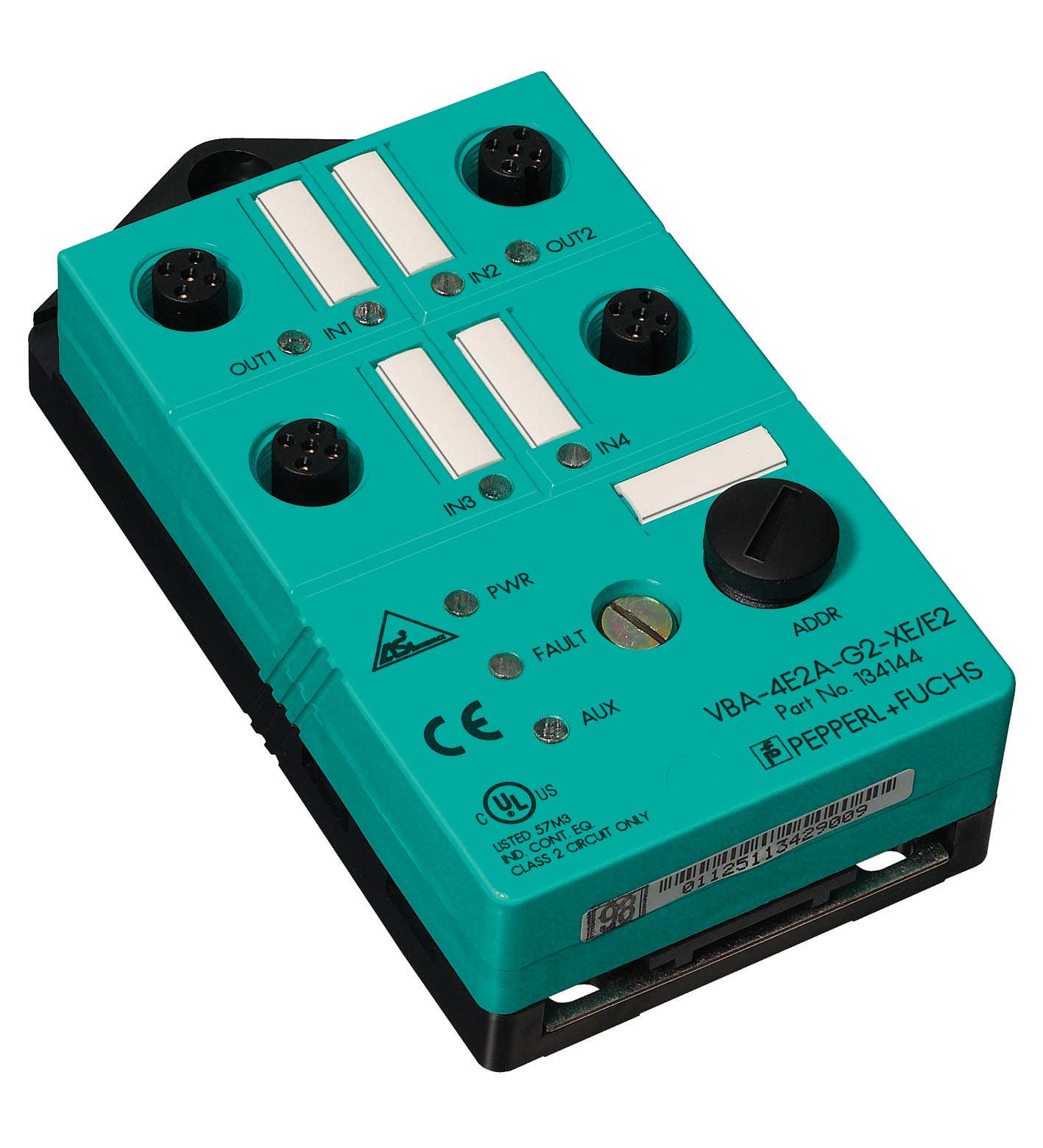

VBA-4E2A-G2-XE/E2

AS-Interface sensor/actuator module. G2 flat module, 4 inputs and 2 electronic outputs. Node type: A/B node. AS-Interface specification: V2.1. Required gateway specification: ≥ V2.1. UL File Number: E...

AS-Interface sensor/actuator module. G2 flat module, 4 inputs and 2 electronic outputs. Node type: A/B node. AS-Interface specification: V2.1. Required gateway specification: ≥ V2.1. UL File Number: E223772. LED FAULT: error display; LED redred: communication error or address is 0red flashing: overload of outputs. LED PWR: AS-Interface voltage; LED green. LED AUX: ext. auxiliary voltage UAUX ; LED green. LED IN: switching state (input); 4 LED yellow. LED OUT: Switching state (output); 2 LED yellow. Auxiliary voltage (output): 20 ... 30 V DC PELV. Rated operating voltage: 26.5 ... 31.6 V from AS-Interface. Rated operating current: ≤ 30 mA. Protection class: III. Current loading capacity: 2 A (IAUX). Surge protection: UAUX, Uin: Over voltage category III, safe isolated power supplies (PELV). Number/Type: 4 inputs for mechanical contacts or 3-wire sensors (PNP), DC. Supply: from external auxiliary voltage UAUX. Input current: 3 mA (typically). Switching point: according to DIN EN 61131-2 (type 1). 0 (unattenuated)≤ 0.5 mA1 (attenuated)≥ 2 mA: . 0 (unattenuated): ≤ 0.5 mA. 1 (attenuated): ≥ 2 mA. Signal delay: < 2 ms (input/AS-Interface). Signal frequency: ≤ 250 Hz. Number/Type: 2 electronic outputs, PNP, overload and short-circuit proof. Supply: from external auxiliary voltage UAUX. Voltage: ≥ (UAUX - 0.5 V). Current: 1 A per output , 2 A per module. Usage category: DC-13. Input/Output: none. Input/AS-Interface: Basic insulation, rated insulation voltage 120 V DC. Output/AS-Interface: Basic insulation, rated insulation voltage 120 V DC. Electromagnetic compatibility: observe notices on the certificate of conformity.. Directive 2014/30/EUEN 62026-2:2013: . Directive 2014/30/EU: EN 62026-2:2013. Galvanic isolation: EN 60947-1:2007. Degree of protection: EN 60529:2000. Mech. capacity: EN 60068-2-6:2008, EN 60068-2-27:1995. Input: EN 61131-2:2007. Usage category: EN 60947-5-1:2005. Emitted interference: EN 61000-6-4:2001. AS-Interface: EN 62026-2:2013. Noise immunity: EN 61326-1:2006. Profile: S-7.A.E. IO code: 7. ID code: A. ID1 code: 7. ID2 code: E. Data bits (function via AS-Interface): InputOutput. D0 IN1 O1D1 IN2 O2D2 IN3 -D3 IN4 -: . D0: IN1 O1. D1: IN2 O2. D2: IN3 -. D3: IN4 -. Parameter bits (programmable via AS-i): function. P0not usedP1not usedP2not usedP3not used: . P0: not used. P1: not used. P2: not used. P3: not used. Ambient temperature: -25 ... 60 °C (-13 ... 140 °F). Storage temperature: -25 ... 85 °C (-13 ... 185 °F). Relative humidity: 85 % , noncondensing. Climatic conditions: For indoor use only. Altitude: ≤ 2000 m above MSL. Pollution degree: 3. Degree of protection: IP67. Connection: Cable piercing methodflat cable yellow/flat cable blackinputs/outputs: M12 round connector. Material: . HousingPBT: . Housing: PBT. Mass: approx. 100 g. Tightening torque, cable gland: 0.4 Nm. Mounting: Mounting plate
