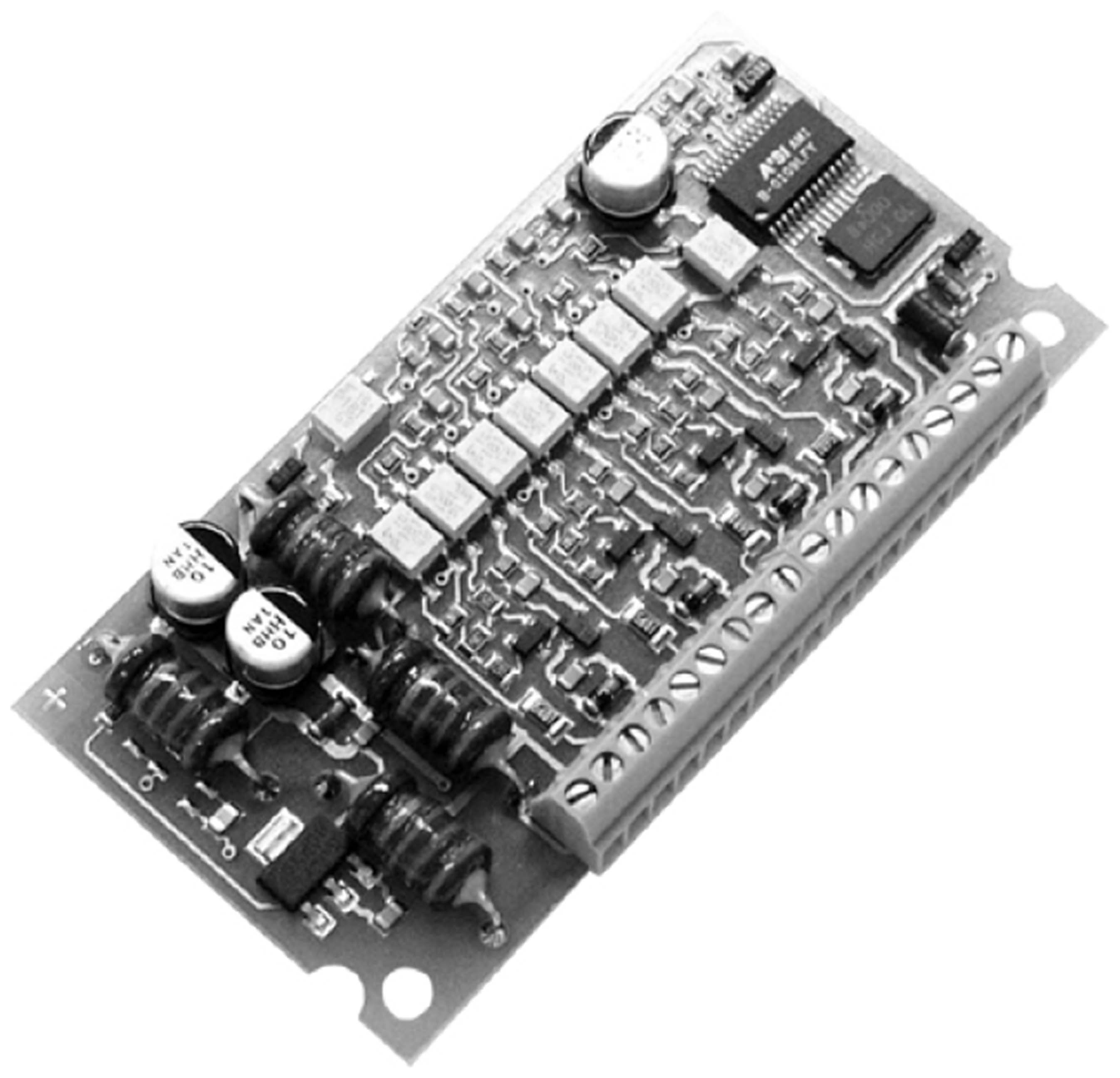

VBA-4E3A-CB-E/E2-S

AS-Interface printed circuit board. Printed circuit board module 4 inputs / 3 outputs. Node type: A/B node. AS-Interface specification: V2.1. Required gateway specification: ≥ V2.0. Rated operating v...

AS-Interface printed circuit board. Printed circuit board module 4 inputs / 3 outputs. Node type: A/B node. AS-Interface specification: V2.1. Required gateway specification: ≥ V2.0. Rated operating voltage: 26.5 ... 31.6 V from AS-Interface. Rated operating current: ≤ 20 mA (without sensors). Protection class: III. Number/Type: Four inputs for mechanical contacts, two-wire and three-wire sensors. Supply: from AS-Interface. Voltage: 21 ... 31 V. Input current: ≤ 8 mA (limited internally). Switching point: Uin < 2 V: aus> Uin > 10 V: on. Number/Type: 3 electronic outputs, PNP. Supply: from AS-Interface. Voltage: 21 ... 31 V. Current: ≤ 80 mA per output, ≤ 80 mA total. Profile: S-7.A.E. IO code: 7. ID code: A. ID2 code: E. Data bits (function via AS-Interface): InputOutput. D0 IN1 OUT1D1 IN2 OUT2D2 IN3 OUT3D3 IN4 -: . D0: IN1 OUT1. D1: IN2 OUT2. D2: IN3 OUT3. D3: IN4 -. Parameter bits (programmable via AS-i): function. P0not usedP1not usedP2not usedP3not used: . P0: not used. P1: not used. P2: not used. P3: not used. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Storage temperature: -40 ... 70 °C (-40 ... 158 °F). Degree of protection: IP20 (completely fitted) according to EN 60529. Connection: screw terminal strip. Dimensions: . Width37.5 mmLength72.5 mm: . Width: 37.5 mm. Length: 72.5 mm

Brand	Pepperl Fuchs
Lifecycle status	active
