VBA-4E3A-G2-ZA/EA2

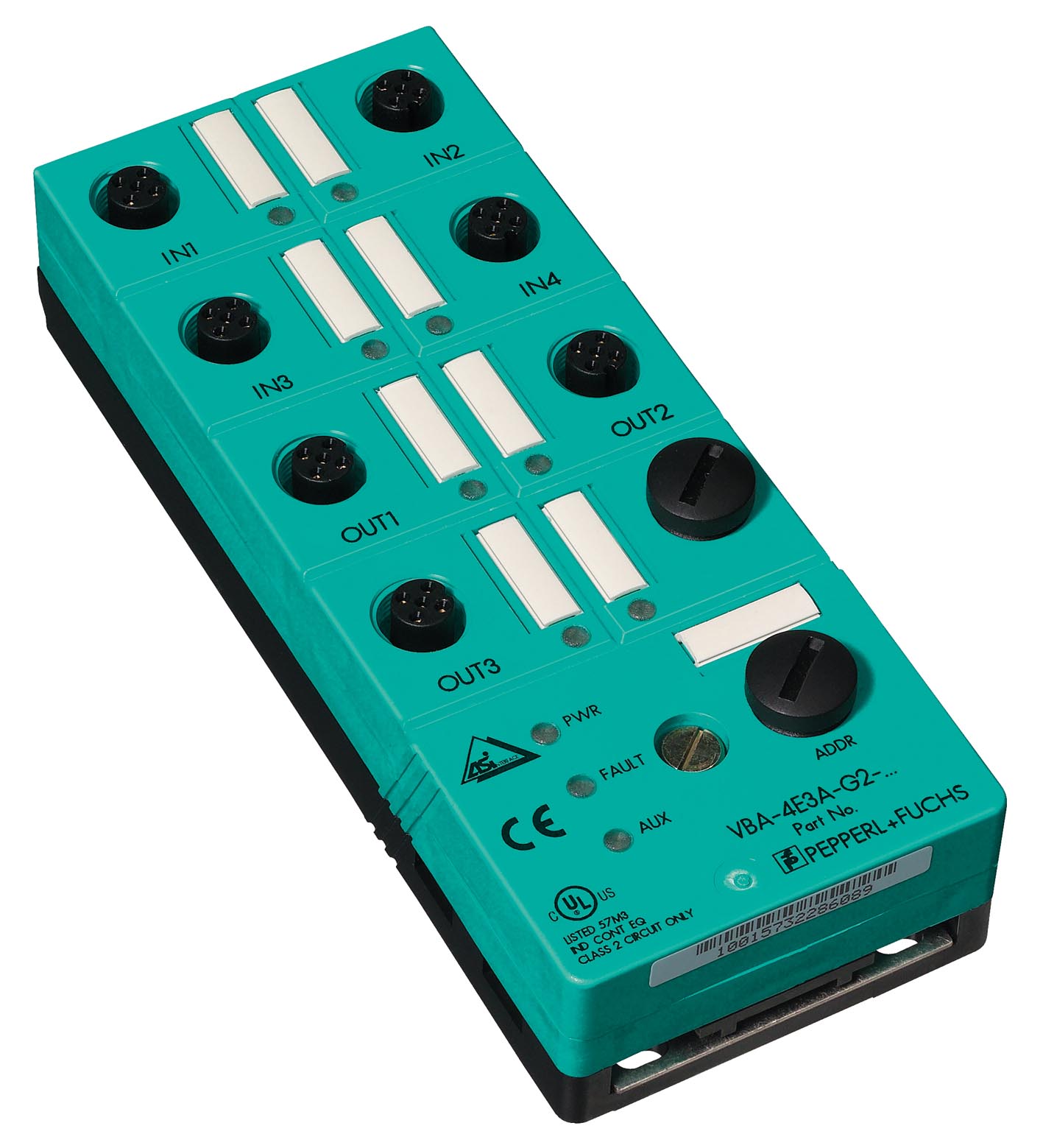

AS-Interface sensor/actuator module. G2 flat module, 4 inputs (PNP) and 3 electronic outputs. Node type: A/B node. AS-Interface specification: V3.0. Required gateway specification: ≥ V2.1. Profile: S-...

AS-Interface sensor/actuator module. G2 flat module, 4 inputs (PNP) and 3 electronic outputs. Node type: A/B node. AS-Interface specification: V3.0. Required gateway specification: ≥ V2.1. Profile: S-7.A.2. IO code7ID codeAID1 code7ID2 code2: . IO code: 7. ID code: A. ID1 code: 7. ID2 code: 2. UL File Number: E223772. LED FAULT: error display; LED redred: communication error or address is 0red flashing: overload of sensor power supply or outputs. LED PWR: AS-Interface voltage; LED green. LED AUX: ext. auxiliary voltage UAUX ; LED green. LED IN: switching state (input); 4 LED yellow. LED OUT: Switching state (output); 3 LED yellow. Auxiliary voltage (output): 20 ... 30 V DC PELV(protection class 3 according to VDE 0106/IEC 364-4-41). Rated operating voltage: 26.5 ... 31.6 V from AS-Interface. Rated operating current: ≤ 40 mA (without sensors) / max. 240 mA. Protection class: III. Surge protection: UAUX, Uin: Over voltage category III, safe isolated power supplies (PELV). Number/Type: 4 inputs for 2- or 3-wire sensors (PNP), DC option 2 inputs for 4-wire sensors (PNP), DC. Supply: from AS-Interface. Voltage: 21 ... 31 V. Current loading capacity: ≤ 200 mA (TB ≤ 40 °C),≤ 150 mA (TB ≤ 60 °C), overload-proof and short-circuit protected. Input current: ≤ 9 mA (limited internally). Switching point: according to DIN EN 61131-2 (Type 2). 0 (unattenuated)≤ 3 mA1 (attenuated)≥ 5 mA: . 0 (unattenuated): ≤ 3 mA. 1 (attenuated): ≥ 5 mA. Number/Type: 3 electronic outputs, PNP, overload and short-circuit proof. Supply: from external auxiliary voltage UAUX. Voltage: ≥ (UAUX - 0.5 V). Current: 4 A total,OUT 1, OUT 2: 2 A per output,OUT 3: 1.5 A. Electromagnetic compatibility: . Directive 2014/30/EUEN 62026-2:2013 EN 61000-6-2:2001 EN 61000-6-4:2001: . Directive 2014/30/EU: EN 62026-2:2013 EN 61000-6-2:2001 EN 61000-6-4:2001. Degree of protection: EN 60529:2000. Fieldbus standard: EN 62026-2:2013. Input: EN 61131-2:2007. Emitted interference: EN 61000-6-4:2001. AS-Interface: EN 62026-2:2013. Noise immunity: EN 61000-6-2:2001. Ambient temperature: -25 ... 60 °C (-13 ... 140 °F). Storage temperature: -25 ... 85 °C (-13 ... 185 °F). Relative humidity: 85 % , noncondensing. Climatic conditions: For indoor use only. Altitude: ≤ 2000 m above MSL. Pollution degree: 3. Degree of protection: IP67. Connection: Cable piercing methodflat cable yellow/flat cable blackinputs/outputs: M12 round connector. Material: . HousingPBT: . Housing: PBT. Mass: 150 g. Tightening torque, cable gland: 0.4 Nm. Mounting: Mounting plate

Brand	Pepperl Fuchs
Lifecycle status	active
