VBA-4E3A-G20-ZEL/E2L-P11

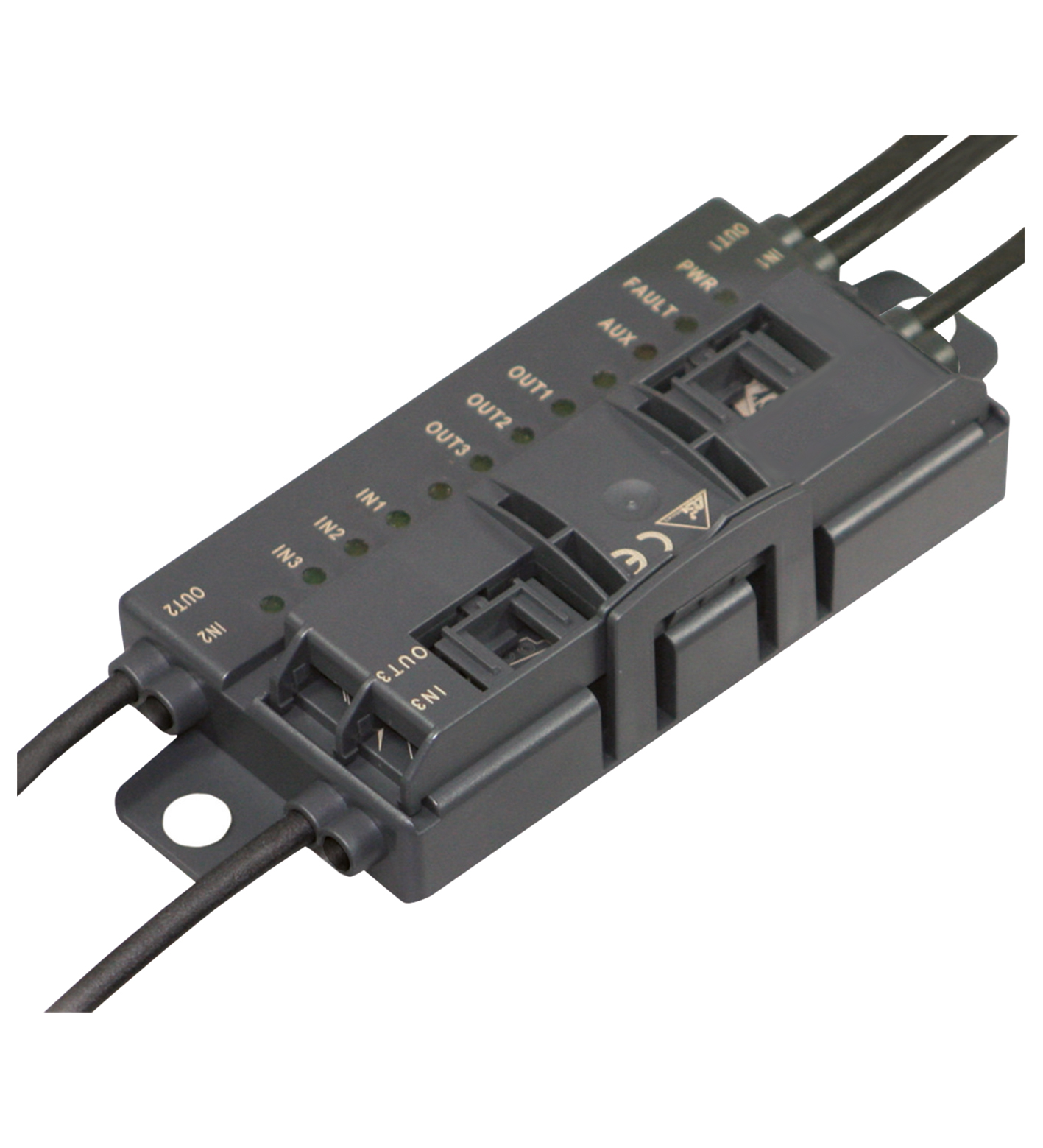

ASi I/O Module. G20 module with AS-Interface for digital inputs/outputs, 4 inputs and 3 outputs. Node type: A/B node. AS-Interface specification: V3.0. Required gateway specification: ≥ V2.1. Profile:...

ASi I/O Module. G20 module with AS-Interface for digital inputs/outputs, 4 inputs and 3 outputs. Node type: A/B node. AS-Interface specification: V3.0. Required gateway specification: ≥ V2.1. Profile: S-7.A.E. IO code7ID codeAID1 code7ID2 codeE: . IO code: 7. ID code: A. ID1 code: 7. ID2 code: E. UL File Number: E223772 "For use in NFPA 79 Applications only". MTBF: 110 a. LED FAULT: error display; LED redred: communication error or address is 0red flashing: overload of sensor power supply or overload of outputs or external auxiliary voltage UAUX missing. LED PWR: AS-Interface voltage; green LEDgreen: voltage OKflashing green: address 0 or overload of sensor power supply or overload of outputs or external auxiliary voltage UAUX missing. LED AUX: ext. auxiliary voltage UAUX; dual LED green/redgreen: voltage OKred: reverse voltage. LED IN: switching state (input); 4 LED yellow. LED OUT: Switching state (output); 3 LED yellow. Auxiliary voltage (output): 20 ... 30 V DC PELV. Rated operating voltage: 26.5 ... 31.6 V from AS-Interface. Rated operating current: ≤ 35 mA. Number/Type: 4 Inputs for 3-wire sensors (PNP), DC. Supply: from external auxiliary voltage UAUX. Current loading capacity: 500 mA , overload and short-circuit protected. Input current: ≤ 8 mA (limited internally). Switching point: according to DIN EN 61131-2 0 (undamped) ≤ 0.5 mA1 (damped) ≥ 2.0 mA. Signal delay: < 1 ms (input/AS-Interface). Number/Type: 3 electronic outputs, PNP, overload and short-circuit proof. Supply: from external auxiliary voltage UAUX. Voltage: ≥ (UAUX - 0.5 V). Current: 2 A per output TB ≤ 40 °C: 6 A total TB ≤ 60 °C: OUT1+OUT2 max. 3 A, OUT3 max. 2 A. Electromagnetic compatibility: . Directive 2014/30/EUEN 62026-2:2013: . Directive 2014/30/EU: EN 62026-2:2013. Degree of protection: EN 60529:2000. Fieldbus standard: EN 62026-2:2013. Input: EN 61131-2:2007. Emitted interference: EN 61000-6-4:2007. AS-Interface: EN 62026-2:2013. Noise immunity: EN 61000-6-2:2005, EN 61326-1:2006, EN 62026-2:2013. Ambient temperature: -25 ... 60 °C (-13 ... 140 °F). Storage temperature: -30 ... 85 °C (-22 ... 185 °F). Degree of protection: IP54 according to EN 60529. Connection: AS-Interface, AUX: Insulation piercing technologyYellow flat cable/black flat cableInputs/outputs: M12 round plug connector in accordance with EN 61076-2-101Inputs: LF type (4-pin, bushing contacts, screw lock, A-coded)Matching connector: LM type or similarOutputs: LF type (4-pin, bushing contacts, screw lock, A-coded)Matching connector: LM type or similar. Mass: 260 g. Mounting: 2 clips with ∅ 8 mm drill hole. Cable length: 0.7 m (Inputs) , 1.5 m (X1, X2). Note: The flat cable routing is designed for 100 actuation cycles

Brand	Pepperl Fuchs
Lifecycle status	active
