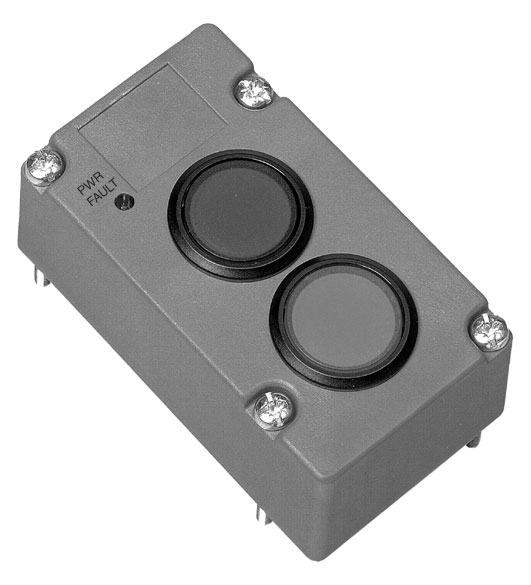

VBA-LT2-G1

AS-Interface luminous push-button module. Illuminated pushbutton module. Node type: A/B node. AS-Interface specification: V2.11. Required gateway specification: ≥ V2.1. Profile: S-B.A.E. IO codeBID co...

AS-Interface luminous push-button module. Illuminated pushbutton module. Node type: A/B node. AS-Interface specification: V2.11. Required gateway specification: ≥ V2.1. Profile: S-B.A.E. IO codeBID codeAID2 codeE: . IO code: B. ID code: A. ID2 code: E. LED PWR/FAULT: dual-LED green/redgreen: AS-Interface voltage, normal operationred: communication error or address 0. Button: 2 integrated,protected against accidental activation,keys can be individually labelled,labeling field on the module. Rated operating voltage: 26.5 ... 31.6 V from AS-Interface. Rated operating current: ≤ 50 mA (LEDs on). Protection class: III. Electromagnetic compatibility: EN 50295. Degree of protection: EN 60529:2000. AS-Interface: EN 62026-2:2013. Ambient temperature: -25 ... 60 °C (-13 ... 140 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Degree of protection: IP67 according to EN 60529. Connection: cable piercing method or terminal compartmentflat cable or standard round cable

Brand	Pepperl Fuchs
Lifecycle status	active
