Pepperl Fuchs

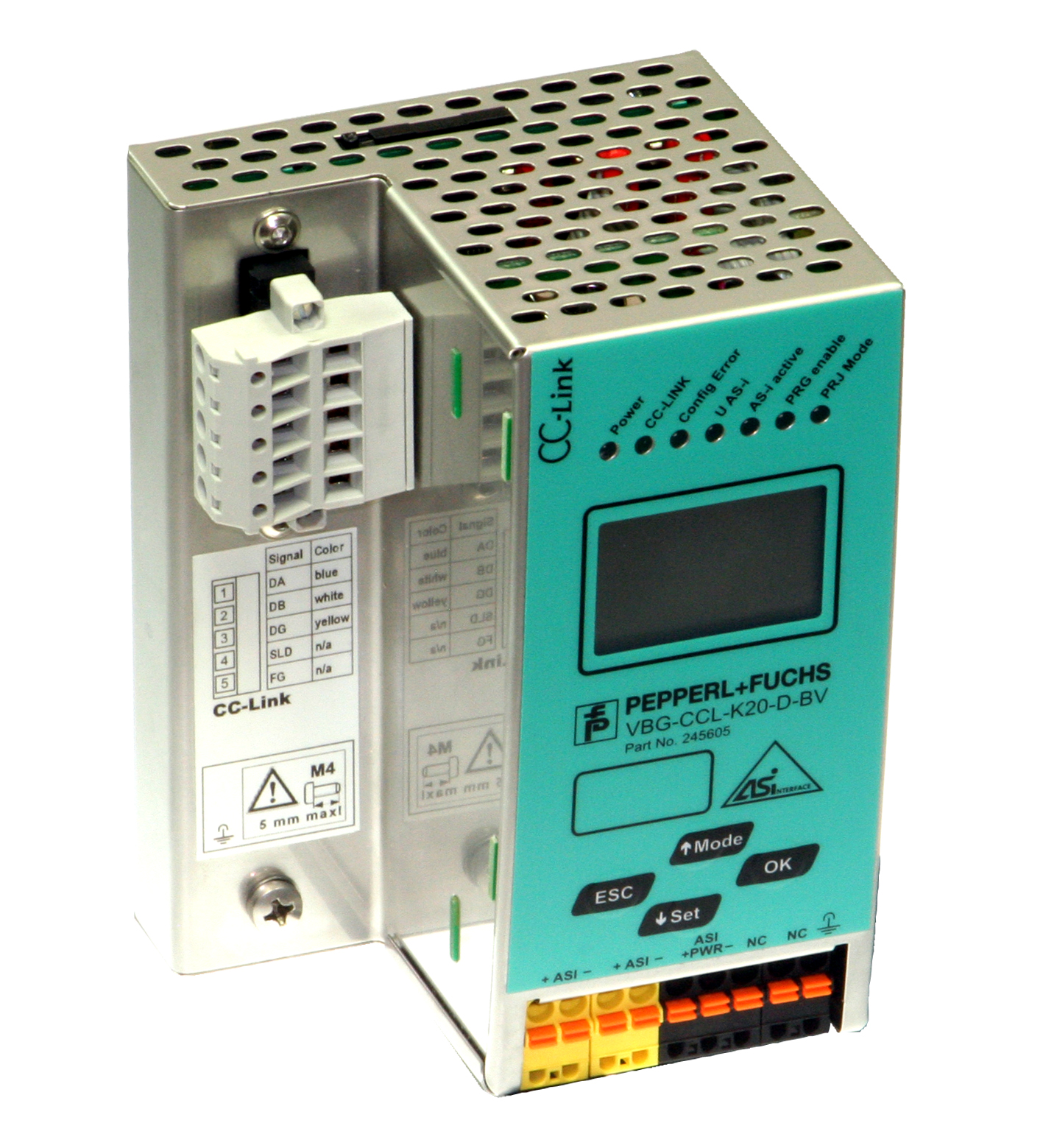

VBG-CCL-K20-D-BV

AS-Interface gateway. CC-Link gateway. AS-Interface specification: V3.0. Earth fault detection: integrated. EMC monitoring: integrated. UL File Number: E223772. Display: Illuminated graphical LC display for addressing and error messages. LED AS-i ACTIVE: AS-Interface operation normal; LED green. LED CONFIG ERR: configuration error; LED red. LED PRG ENABLE: Automatic addressing active; LED green. LED POWER: voltage ON; LED green. LED PRJ MODE: Configuration mode active; LED yellow. LED U AS-i: AS-Interface voltage; LED green. LED CC-Link: CC link in operation; LED green CC Link error; LED red. Button: 4. Switch SET: Selection and setting of a slave address. OK button: Mode selection traditional-graphical/confirmation. Button MODE: Mode selection PRJ-operation/save configuration/cursor. ESC button: Mode selection traditional-graphical/cancel. Insulation voltage: ≥ 500 V. Rated operating voltage: from AS-Interface 30 V DC. Rated operating current: ≤ 200 mA from AS-Interface. Interface type: Remote device, 3 occupied stations. Protocol: according to CC-Link specification. Transfer rate: 156 Bit/s up to 10 MBit/s. AS-Interface: spring terminals, removable. CC Link: 5-pin screw terminal. Electromagnetic compatibility: . Directive 2014/30/EUEN 62026-2:2013 EN 61000-6-2:2006, EN 61000-6-4:2007: . Directive 2014/30/EU: EN 62026-2:2013 EN 61000-6-2:2006, EN 61000-6-4:2007. Degree of protection: EN 60529:2000. AS-Interface: EN 62026-2:2013. Ambient temperature: 0 ... 55 °C (32 ... 131 °F). Storage temperature: -25 ... 85 °C (-13 ... 185 °F). Degree of protection: IP20. Material: . HousingStainless steel: . Housing: Stainless steel. Mass: 520 g. Dimensions: . Height120 mmWidth85 mmLength83 mm: . Height: 120 mm. Width: 85 mm. Length: 83 mm. Construction type: Low profile housing , Stainless steel

Brand	Pepperl Fuchs
Lifecycle status	active

Not currently in stock

Price on request

Request sourcing Ask a question
