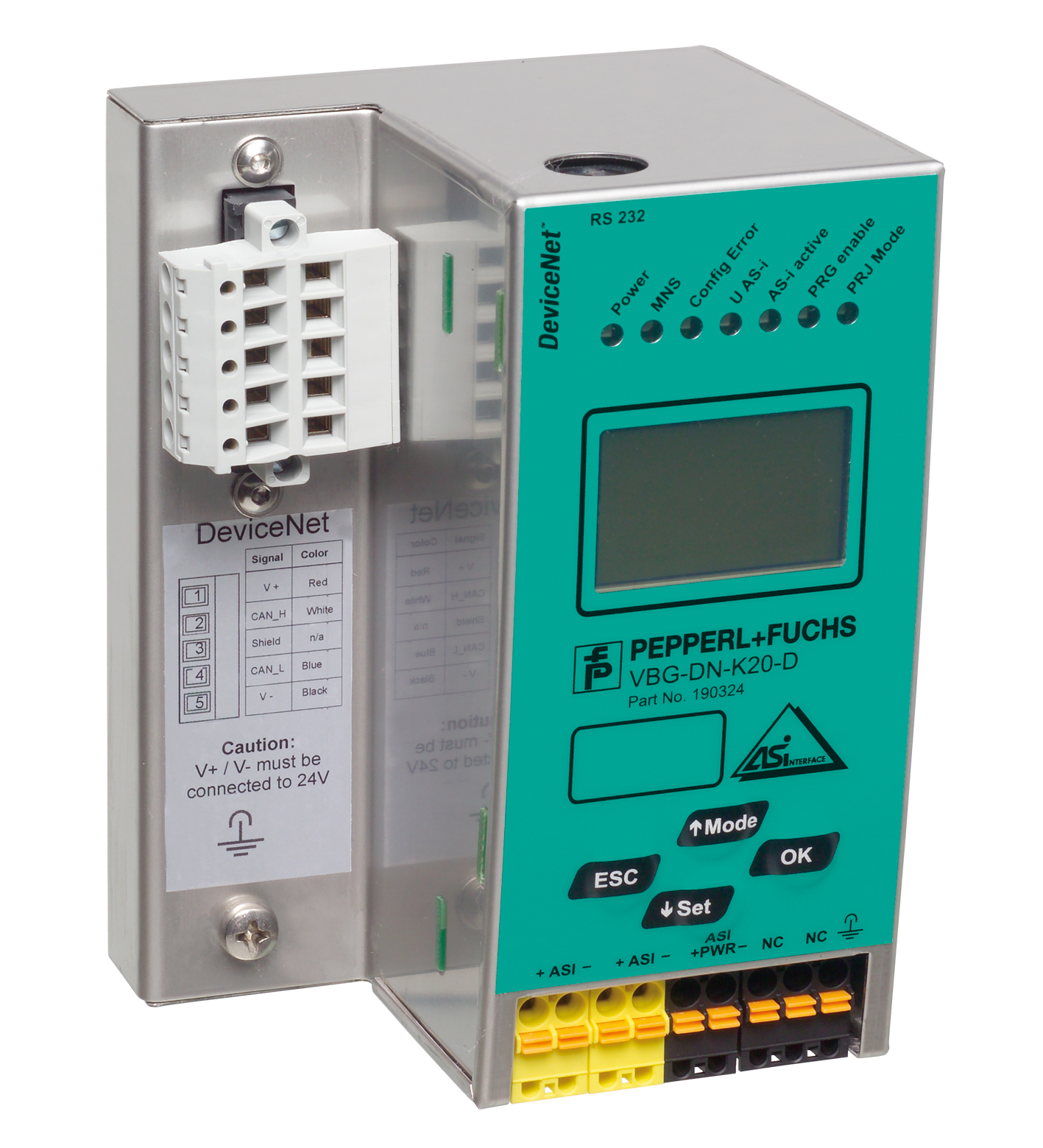

VBG-DN-K20-D
AS-Interface gateway. DeviceNet Gateway. AS-Interface specification: V3.0. PLC-Functionality: activateable. Duplicate address detection: from AS-Interface slaves. Earth fault detection: integrated. EM...
AS-Interface gateway. DeviceNet Gateway. AS-Interface specification: V3.0. PLC-Functionality: activateable. Duplicate address detection: from AS-Interface slaves. Earth fault detection: integrated. EMC monitoring: integrated. Diagnostics function: Extended function via display. UL File Number: E223772 only from low voltage, limited energy source (SELV or PELV) or listed Class 2 source. Display: Illuminated graphical LC display for addressing and error messages. LED AS-i ACTIVE: AS-Interface operation normal; LED green. LED CONFIG ERR: configuration error; LED red. LED PRG ENABLE: autom. programming; LED green. LED POWER: voltage ON; LED green. LED PRJ MODE: projecting mode active; LED yellow. LED U AS-i: AS-Interface voltage; LED green. LED MNS: Module/net status; LED green/red. Switch SET: Selection and setting of a slave address. OK button: Mode selection traditional-graphical/confirmation. Button MODE: Mode selection PRJ-operation/save configuration/cursor. ESC button: Mode selection traditional-graphical/cancel. Insulation voltage: ≥ 500 V. Rated operating voltage: from AS-Interface. Rated operating current: ≤ 200 mA from AS-Interface. Protocol: DeviceNet. Interface type: RS 232, serial Diagnostic Interface. Transfer rate: 19,2 kBit/s. AS-Interface: spring terminals, removable. DeviceNet: 5-pin CombiCon connector according to DeviceNet specification. Electromagnetic compatibility: . Directive 2014/30/EUEN 62026-2:2013: . Directive 2014/30/EU: EN 62026-2:2013. Electromagnetic compatibility: EN 61000-6-2:2005, EN 61000-6-4:2001, EN 50295:1999. Degree of protection: EN 60529:2000. AS-Interface: EN 62026-2:2013. Shock resistance: EN 61131-2. UL approval: An isolated source with a secondary open circuit voltage of ≤ 30 VDC with a 3 A maximum over current protection. Over current protection is not required when a Class 2 source is employed. UL mark does not provide UL certification for any functional safety rating or aspects of the device.. Ambient temperature: 0 ... 55 °C (32 ... 131 °F). Storage temperature: -25 ... 85 °C (-13 ... 185 °F). Degree of protection: IP20. Mass: 520 g. Dimensions: . Height120 mmWidth85 mmLength76 mm: . Height: 120 mm. Width: 85 mm. Length: 76 mm. Construction type: Low profile housing , Stainless steel
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
