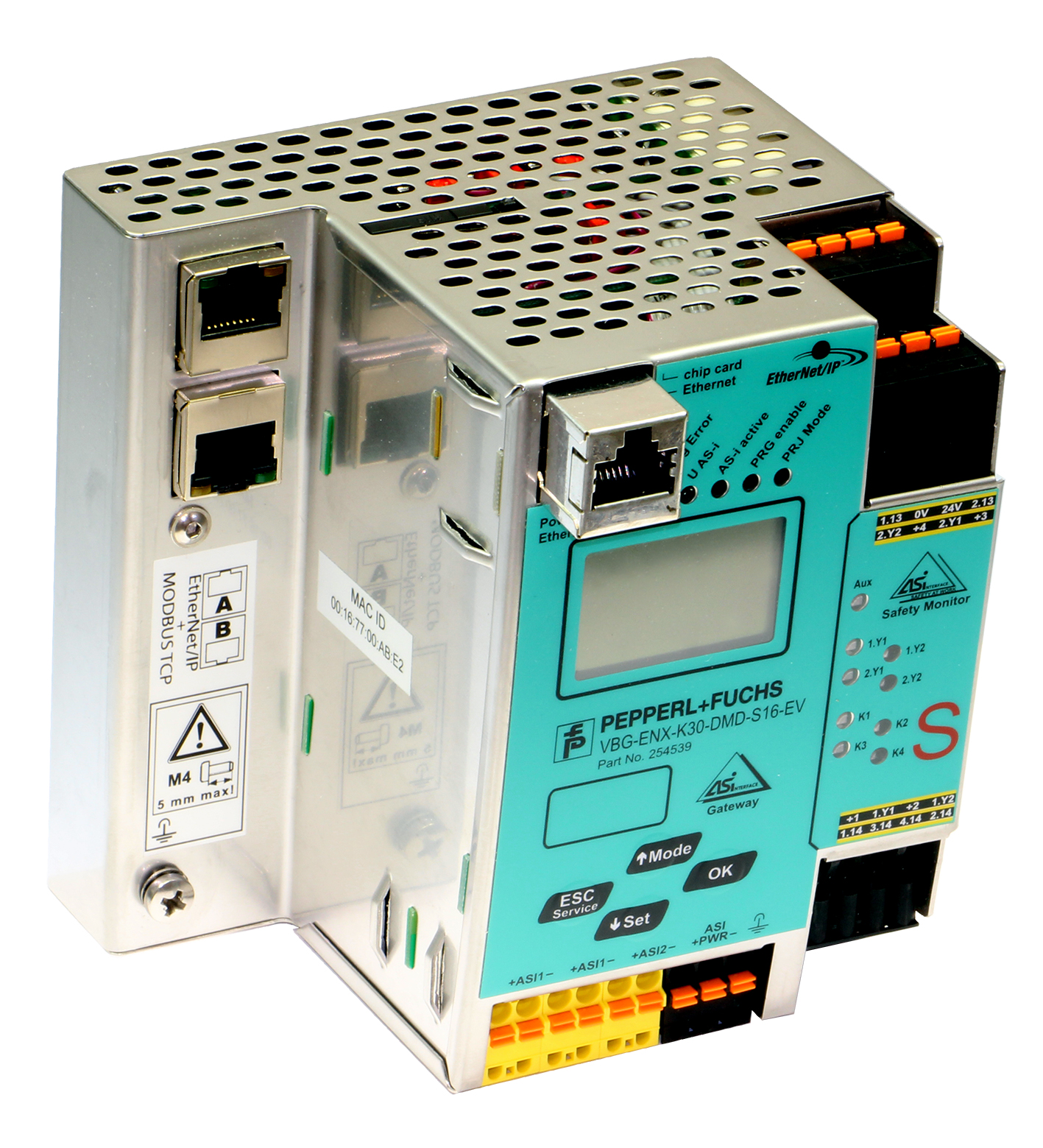

VBG-ENX-K30-DMD-S16-EV

AS-Interface Gateway/Safety Monitor. EtherNet/IP und Modbus TCP gateway with integrated safety monitor, double master for 2 AS-Interface networks, power supply input with data decoupling. AS-Interface specification: V3.0. PLC-Functionality: activateable. Duplicate address detection: from AS-Interface slaves. Earth fault detection: integrated. EMC monitoring: integrated. Diagnostics function: Extended function via display. Data decoupling: integrated. Switch-on delay: < 10 s. Response delay: < 40 ms. UL File Number: E223772 only from low voltage, limited energy source (SELV or PELV) or listed Class 2 source. Safety Integrity Level (SIL): SIL 3. Performance level (PL): PL e. MTTFd: 200 a. B10d: 2 E+7. Display: Illuminated graphical LC display for addressing and error messages. LED ETHERNET: ethernet active; LED green. LED AS-i ACTIVE: AS-Interface operation normal; LED green. LED CONFIG ERR: configuration error; LED red. LED PRG ENABLE: autom. programming; LED green. LED POWER: voltage ON; LED green. LED PRJ MODE: projecting mode active; LED yellow. LED U AS-i: AS-Interface voltage; LED green. LED AUX: ext. auxiliary voltage UAUX ; LED green. LED EDM/Start: External device monitoring circuit inputs closed, 4x yellow LEDs. LED output circuit: Output circuit closed; 4 x green LEDs. Button: 4. Switch SET: Selection and setting of a slave address. OK button: Mode selection traditional-graphical/confirmation. Button MODE: Mode selection PRJ-operation/save configuration/cursor. ESC button: Mode selection traditional-graphical/cancel. Insulation voltage: ≥ 500 V. Rated operating voltage: 26.5 ... 31.6 V from AS-Interface; Output K3 and K4 24 V DC. Rated operating current: ≤ 300 mA from AS-Interface. Power supply: max. 4 A per AS-Interface circuit. Interface type: 2 x RJ-45. Protocol: EtherNet/IP + MODBUS TCP/IP acc. to IEEE 802.3 supports device level ring protocol DLR. Transfer rate: 10 MBit/s / 100 MBit/s , Automatic baud rate detection. Interface type: Ethernet: RJ-45 Diagnostic Interface. Transfer rate: 10 MBit/s. Interface type: Chip card slot. Number/Type: 4 EDM/Start inputs:EDM: Inputs for the external device monitoring circuitsStart: start inputs:Static switching current 4 mA at 24 V, dynamic 30 mA at 24 V (T=100 μs). Safety output: Output circuits 1 and 2: 2 potential-free contacts,max. contact load:3 ADC-13 at 30 VDC,3 AAC-15 at 30 VACOutput circuits 3 and 4: 2 PNP transistor outputsmax. contact load:0.5 ADC-13 at 30 VDC. Ethernet: RJ-45. AS-Interface: spring terminals, removable. Electromagnetic compatibility: . Directive 2014/30/EUEN 62026-2:2013 EN 61000-6-2:2005, EN 61000-6-4:2007: . Directive 2014/30/EU: EN 62026-2:2013 EN 61000-6-2:2005, EN 61000-6-4:2007. Machinery Directive: . Directive 2006/42/ECEN 61508-1:2010 EN/ISO 13849-1:2008 EN 62061:2005: . Directive 2006/42/EC: EN 61508-1:2010 EN/ISO 13849-1:2008 EN 62061:2005. Electromagnetic compatibility: EN 61000-6-2:2005, EN 61000-6-4:2007. Degree of protection: EN 60529:2000. AS-Interface: EN 62026-2:2013. Shock resistance: EN 61131-2:2004. Standards: EN 61000-6-2:2005, EN 61000-6-4:2007 EN 61326-3-1:2008 IEC 61508:2010 and EN 62061:2005 (up to SIL3) EN 13849:2008 (PL e). UL approval: An isolated source with a secondary open circuit voltage of ≤ 30 VDC with a 3 A maximum over current protection. Over current protection is not required when a Class 2 source is employed. UL mark does not provide UL certification for any functional safety rating or aspects of the device.. Ambient temperature: 0 ... 55 °C (32 ... 131 °F). Storage temperature: -25 ... 85 °C (-13 ... 185 °F). Degree of protection: IP20. Material: . HousingStainless steel: . Housing: Stainless steel. Mass: 800 g. Dimensions: . Height120 mmWidth110 mmLength89 mm: . Height: 120 mm. Width: 110 mm. Length: 89 mm. Construction type: Low profile housing , Stainless steel
