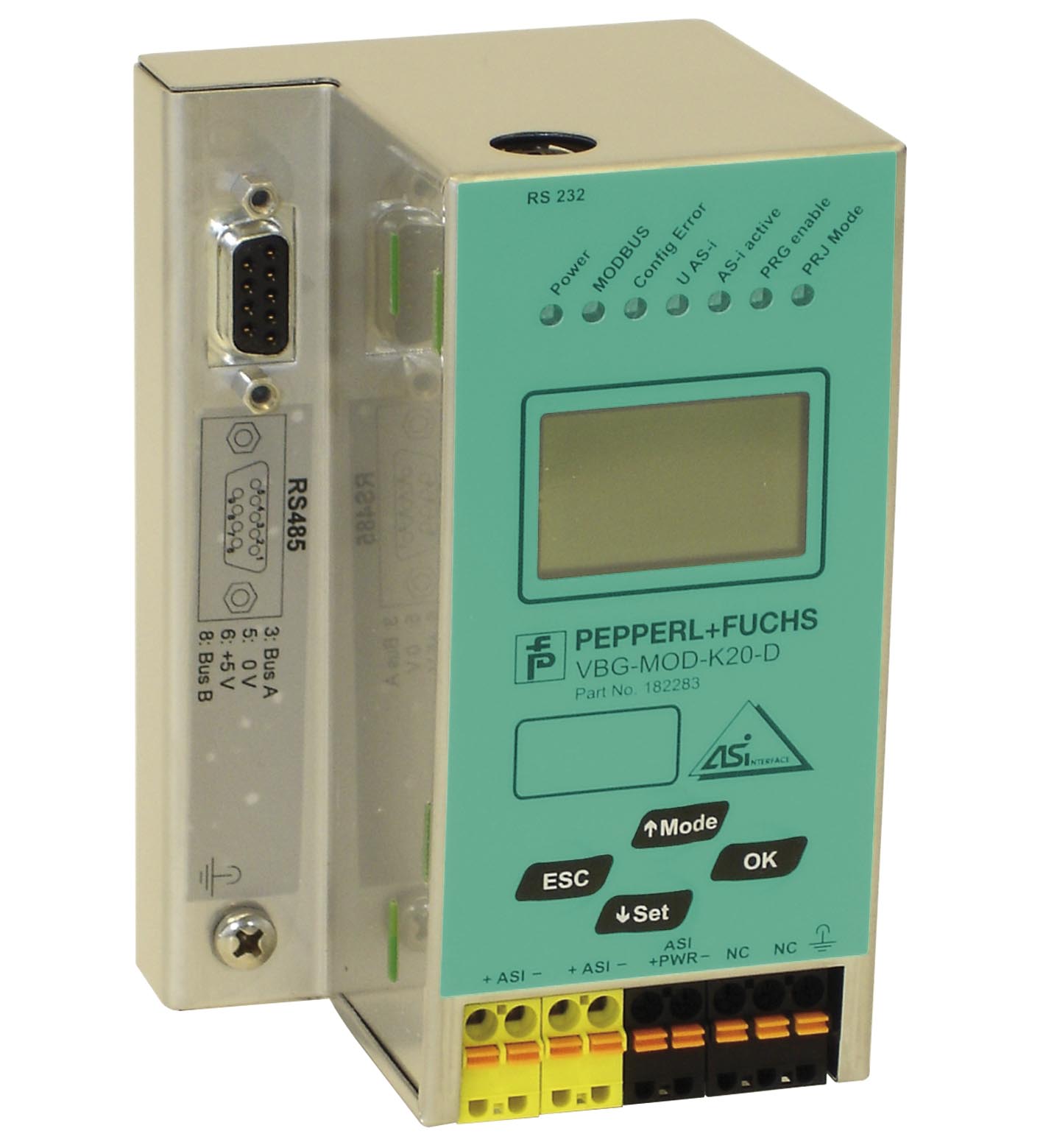

VBG-MOD-K20-D

AS-Interface gateway. MODBUS RTU gateway. AS-Interface specification: V3.0. PLC-Functionality: activateable. Duplicate address detection: from AS-Interface slaves. Earth fault detection: integrated. E...

AS-Interface gateway. MODBUS RTU gateway. AS-Interface specification: V3.0. PLC-Functionality: activateable. Duplicate address detection: from AS-Interface slaves. Earth fault detection: integrated. EMC monitoring: integrated. Diagnostics function: Extended function via display. UL File Number: E223772. MTTFd: 90 a at 30 °C. Display: Illuminated graphical LC display for addressing and error messages. LED AS-i ACTIVE: AS-Interface operation normal; LED green. LED CONFIG ERR: configuration error; LED red. LED PRG ENABLE: autom. programming; LED green. LED POWER: voltage ON; LED green. LED PRJ MODE: projecting mode active; LED yellow. LED U AS-i: AS-Interface voltage; LED green. LED MODBUS: MODBUS interface in operation, LED green. Switch SET: Selection and setting of a slave address. OK button: Mode selection traditional-graphical/confirmation. Button MODE: Mode selection PRJ-operation/save configuration/cursor. ESC button: Mode selection traditional-graphical/cancel. Insulation voltage: ≥ 500 V. Rated operating voltage: from AS-Interface. Rated operating current: ≤ 180 mA from AS-Interface. Interface type: RS-485. Protocol: MODBUS RTU (Remote Terminal Unit). Interface type: RS 232, serial Diagnostic Interface. Transfer rate: 19,2 kBit/s. AS-Interface: spring terminals, removable. MODBUS: RS 485 interface. Degree of protection: EN 60529:2000. Ambient temperature: 0 ... 55 °C (32 ... 131 °F). Storage temperature: -15 ... 75 °C (5 ... 167 °F). Degree of protection: IP20. Mass: 420 g. Dimensions: . Height120 mmWidth75 mmLength76 mm: . Height: 120 mm. Width: 75 mm. Length: 76 mm. Construction type: Low profile housing , Stainless steel

Brand	Pepperl Fuchs
Lifecycle status	active
