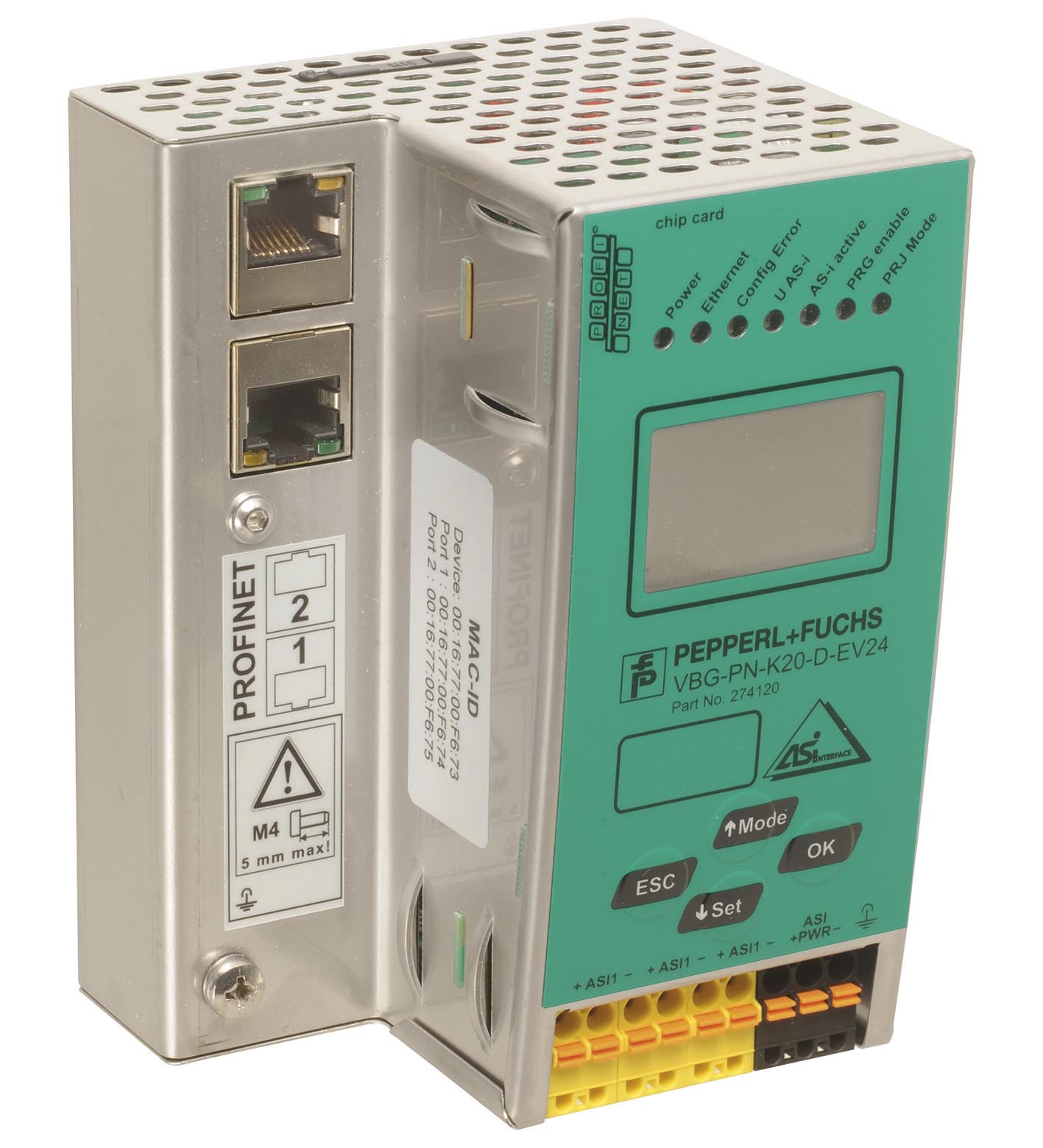

VBG-PN-K20-D-EV24

AS-Interface gateway. PROFINET Gateway with integrated switch. AS-Interface specification: V3.0. Duplicate address detection: from AS-Interface slaves. Earth fault detection: integrated. EMC monitorin...

AS-Interface gateway. PROFINET Gateway with integrated switch. AS-Interface specification: V3.0. Duplicate address detection: from AS-Interface slaves. Earth fault detection: integrated. EMC monitoring: integrated. Diagnostics function: Extended function via display. Data decoupling: integrated. UL File Number: E223772 only from low voltage, limited energy source (SELV or PELV) or listed Class 2 source. MTTFd: 105 a at 30 °C. Display: Illuminated graphical LC display for addressing and error messages. LED ETHERNET: PROFINET communication active; LED greenNo PROFINET communication; LED red. LED AS-i ACTIVE: AS-Interface operation normal; LED green. LED CONFIG ERR: configuration error; LED red. LED PRG ENABLE: autom. programming; LED green. LED POWER: voltage ON; LED green. LED PRJ MODE: projecting mode active; LED yellow. LED U AS-i: AS-Interface voltage; LED green. Switch SET: Selection and setting of a slave address. OK button: Mode selection traditional-graphical/confirmation. Button MODE: Mode selection PRJ-operation/save configuration/cursor. ESC button: Mode selection traditional-graphical/cancel. Insulation voltage: ≥ 500 V. Rated operating voltage: 24 V DC ( 20 ... 31.6 V ) safe isolated power supplies (PELV) Note24 V power supply, max. segment length: 50 mSupply via AS-Interface power supply, max. segment length: 100 m. Rated operating current: approx. 250 mA. Power supply: max. 4 A per AS-Interface circuit. Interface type: PROFINET IO device (IRT). Physical: 2 x RJ-45. Protocol: Media Redundancy Protocol (MRP). Transfer rate: 100 MBit/s. Interface type: Chip card slot. PROFINET: RJ-45. AS-Interface: removable spring clamp terminals. Electromagnetic compatibility: . Directive 2014/30/EUEN 62026-2:2013 EN 61000-6-2:2005, EN 61000-6-4:2007: . Directive 2014/30/EU: EN 62026-2:2013 EN 61000-6-2:2005, EN 61000-6-4:2007. Electromagnetic compatibility: EN 61000-6-2:2005, EN 61000-6-4:2007. Degree of protection: EN 60529:2000. AS-Interface: EN 62026-2:2013. Shock resistance: EN 61131-2:2004. Standards: EN 61000-6-2:2005, EN 61000-6-4:2007. UL approval: An isolated source with a secondary open circuit voltage of ≤ 30 VDC with a 3 A maximum over current protection. Over current protection is not required when a Class 2 source is employed. UL mark does not provide UL certification for any functional safety rating or aspects of the device.. Ambient temperature: 0 ... 55 °C (32 ... 131 °F). Storage temperature: -25 ... 85 °C (-13 ... 185 °F). Degree of protection: IP20. Mass: 500 g. Dimensions: . Height120 mmWidth85 mmLength83 mm: . Height: 120 mm. Width: 85 mm. Length: 83 mm. Construction type: Low profile housing , Stainless steel
