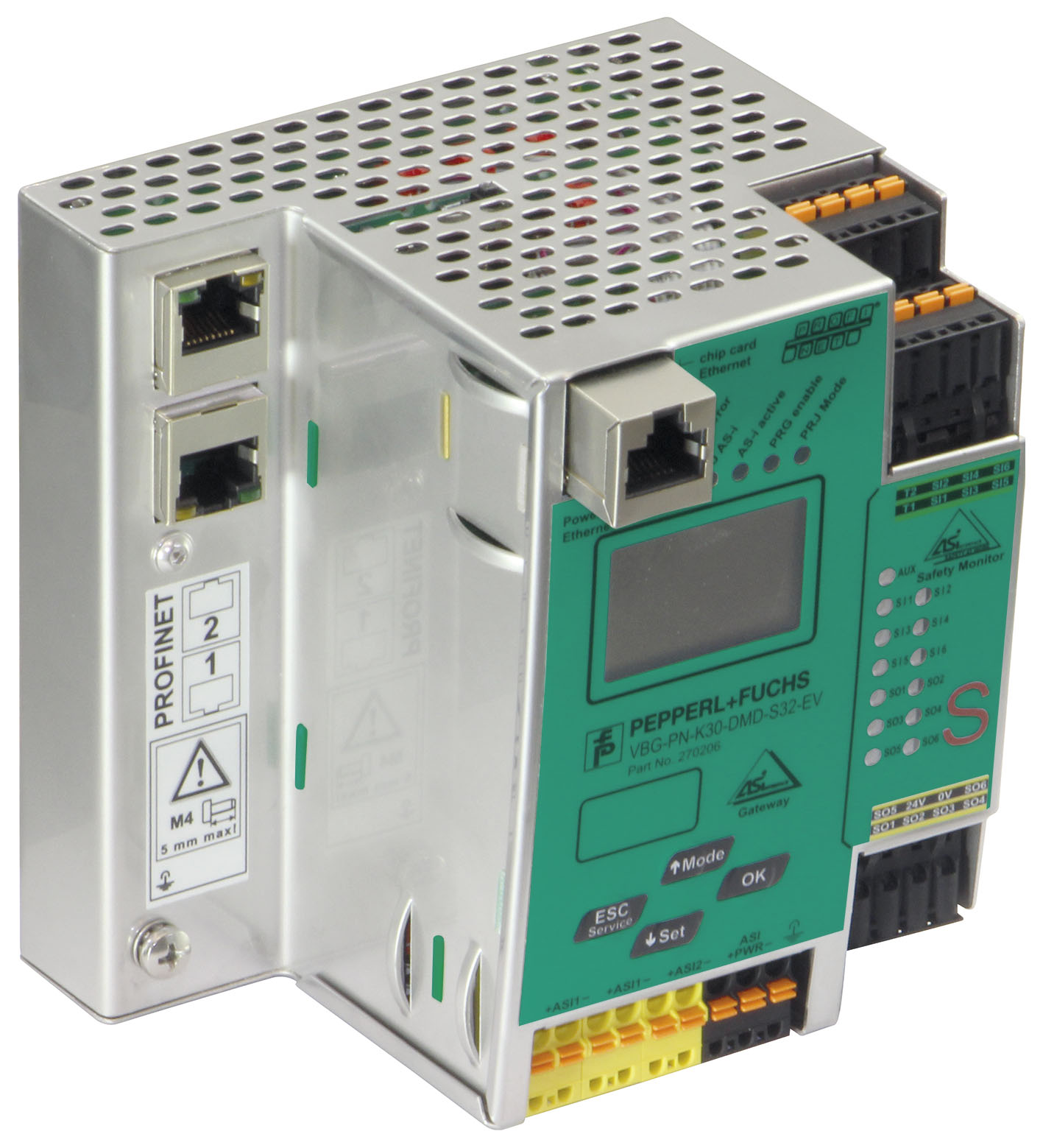

VBG-PN-K30-DMD-S32-EV

AS-Interface Gateway/Safety Monitor. PROFINET Gateway with integrated safety monitor, double master for 2 AS-Interface networks, power supply input with decoupling coils. AS-Interface specification: V...

AS-Interface Gateway/Safety Monitor. PROFINET Gateway with integrated safety monitor, double master for 2 AS-Interface networks, power supply input with decoupling coils. AS-Interface specification: V3.0. PLC-Functionality: activateable. Duplicate address detection: from AS-Interface slaves. Earth fault detection: integrated. EMC monitoring: integrated. Diagnostics function: Extended function via display. Data decoupling: integrated. Switch-on delay: < 10 s. Response delay: < 40 ms. UL File Number: E223772 only from low voltage, limited energy source (SELV or PELV) or listed Class 2 source. Safety Integrity Level (SIL): SIL 3. Performance level (PL): PL e. MTTFd: 100 a. B10d: 2.5 E+5. Display: Illuminated graphical LC display for addressing and error messages. LED ETHERNET: PROFINET master detected; LED green. LED AS-i ACTIVE: AS-Interface operation normal; LED green. LED CONFIG ERR: configuration error; LED red. LED PRG ENABLE: autom. programming; LED green. LED POWER: voltage ON; LED green. LED PRJ MODE: projecting mode active; LED yellow. LED U AS-i: AS-Interface voltage; LED green. LED AUX: ext. auxiliary voltage UAUX ; LED green. LED IN: 6 x LED green. LED OUT: Output circuit closed; 6 x green LEDs. Button: 4. Switch SET: Selection and setting of a slave address. OK button: Mode selection traditional-graphical/confirmation. Button MODE: Mode selection PRJ-operation/save configuration/cursor. ESC button: Mode selection traditional-graphical/cancel. Insulation voltage: ≥ 500 V. Rated operating voltage: 26.5 ... 31.6 V from AS-Interface; 24 V DC. Rated operating current: approx. 300 mA PELV. Power supply: max. 4 A per AS-Interface circuit. Interface type: PROFINET IO device (IRT). Physical: 2 x RJ-45. Protocol: Media Redundancy Protocol (MRP). Transfer rate: 100 MBit/s. Interface type: RJ-45 Ethernet Diagnostic Interface. Transfer rate: 10 MBit/s. Interface type: Chip card slot. Number/Type: 6 inputsSafety: 3 x 2 channels Or 6 standard inputs. Safety output: 6 semiconductor outputsOutput circuits: 6 PNP transistor outputsMax. contact load:1.2 ADC-13 at 30 VDC, Σ = 7.2 A in total (see derating). PROFINET: RJ-45. AS-Interface: spring terminals, removable. Electromagnetic compatibility: . Directive 2014/30/EUEN 62026-2:2013 EN 61000-6-2/AC:2005, EN 61000-6-4:2007+A1:2011: . Directive 2014/30/EU: EN 62026-2:2013 EN 61000-6-2/AC:2005, EN 61000-6-4:2007+A1:2011. Machinery Directive: . Directive 2006/42/ECEN 61508:2010 EN ISO 13849-1/AC:2009 EN 62061:2005+A1:2013: . Directive 2006/42/EC: EN 61508:2010 EN ISO 13849-1/AC:2009 EN 62061:2005+A1:2013. Degree of protection: EN 60529:2000. AS-Interface: EN 62026-2:2013. Noise immunity: EN 61000-6-4:2007/A1:2011 EN 61000-6-2/AC:2005. Shock resistance: EN 61131-2:2004. Functional safety: EN ISO 13849-1:2008/AC:2009, EN ISO 13849-2:2012 (up to PL e), EN 61508:2010 and EN 62061:2005+A1:2013 (up to SIL3). UL approval: An isolated source with a secondary open circuit voltage of ≤ 30 VDC with a 3 A maximum over current protection. Over current protection is not required when a Class 2 source is employed. UL mark does not provide UL certification for any functional safety rating or aspects of the device.. Ambient temperature: 0 ... 55 °C (32 ... 131 °F). Storage temperature: -25 ... 85 °C (-13 ... 185 °F). Degree of protection: IP20. Material: . HousingStainless steel: . Housing: Stainless steel. Mass: 800 g. Dimensions: . Height120 mmWidth110 mmLength120 mm: . Height: 120 mm. Width: 110 mm. Length: 120 mm. Construction type: Low profile housing

Brand	Pepperl Fuchs
Lifecycle status	active
