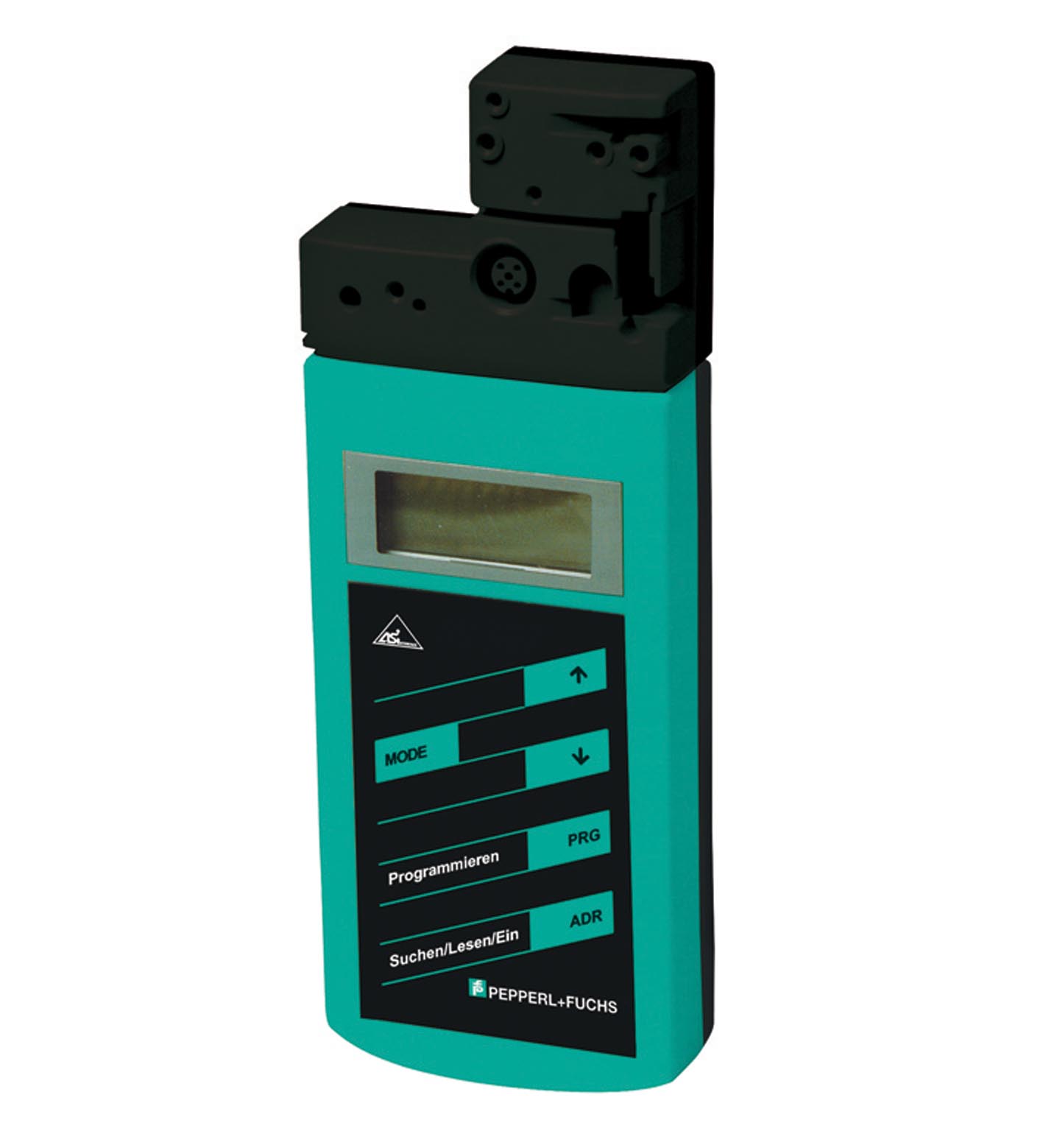

VBP-HH1-V3.0

AS-Interface Handheld. AS-Interface Handheld. AS-Interface specification: V3.0. Operating mode: Plug-in charging unit, 230 V AC, included in the delivery package. Display: LC display. Keyboard: membra...

AS-Interface Handheld. AS-Interface Handheld. AS-Interface specification: V3.0. Operating mode: Plug-in charging unit, 230 V AC, included in the delivery package. Display: LC display. Keyboard: membrane keys, 5 keys. Operating duration: 8 h or ≥ 250 read/write procedures for fully charged battery. Power supply: battery mode, please use only battery charger included with delivery to charge (charging time about 14 h) Type of rechargeable battery = NiMh 4.8 V, 800 mAh, 3.84 Wh (UN 3496 batteries, nickel-metal hydride). Interface type: AS-Interface, short-circuit proof and overload-proof, or optical. Open loop voltage: 28 V. Load current: 100 mA at 25 V. Electromagnetic compatibility: . Directive 2014/30/EUHandheld: EN 61326-1:2013 Plug-in charging unit EN 61000-3-2:2014 , EN 61000-3-3:2013 , EN 61000-4-2:2009 , EN 61000-4-3:2006+A1:2008+A2:2010, EN 61000-4-4:2012, EN 61000-4-5:2014+A1:2017, EN 61000-4-6:2014+AC:2015, EN 61000-4-8:2010, EN 61000-4-11:2004+A1:2017 , EN 55032:2015+AC:2016 , EN 55035:2017: . Directive 2014/30/EU: Handheld: EN 61326-1:2013 Plug-in charging unit EN 61000-3-2:2014 , EN 61000-3-3:2013 , EN 61000-4-2:2009 , EN 61000-4-3:2006+A1:2008+A2:2010, EN 61000-4-4:2012, EN 61000-4-5:2014+A1:2017, EN 61000-4-6:2014+AC:2015, EN 61000-4-8:2010, EN 61000-4-11:2004+A1:2017 , EN 55032:2015+AC:2016 , EN 55035:2017. Low voltage: . Directive 2014/35/EUPlug-in charging unit EN 62368-1:2014+A11:2017: . Directive 2014/35/EU: Plug-in charging unit EN 62368-1:2014+A11:2017. Degree of protection: EN 60529:2000. Electrical safety: Plug-in charging unit EN 62368-1:2014+A11:2017. Emitted interference: Handheld: EN 61326-1:2013 Plug-in charging unit EN 55032:2015+AC:2016 , EN 55035:2017. Noise immunity: Handheld: EN 61326-1:2013 Plug-in charging unit EN 61000-3-2:2014 , EN 61000-3-3:2013. Ambient temperature: 0 ... 40 °C (32 ... 104 °F). Storage temperature: -20 ... 40 °C (-4 ... 104 °F). Degree of protection: IP20. Material: . Housingplastic: . Housing: plastic. Mass: approx. 610 g. Dimensions: . Height34 mmWidth80 mmLength214 mm: . Height: 34 mm. Width: 80 mm. Length: 214 mm

Brand	Pepperl Fuchs
Lifecycle status	active
