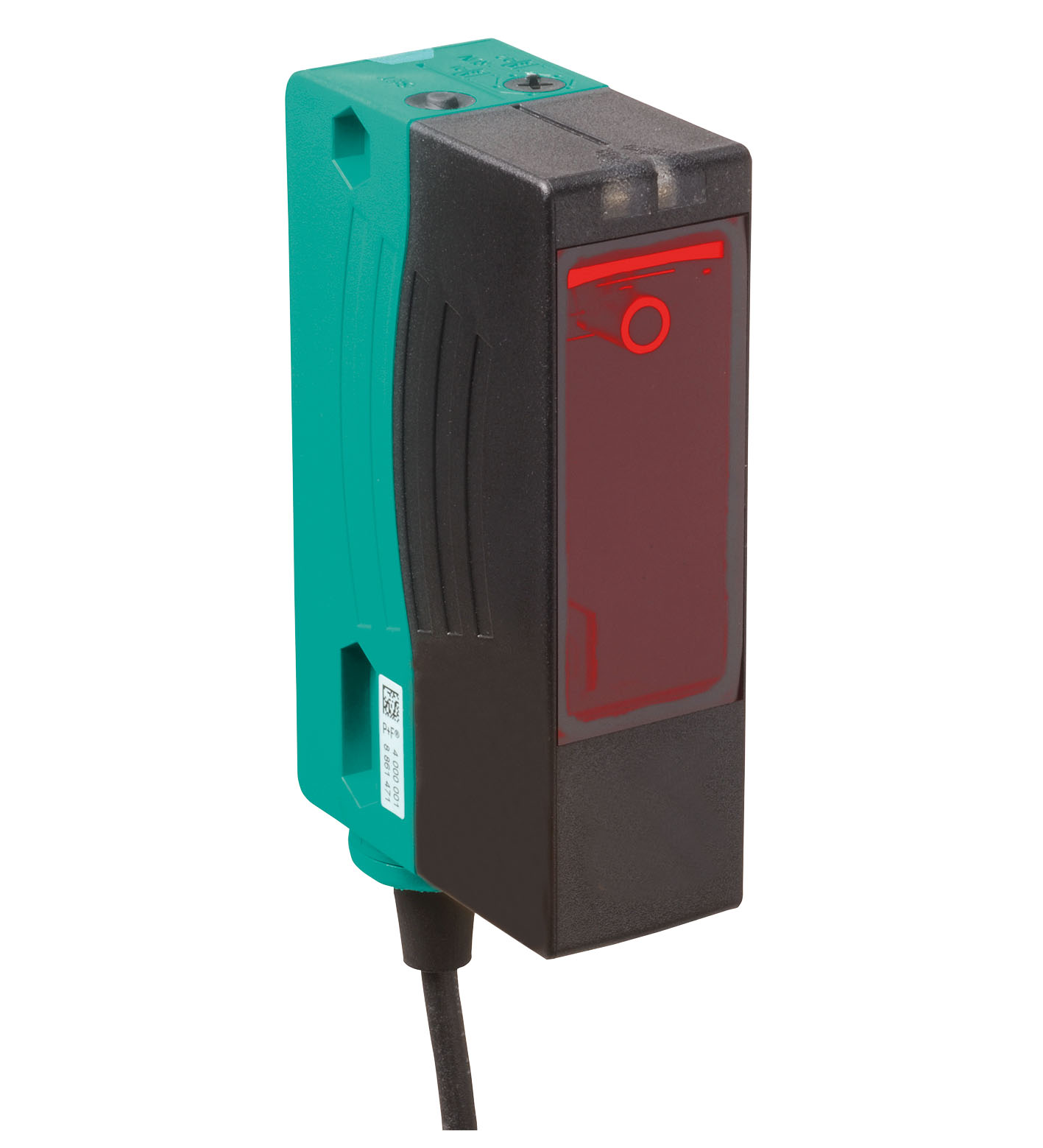

VDM28-15-L1-IO/110/115b/122

Distance sensor. Universal distance sensor, measurement to object, IO-Link interface, measuring method: PRT, 15 m detection range, red laser light, laser class 1, push-pull output, analog output, fixe...

Distance sensor. Universal distance sensor, measurement to object, IO-Link interface, measuring method: PRT, 15 m detection range, red laser light, laser class 1, push-pull output, analog output, fixed cable with M12 plug, Distance measurement using object, Measuring method PRT (Pulse Ranging Technology), IO-Link interface for service and process data, Analog output 0/4 mA ... 20 mA, Accurate, clear, and reproducible measuring results. Measuring range: 0.2 ... 15 m. Reference target: Kodak white (90%). Light source: laser diode typ. service life 85,000 h at Ta = +25 °C. Light type: modulated visible red light. Laser nominal ratings: . NoteLASER LIGHT , DO NOT STARE INTO BEAMLaser class1Wave length660 nmBeam divergence< 1.5 mradPulse lengthapprox. 4 nsRepetition rate250 kHzmax. pulse energy< 1.5 nJ: . Note: LASER LIGHT , DO NOT STARE INTO BEAM. Laser class: 1. Wave length: 660 nm. Beam divergence: < 1.5 mrad. Pulse length: approx. 4 ns. Repetition rate: 250 kHz. max. pulse energy: < 1.5 nJ. Angle deviation: max. ± 2°. Measuring method: Pulse Ranging Technology (PRT). Diameter of the light spot: < 15 mm at a distance of 15 m at 20 °C. Ambient light limit: 50000 Lux. MTTFd: 200 a. Mission Time (TM): 10 a. Diagnostic Coverage (DC): 0 %. Operation indicator: LED green. Function indicator: 2 LEDs yellow for switching state. Teach-in indicator: Teach-In: LED green/yellow equiphase flashing; 2.5 Hz Teach Error:LED green/yellow non equiphase flashing; 8.0 Hz. Control elements: 5-step rotary switch for operating modes selection (threshold setting and operating modes). Control elements: Switch for setting the threshold values. Operating voltage: 10 ... 30 V DC / when operating in IO-Link mode: 18 ... 30 V. Ripple: 10 % within the supply tolerance. No-load supply current: ≤ 70 mA / 24 V DC. Time delay before availability: < 1.5 s at 20 °C. Interface type: IO-Link. Protocol: IO-Link V1.0. Cycle time: min. 2.3 ms. Mode: COM2 (38.4 kBit/s). Process data width: 16 bit. SIO mode support: yes. Signal output: Push-pull output, short-circuit protected, reverse polarity protected. Switching voltage: max. 30 V DC. Switching current: max. 100 mA. Measurement output: 1 analog output 4 ... 20 mA, short-circuit/overload protected. Switching frequency: 50 Hz. Response time: 10 ms. Electromagnetic compatibility: EN 61000-6-2, EN 61000-6-4. Laser safety: IEC 60825-1:2014. Standard conformity: . Standards: . Standards: . Absolute accuracy: ± 25 mm. Repeat accuracy: < 5 mm. Protection class: III. UL approval: cULus Listed, Class 2 Power Source, Type 1 enclosure. CCC approval: CCC approval / marking not required for products rated ≤36 V. FDA approval: IEC 60825-1:2014 Complies with 21 CFR 1040.10 and 1040.11 except for conformance with IEC 60825-1 Ed. 3 as described in Laser Notice 56, dated May 8, 2019.. Ambient temperature: -30 ... 55 °C (-22 ... 131 °F). Storage temperature: -30 ... 70 °C (-22 ... 158 °F). Degree of protection: IP67. Connection: 300 mm fixed cable with M12 x 1, 4-pin connector. Material: . HousingPlastic ABSOptical facePMMA: . Housing: Plastic ABS. Optical face: PMMA. Cable: . Cable diameter4.3 mm ± 0.1 mm: . Cable diameter: 4.3 mm ± 0.1 mm. Mass: 90 g. Dimensions: . Height88 mmWidth25.8 mmDepth54.6 mm: . Height: 88 mm. Width: 25.8 mm. Depth: 54.6 mm

Brand	Pepperl Fuchs
Lifecycle status	active
