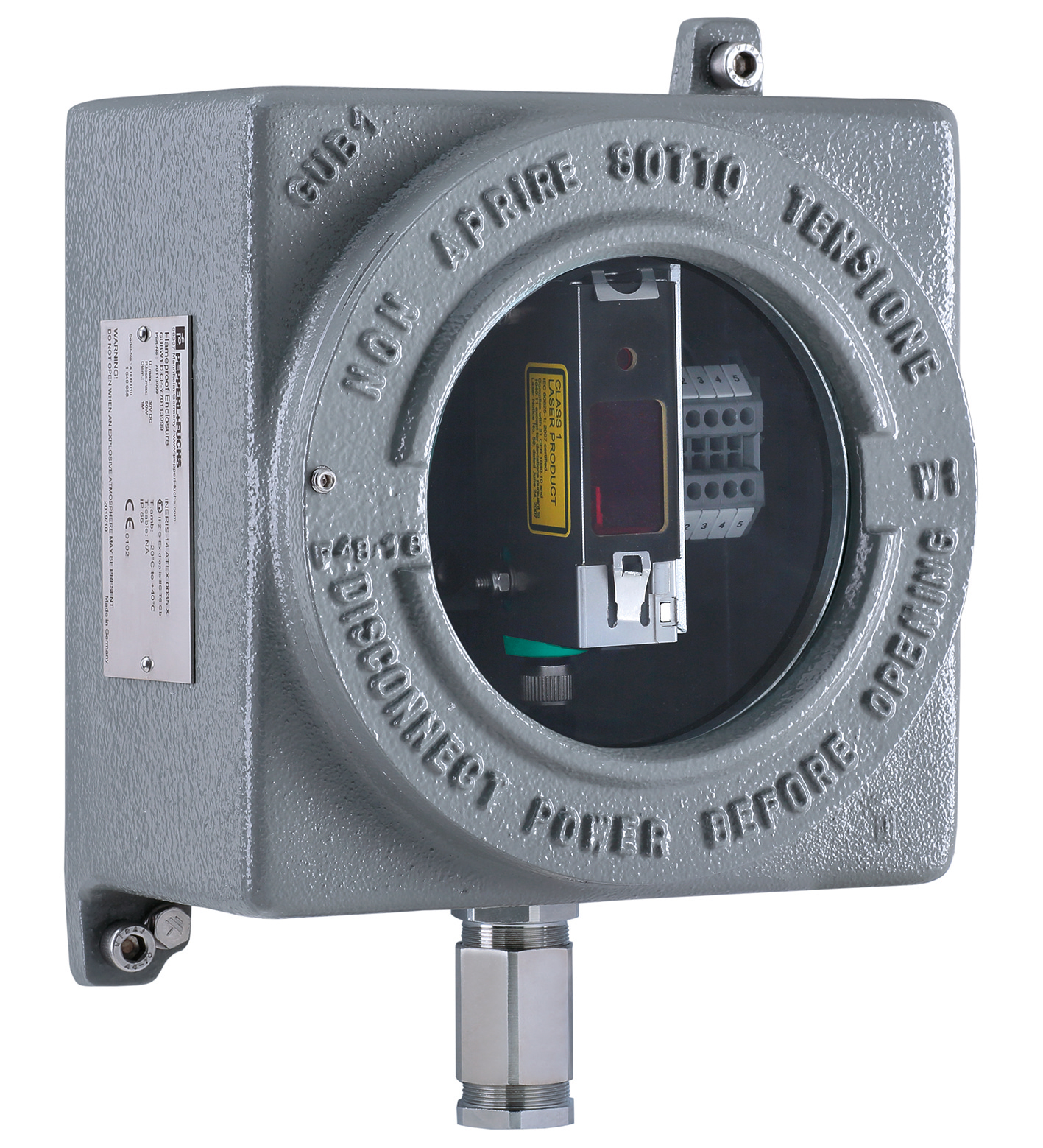

VDM28-50-R1-IO/110/116/122-Ex

Distance sensor. Universal distance sensor, measurement to reflector, IO-Link interface, measuring method PRT, 50 m detection range, red laser light, laser class 1, push-pull output, analog output, te...

Distance sensor. Universal distance sensor, measurement to reflector, IO-Link interface, measuring method PRT, 50 m detection range, red laser light, laser class 1, push-pull output, analog output, terminal block, Retroreflective laser distance sensor, Measuring method PRT (Pulse Ranging Technology), Accurate, clear, and reproducible measuring results, Red laser as the light emitter, Version with laser class 1. Device type: GUBW1.D.OS-VDM28-50-R1. Measuring range: 0.5 ... 50 m. Reference target: OFR-100/100. Light source: laser diode typ. service life 85,000 h at Ta = +25 °C. Light type: modulated visible red light. Laser nominal ratings: . NoteLASER LIGHT , DO NOT STARE INTO BEAMLaser class1Wave length660 nmBeam divergence< 1.5 mradPulse lengthapprox. 4 nsRepetition rate250 kHzmax. pulse energy< 1.5 nJ: . Note: LASER LIGHT , DO NOT STARE INTO BEAM. Laser class: 1. Wave length: 660 nm. Beam divergence: < 1.5 mrad. Pulse length: approx. 4 ns. Repetition rate: 250 kHz. max. pulse energy: < 1.5 nJ. Angle deviation: max. ± 2°. Measuring method: Pulse Ranging Technology (PRT). Diameter of the light spot: < 50 mm at a distance of 50 m at 20 °C. Ambient light limit: 50000 Lux. MTTFd: 200 a. Mission Time (TM): 10 a. Diagnostic Coverage (DC): 0 %. Operation indicator: LED green. Function indicator: 2 LEDs yellow for switching state. Teach-in indicator: Teach-In: LED green/yellow equiphase flashing; 2.5 Hz Teach Error:LED green/yellow non equiphase flashing; 8.0 Hz. Control elements: 5-step rotary switch for operating modes selection (threshold setting and operating modes). Control elements: Switch for setting the threshold values. Operating voltage: 10 ... 30 V DC / when operating in IO-Link mode: 18 ... 30 V. Ripple: 10 % within the supply tolerance. No-load supply current: ≤ 70 mA / 24 V DC. Time delay before availability: < 1.5 s at 20 °C. Interface type: IO-Link. Protocol: IO-Link V1.0. Cycle time: min. 2.3 ms. Mode: COM2 (38.4 kBit/s). Process data width: 16 bit. SIO mode support: yes. Signal output: Push-pull output, short-circuit protected, reverse polarity protected. Switching voltage: max. 30 V DC. Switching current: max. 100 mA. Measurement output: 1 analog output 4 ... 20 mA, short-circuit/overload protected. Switching frequency: 50 Hz. Response time: 10 ms. Electromagnetic compatibility: EN 61000-6-2, EN 61000-6-4. Laser safety: IEC 60825-1:2014. Absolute accuracy: ± 25 mm. Repeat accuracy: < 5 mm. IECEx approval: IECEx INE 14.0042X. ATEX approval: INERIS 14 ATEX 0035X. Marking II 2 GDEx db IIC T6 GbEx tb IIIC T85°C Db: . Marking: II 2 GDEx db IIC T6 GbEx tb IIIC T85°C Db. Protection class: III. FDA approval: IEC 60825-1:2014 Complies with 21 CFR 1040.10 and 1040.11 except for conformance with IEC 60825-1 Ed. 3 as described in Laser Notice 56, dated May 8, 2019.. Ambient temperature: -30 ... 45 °C (-22 ... 113 °F). Storage temperature: -30 ... 70 °C (-22 ... 158 °F). Cable gland: Clamping range 3 ... 8.5 mm. Enclosure cover: threaded round cover. Cover fixing: flamepath thread. Flamepath grease: petroleum jelly. Degree of protection: IP66. Connection: Connection terminals, max. wire cross-section 2.5 mm2. Material: . Enclosurealuminum alloyGlassthermo-resistant tempered glassFinishepoxy coated RAL 7005 (grey): . Enclosure: aluminum alloy. Glass: thermo-resistant tempered glass. Finish: epoxy coated RAL 7005 (grey). Mass: approx. 6.6 kg. Grounding: M6 external grounding points
