Pepperl Fuchs

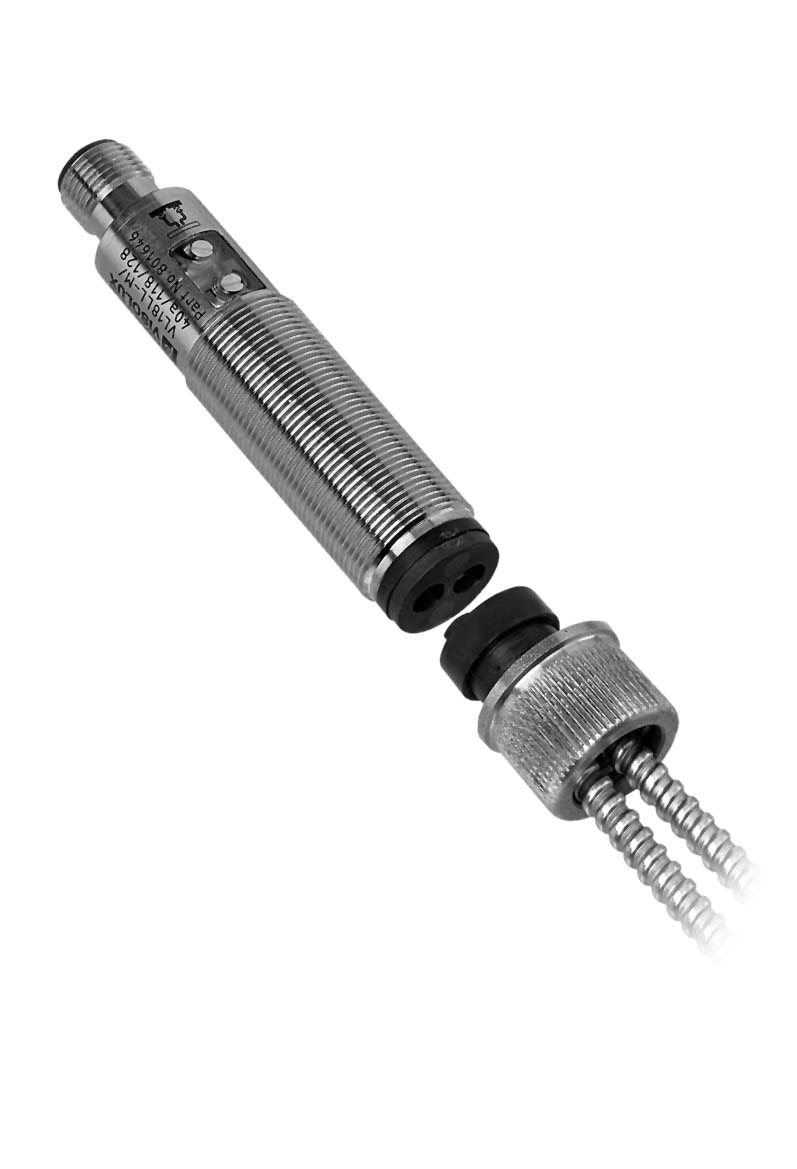

VL18LL-M/32/40a/118

Fiber optic sensor. Fiber optic sensor for glass fiber optics, Strong metallic housing in cylindrical shape M18 x 1, Degree of protection IP67, Not sensitive to ambient light, even with switched energy saving lamps, Multiple device installation possible, no mutual interference (no cross-talk), M12 plug connection. Sensor range: up to 70 mm (LMR 18-3,2-1,0-K4). Detection range: up to 300 mm (LME 18-2,3-0,5-K3). Light source: LED, 650 nm visible red light. Light type: modulated visible red light. Opening angle: 26 °. Optical face: frontal. Ambient light limit: 30000 Lux. Hysteresis: < 15 %. MTTFd: 700 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Operation indicator: LED green, flashes in case of short-circuit. Function indicator: LED yellow, lights up with receiver lit. Control elements: Sensitivity adjuster, light/dark switch. Operating voltage: 10 ... 30 V DC , class 2. Ripple: 10 %. No-load supply current: < 35 mA. Protection class: II , rated voltage ≤ 50 V AC with pollution degree 1-2 according to IEC 60664-1. Switching type: light/dark on, switchable. Signal output: 1 PNP output, short-circuit protected, reverse polarity protected, open collector. Switching voltage: 30 V DC. Switching current: max. 200 mA. Voltage drop: ≤ 2.5 V DC. Switching frequency: 500 Hz. Response time: 1 ms. Product standard: EN 60947-5-2. EAC conformity: TR CU 020/2011. UL approval: cULus Listed, Type 1 enclosure. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Storage temperature: -30 ... 70 °C (-22 ... 158 °F). Degree of protection: IP67. Connection: M12 connector, 4-pin. Material: . Housingbrass, nickel-platedOptical faceplastic: . Housing: brass, nickel-plated. Optical face: plastic. Mass: 60 g. Dimensions: . Length65 mmDiameter18 mm: . Length: 65 mm. Diameter: 18 mm

Brand	Pepperl Fuchs
Lifecycle status	active

Not currently in stock

Price on request

Request sourcing Ask a question
