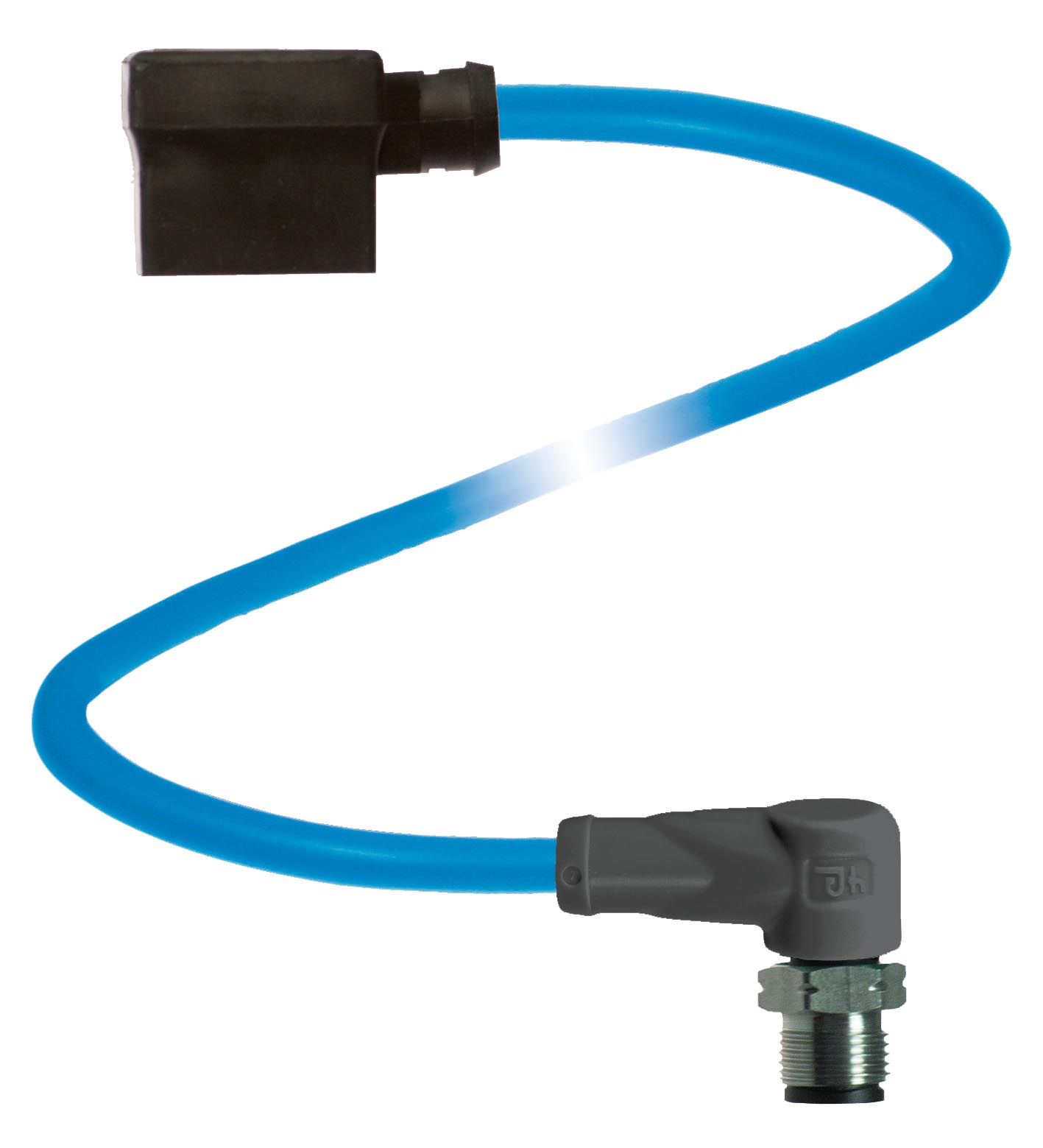

VMA-2+P-N-BU0,6M-PVC-V1-WV4A-Y
Valve Connector Cordset. Valve connector Form A 2-pin+PE to M12 plug stainless steel 1.4404, A-coded 2-pin, PVC cable blue, NAMUR. Connector 1: . ConnectionValve connector DINStyleangledLockingscrew c...
Valve Connector Cordset. Valve connector Form A 2-pin+PE to M12 plug stainless steel 1.4404, A-coded 2-pin, PVC cable blue, NAMUR. Connector 1: . ConnectionValve connector DINStyleangledLockingscrew connectionNumber of pins2 + PE: . Connection: Valve connector DIN. Style: angled. Locking: screw connection. Number of pins: 2 + PE. Connector 2: . ConnectionplugConstruction typeM12StyleangledLockingscrew connectionNumber of pins2CodingA-coded: . Connection: plug. Construction type: M12. Style: angled. Locking: screw connection. Number of pins: 2. Coding: A-coded. Operating voltage: max. 250 V AC/DC. Test voltage: 1500 V eff AC. Operating current: max. 4 A. Resistance per unit length: max. 0.053 Ω/m. Capacitance per unit length: 101.8 nF/km. Inductance per unit length: 0.581 mH/km. Degree of protection: EN 60529. Plug connection: connector M12 x 1 : IEC 61076-2-101 Valve connector : DIN EN 175301-803. Ambient temperature: . Connector 1-40 ... 90 °C (-40 ... 194 °F)Connector 2-40 ... 90 °C (-40 ... 194 °F)Cable, fixed installation-25 ... 70 °C (-13 ... 158 °F)Cable, flexing-5 ... 70 °C (23 ... 158 °F): . Connector 1: -40 ... 90 °C (-40 ... 194 °F). Connector 2: -40 ... 90 °C (-40 ... 194 °F). Cable, fixed installation: -25 ... 70 °C (-13 ... 158 °F). Cable, flexing: -5 ... 70 °C (23 ... 158 °F). Storage temperature: Connector 2 : -40 ... 125 °C (-40 ... 257 °F) :. Pollution degree: 3. Connector 1: . Tightening torque0.4 NmDegree of protectionIP67: . Tightening torque: 0.4 Nm. Degree of protection: IP67. Connector 2: . Tightening torque0.6 NmLoosening protectionavailableTool installationhexagon nut SW = 14 mmMating cyclesmin. 100Degree of protectionIP67 / IP68 / IP69Pollution degree3: . Tightening torque: 0.6 Nm. Loosening protection: available. Tool installation: hexagon nut SW = 14 mm. Mating cycles: min. 100. Degree of protection: IP67 / IP68 / IP69. Pollution degree: 3. Cable: according to IEC/EN 60228 (DIN VDE 0295) class 5. Sheath diameter4.8 mmBending radius> 10 x cable diameter, fixed installation > 15 x cable diameter, movable installationSheath colorblue (similar to RAL 5015)Number of cores2Core cross section0.34 mm2Cores colorCore 1: brown Core 2: blueCore construction19 x 0.15 mm ∅LengthL0.6 mCable codeLi YY 2 x 0,34: . Sheath diameter: 4.8 mm. Bending radius: > 10 x cable diameter, fixed installation > 15 x cable diameter, movable installation. Sheath color: blue (similar to RAL 5015). Number of cores: 2. Core cross section: 0.34 mm2. Cores color: Core 1: brown Core 2: blue. Core construction: 19 x 0.15 mm ∅. Length: 0.6 m. Cable code: Li YY 2 x 0,34. Mass: 51.96 g. Connector 1: . BodyPA, blackSealNBRContact surfaceAg: . Body: PA, black. Seal: NBR. Contact surface: Ag. Connector 2: . Screw connectionStainless steel 1.4404 / AISI 316LBodyTPU, blackContact surfaceAuFlammabilityV-2: . Screw connection: Stainless steel 1.4404 / AISI 316L. Body: TPU, black. Contact surface: Au. Flammability: V-2. Cable: . SheathingPVCCore insulationPVC: . Sheathing: PVC. Core insulation: PVC
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
