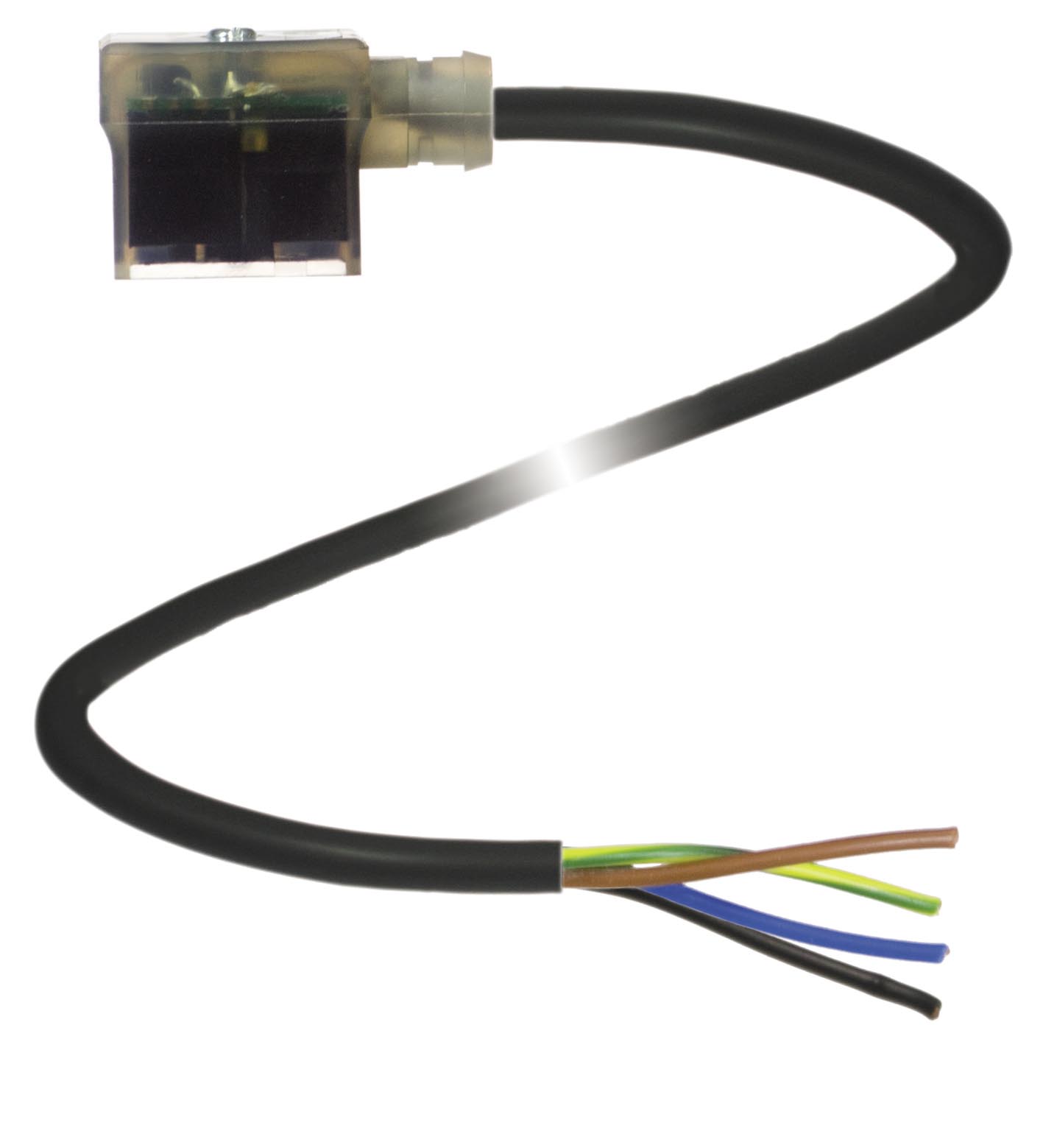

VMA-2+P/A-10M-PUR

Valve Connector Cordset. Valve connector Form A, suppressor diode switch amplifier LED 2-pin+PE, PUR cable black. Connector 1: . ConnectionValve connector DINConstruction typeform AStyleangledLockings...

Valve Connector Cordset. Valve connector Form A, suppressor diode switch amplifier LED 2-pin+PE, PUR cable black. Connector 1: . ConnectionValve connector DINConstruction typeform AStyleangledLockingscrew connectionNumber of pins2 + PE: . Connection: Valve connector DIN. Construction type: form A. Style: angled. Locking: screw connection. Number of pins: 2 + PE. Connector 2: . Connectioncable endCustomizationsheath stripped 50 mm: . Connection: cable end. Customization: sheath stripped 50 mm. LED yellow: Operating display. Operating current: max. 2 A. Nominal voltage: 24 V DC. Nominal voltage range: 19 ... 30 V DC. Current consumption: 2.4 mA. Suppression: Amplifier Suppressor diode. Degree of protection: EN 60529. Plug connection: Valve connector : DIN EN 175301-803. Flammability: Cable: UL 758 / UL 1581 , DIN EN 50265-2-1 , IEC 60332-1-2. UL approval: UL-Style 20549. Maximum permissible operating voltagemax. 300 VMaximum permissible ambient temperaturemax. 80 °C (max. 176 °F): . Maximum permissible operating voltage: max. 300 V. Maximum permissible ambient temperature: max. 80 °C (max. 176 °F). Ambient temperature: . Plug connector-25 ... 90 °C (-13 ... 194 °F)Cable, fixed installation-40 ... 80 °C (-40 ... 176 °F)Cable, flexing-20 ... 80 °C (-4 ... 176 °F): . Plug connector: -25 ... 90 °C (-13 ... 194 °F). Cable, fixed installation: -40 ... 80 °C (-40 ... 176 °F). Cable, flexing: -20 ... 80 °C (-4 ... 176 °F). Pollution degree: 3. Plug connector: . Tightening torque0.4 NmTool installationscrew M3 x 29Mating cyclesmin. 100: . Tightening torque: 0.4 Nm. Tool installation: screw M3 x 29. Mating cycles: min. 100. Degree of protection: IP67. Cable: according to IEC/EN 60228 (DIN VDE 0295) class 5. Sheath diameter5.8 mmBending radius> 10 x cable diameter, movable installation > 5 x cable diameter, fixed installationSheath colorblack (similar to RAL 9005)Number of cores4Core cross section0.75 mm2Cores colorCore 1: brown + Core 1: black S Core 2: blue 0 Core PE: green/yellowLengthL10 mCable codeLi 9Y 11Y 4 x 0,75: . Sheath diameter: 5.8 mm. Bending radius: > 10 x cable diameter, movable installation > 5 x cable diameter, fixed installation. Sheath color: black (similar to RAL 9005). Number of cores: 4. Core cross section: 0.75 mm2. Cores color: Core 1: brown + Core 1: black S Core 2: blue 0 Core PE: green/yellow. Length: 10 m. Cable code: Li 9Y 11Y 4 x 0,75. Mass: 590 g. Plug connector: . BodyTPU, transparentSealTPU , moldedContact surfaceAg: . Body: TPU, transparent. Seal: TPU , molded. Contact surface: Ag. Cable: . SheathingPURCoresbare copper (Cu)Core insulationPVC: . Sheathing: PUR. Cores: bare copper (Cu). Core insulation: PVC

Brand	Pepperl Fuchs
Lifecycle status	active
