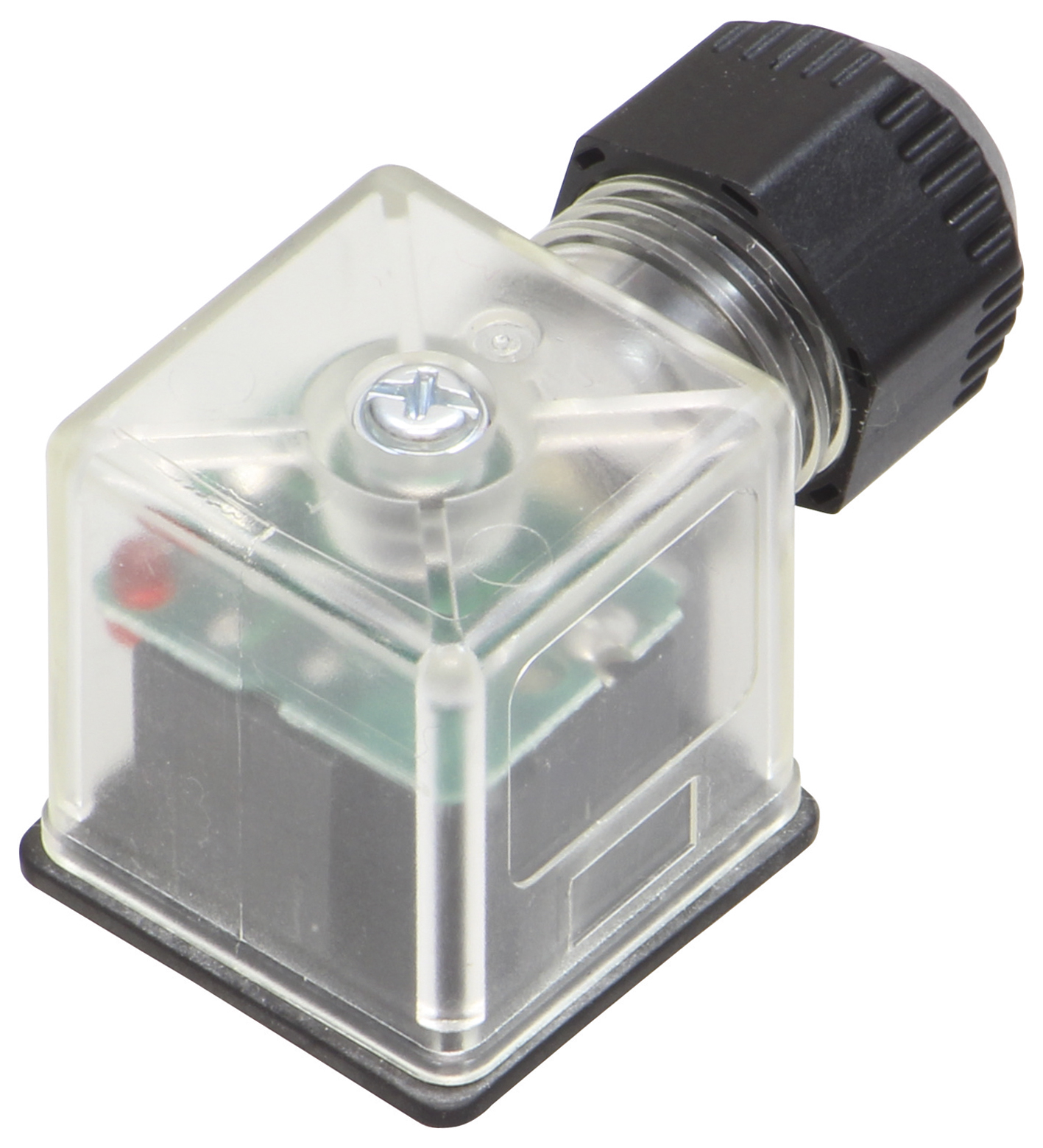

VMA-2+P/D2

Valve connector, non pre-wired. Valve connector Form A, non pre-wired. Number of pins: 2 + PE. Connection 1: Valve connector DIN. Construction type 1: angled. LED red: Operating display. Operating vol...

Valve connector, non pre-wired. Valve connector Form A, non pre-wired. Number of pins: 2 + PE. Connection 1: Valve connector DIN. Construction type 1: angled. LED red: Operating display. Operating voltage: 24 V DC. Operating current: max. 16 A. Volume resistance: < 10 mΩ. Suppression: diode. Ambient temperature: -40 ... 90 °C (-40 ... 194 °F). Degree of protection: IP67. Connection: Valve connector Form A Screw terminals for 0.75 mm2 ... 1.5 mm2 M16 cable gland. Material: . ContactsCuZn ; CuSnContact surfaceCuSnBodyPA, transparentSealNBR: . Contacts: CuZn ; CuSn. Contact surface: CuSn. Body: PA, transparent. Seal: NBR. Cable: . Sheath diameter4 ... 9 mm: . Sheath diameter: 4 ... 9 mm. Mass: 26.96 g

Brand	Pepperl Fuchs
Lifecycle status	active
