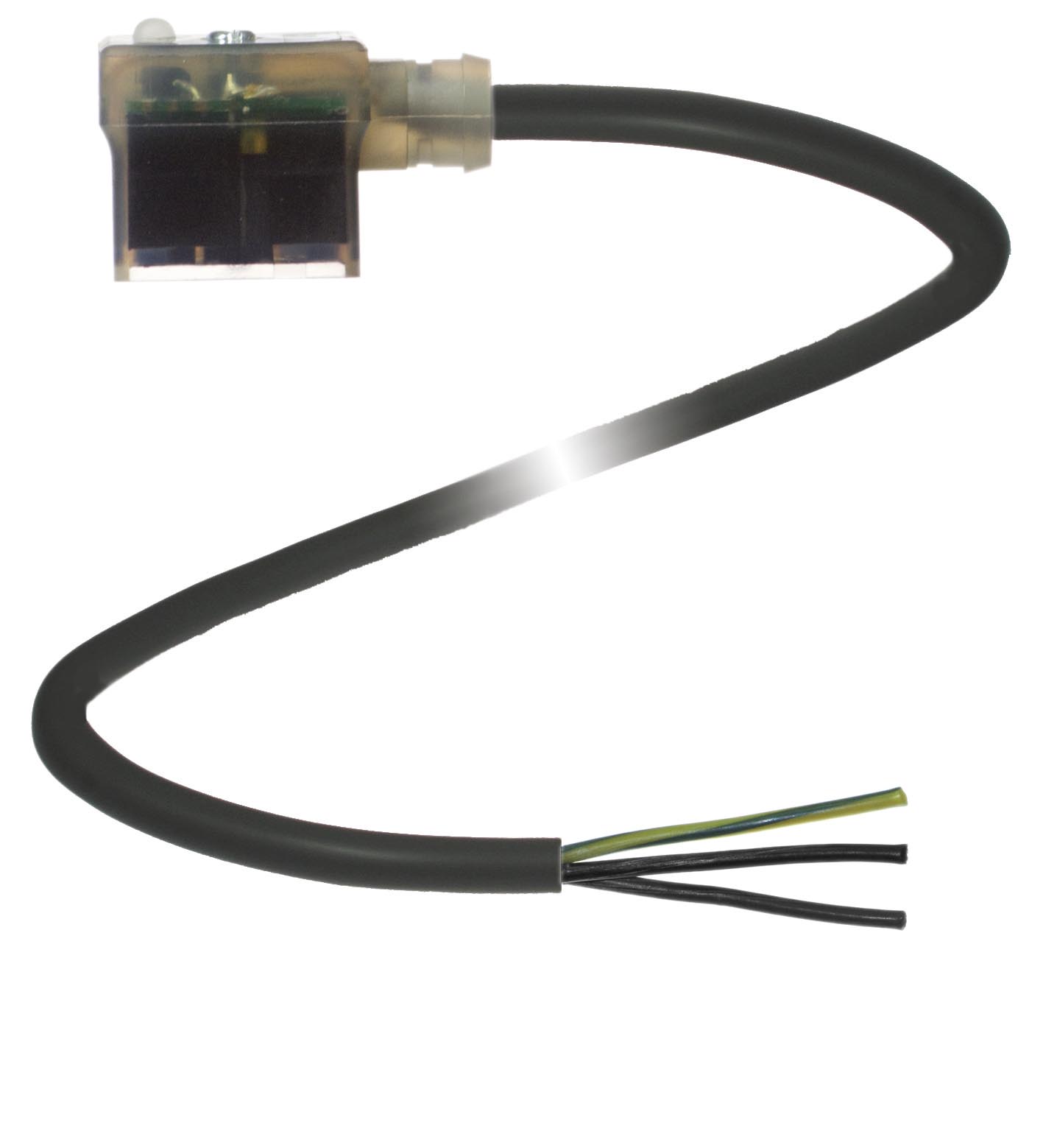

VMA-2+P/L1-2M-PUR

Valve Connector Cordset. Valve connector Form A. Number of pins: 2 + PE. Connection 1: Valve connector DIN. Construction type 1: right angle. Connection 2: cable end. LED yellow: Operating display. Op...

Valve Connector Cordset. Valve connector Form A. Number of pins: 2 + PE. Connection 1: Valve connector DIN. Construction type 1: right angle. Connection 2: cable end. LED yellow: Operating display. Operating voltage: 24 V AC/DC. Operating current: max. 10 A. Volume resistance: < 10 mΩ. Ambient temperature: -25 ... 80 °C (-13 ... 176 °F). Pollution degree: 3. Contact elements: Fork type springs. Degree of protection: IP65 / IP67. Connection: Valve connector Form A. Material: . ContactsCuZn ; CuSnBodyPURCablePURCore insolationPP: . Contacts: CuZn ; CuSn. Body: PUR. Cable: PUR. Core insolation: PP. Cable: fine-strand, flexible. Sheath diameter∅ 5.8 mmBending radius> 10 x cable diameter, movable installationColorgreyCores(2 + 1) x 0.75 mm2Conductor construction42 x 0.15 mm ∅LengthL2 m: . Sheath diameter: ∅ 5.8 mm. Bending radius: > 10 x cable diameter, movable installation. Color: grey. Cores: (2 + 1) x 0.75 mm2. Conductor construction: 42 x 0.15 mm ∅. Length: 2 m

Brand	Pepperl Fuchs
Lifecycle status	active
