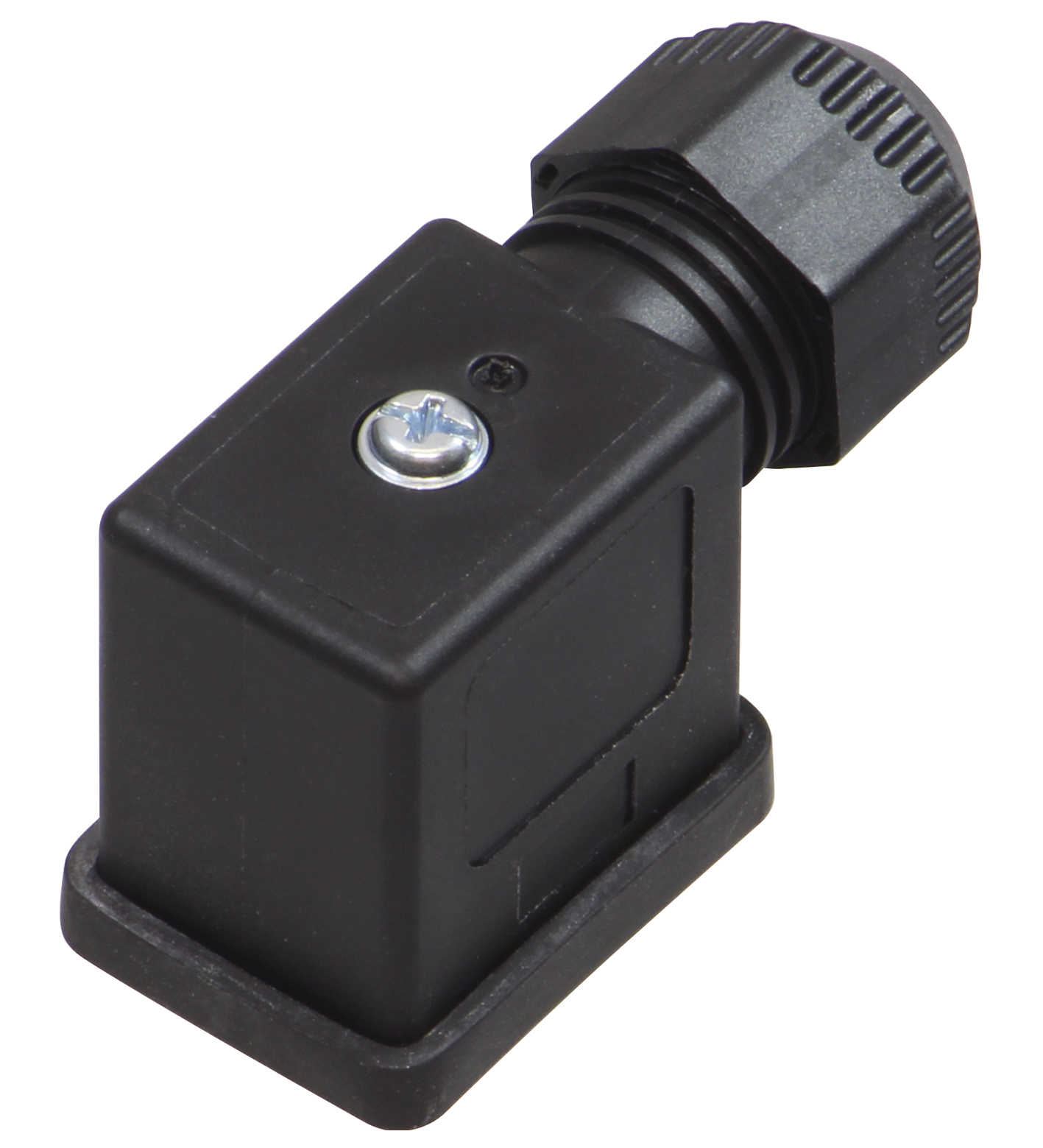

VMB-2+P

Valve connector, non pre-wired. Valve connector Form B, non pre-wired. Number of pins: 2 + PE. Connection 1: Valve connector DIN. Construction type 1: angled. Operating voltage: 250 V AC / 300 V DC. O...

Valve connector, non pre-wired. Valve connector Form B, non pre-wired. Number of pins: 2 + PE. Connection 1: Valve connector DIN. Construction type 1: angled. Operating voltage: 250 V AC / 300 V DC. Operating current: max. 16 A. Volume resistance: < 4 mω. Ambient temperature: -40 ... 90 °C (-40 ... 194 °F). Storage temperature: -40 ... 125 °C (-40 ... 257 °F). Degree of protection: IP67. Connection: Valve connector Form B screw terminals for max. 1.5 mm2 ; 16 AWG. Material: . Contact surfaceAgBodyPA, blackSealNBR: . Contact surface: Ag. Body: PA, black. Seal: NBR. Cable: . Sheath diameter4 ... 9 mm: . Sheath diameter: 4 ... 9 mm. Mass: 27 g

Brand	Pepperl Fuchs
Lifecycle status	active
