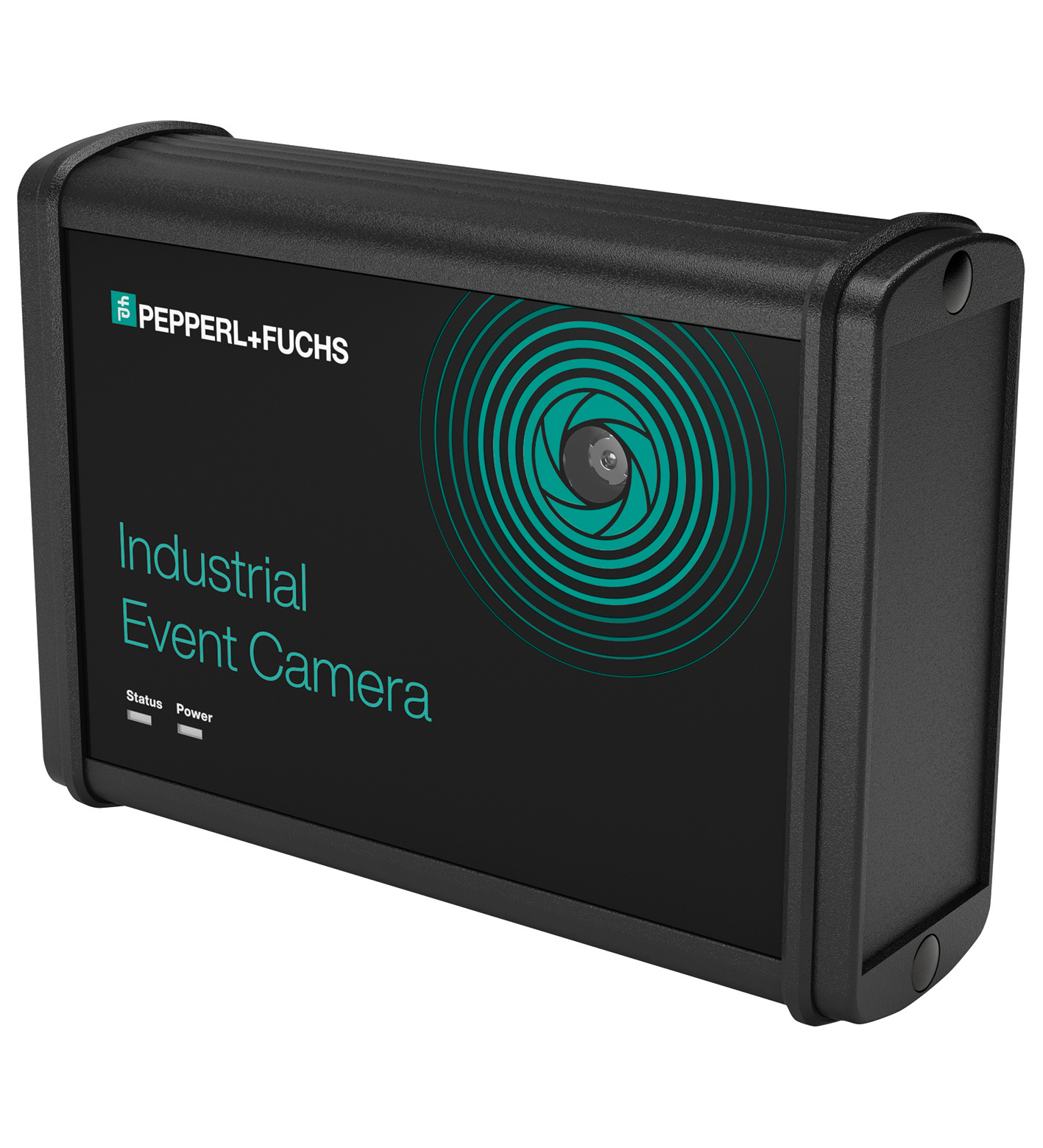

VOC10M-F256-B12-V1D-CR03

Industrial Event Camera. Event camera for recording video sequences with livestream function; mounting distance: 0.05 m to infinite; internal video ring buffer with a pre-run buffer for recording an e...

Industrial Event Camera. Event camera for recording video sequences with livestream function; mounting distance: 0.05 m to infinite; internal video ring buffer with a pre-run buffer for recording an event up to 60 s before and after a trigger event; trigger video/image capture via UDP, HTTP REST API, or a digital hardware input. Depth of focus: 0.05 m ... infinite. Field of view: see table. Horizontal angle of view: 62.2 °. Vertical angle of view: 48.8 °. Filter: IR-filter. Camera: . TypeCMOSShutterRolling shutterImage resolutionresolution: 1280 x 720 (HD), 1024 x 576, 960 x 540, 800 x 450, 640 x 360: . Type: CMOS. Shutter: Rolling shutter. Image resolution: resolution: 1280 x 720 (HD), 1024 x 576, 960 x 540, 800 x 450, 640 x 360. Camera: Motorized focus (adjustable via software). Type/Size: storage capacity of events , up to 10000 events. Non-volatile memory: 8 GByte microSD card, industrial, class 10 U1. Operating voltage: 18 ... 28 V DC. Current consumption: max. 200 mA (no heater) max. 700 mA (with heater). Interface type: 10 BASE-T/100 BASE-TX. Protocol: TCP/IP , HTTP , FTP , RTSP. Transfer rate: 10 MBit/s / 100 MBit/s. IP address: DHCP activated , Fall back IP (192.168.100.50. Signal voltage: . High16 ... 32 V DCLow0 ... 5 V DC: . High: 16 ... 32 V DC. Low: 0 ... 5 V DC. Input current: max. 7 mA. Trigger input: positive edge. Pulse duration: min. 20 ms. Input filter: min. 1.5 ms. Electromagnetic compatibility: EN 61326-1:2013. Radio equipment: . Directive 2014/53/EUETSI EN 300330 V2.1.1: . Directive 2014/53/EU: ETSI EN 300330 V2.1.1. Video: Video Livestream:- Codec/Container: MJPEG- frame rate: 24 fps- resolution: 1280 x 720 (HD), 1024 x 576, 960 x 540, 800 x 450, 640 x 360 RTSP stream 1:- Codec/Container: H264/RTSP- frame rate: 3 fps- resolution: 1280 x 720 (HD), 1024 x 576, 960 x 540, 800 x 450, 640 x 360 RTSP stream 2:- Codec/Container: H264/RTSP- frame rate: 3 fps- resolution: 640 x 360 Video Recording:- Codec/Container: H264/MP4, adjustable quality- frame rate: 24 fps- resolution: 1920 x 1080 (Full HD), 1280 x 720 (HD), 1024 x 576, 960 x 540, 800 x 450, 640 x 360. Operating temperature: -30 ... 50 °C (-22 ... 122 °F). Storage temperature: -30 ... 50 °C (-22 ... 122 °F). Relative humidity: non-condensing. Degree of protection: IP65. Connection: M12 x 1 connector, 4-pin, A-coded , unshielded (supply and digital input) M12 x 1 socket, 4-pin, D-coded , screened (Ethernet). Material: . HousingAluminum (AlMgSi0.5)Surfaceblack , powder coatedObservation windowglass, fully bonded: . Housing: Aluminum (AlMgSi0.5). Surface: black , powder coated. Observation window: glass, fully bonded. Mass: 0.3 kg. Dimensions: . Height114 mmWidth85 mmDepth35 mm: . Height: 114 mm. Width: 85 mm. Depth: 35 mm. Mounting: 4x M6 1x ¼-20 UNC

Brand	Pepperl Fuchs
Lifecycle status	active
