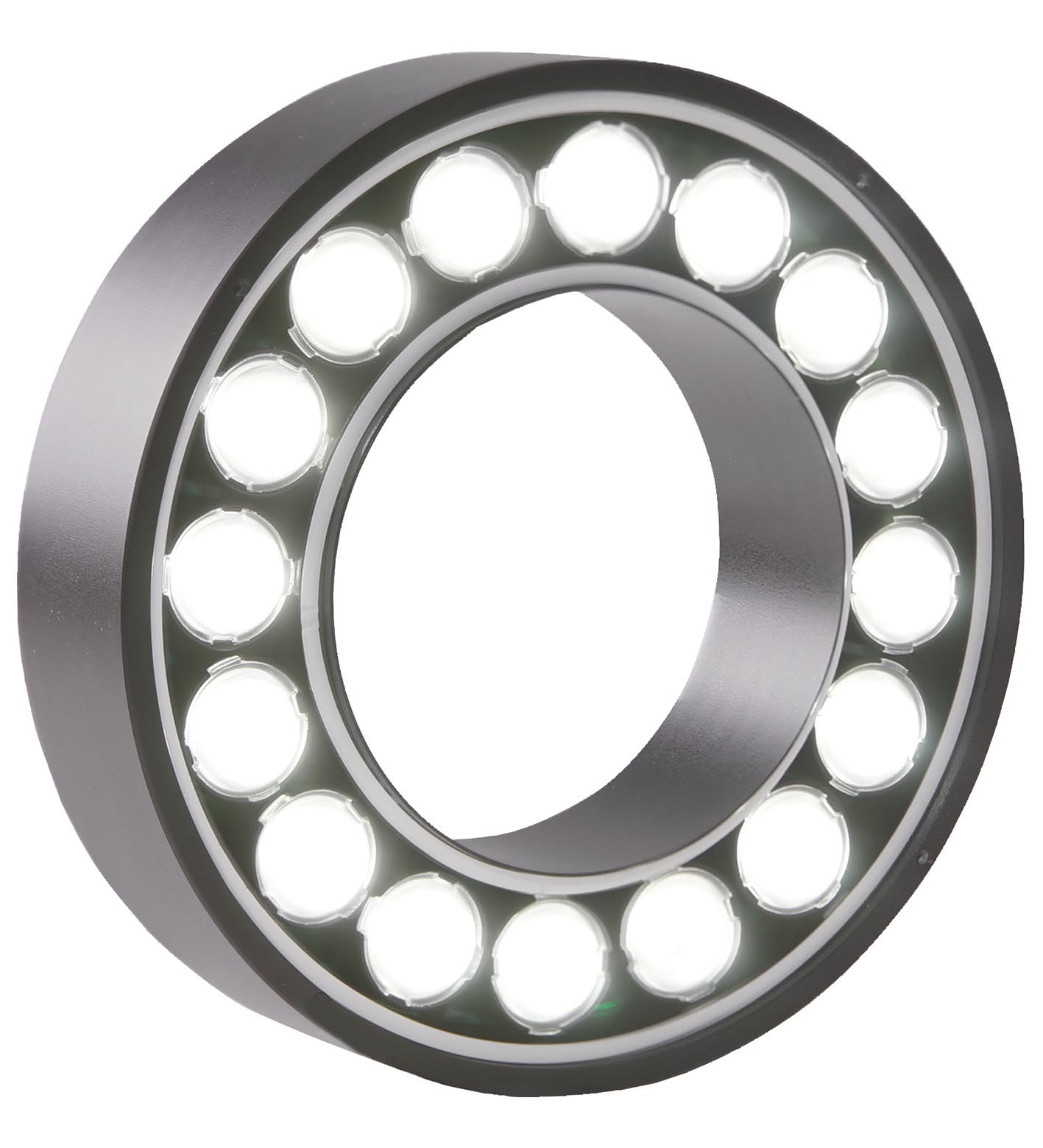

VOS-IL-F236W-49

Ring lighting. Opening angle of the light beam: 49°, white light, 16 high-power LEDs, light field size: dia. 71 mm x 104 mm, integrated flash controller. Light area dimensions: ∅ 71 mm x 104 mm. Light...

Ring lighting. Opening angle of the light beam: 49°, white light, 16 high-power LEDs, light field size: dia. 71 mm x 104 mm, integrated flash controller. Light area dimensions: ∅ 71 mm x 104 mm. Light source: 16 high-power LEDs. LED color: White light. Color temperature: 5300 K. Light direction: Directed with 49° ancillary lenses. Irradiance: 149 W/m2 at 0.2 m operating distance. Operating mode: Pulse / flash mode. Operation indicator: LED green: supply. Function indicator: LED green: Trigger. Operating voltage: 21 ... 30 V DC. Current consumption: 0.3 A at 24 V DC (average) / 0.8 A ( max. pulsed ). Power consumption: 14 W. Flash duration: VOS2000 0.05 ... 10 ms VOS5000 0.18 ... 10 ms. Input/output type: Flank-triggered / falling edge. 0 Level0 ... 8 V1 Level10 V ... UB: . 0 Level: 0 ... 8 V. 1 Level: 10 V ... UB. Photobiological safety: Risk group 1 according to IEC 62471. CE conformity: CE. Ambient temperature: 5 ... 45 °C (41 ... 113 °F) , no moisture condensation. Storage temperature: -20 ... 85 °C (-4 ... 185 °F). Relative humidity: 90 % non-condensing. Degree of protection: IP65. Connection: cable PUR , M12 connector, 5 pin , A-coded , 230 mm. Material: . Housinganodized aluminum I PMMA: . Housing: anodized aluminum I PMMA. Installation: Mounting bracket. Mass: approx. 450 g. Dimensions: . Height27.5 mmDiameter116 mm: . Height: 27.5 mm. Diameter: 116 mm

Brand	Pepperl Fuchs
Lifecycle status	active
