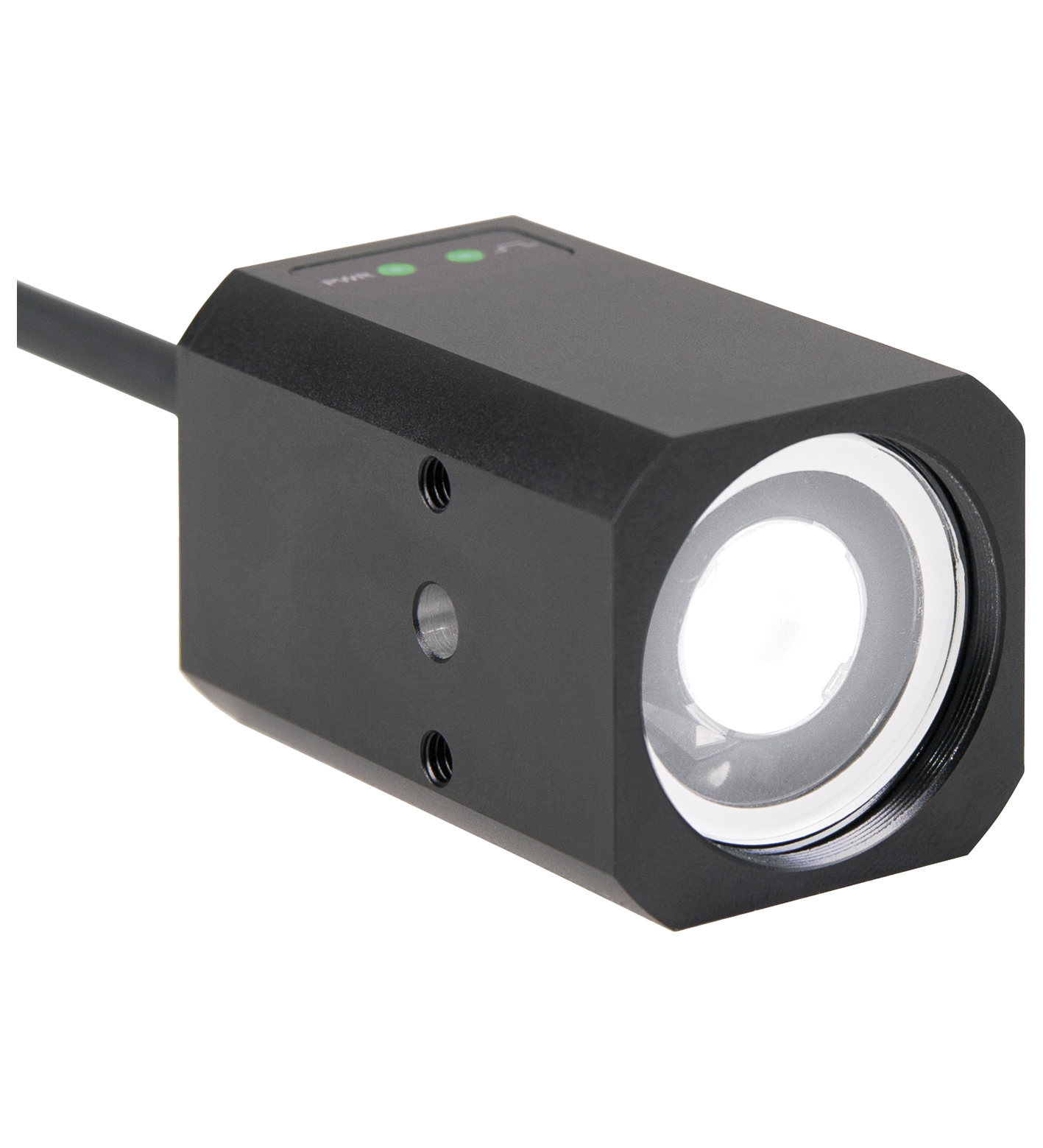

VOS-IL-F238W-49

Spot lighting. Opening angle of the light beam: 49°, white light, 1 high-power LED, light field size: dia. 24.2 mm, integrated flash controller. Light area dimensions: ∅ 24.2 mm. Light source: 1 high-...

Spot lighting. Opening angle of the light beam: 49°, white light, 1 high-power LED, light field size: dia. 24.2 mm, integrated flash controller. Light area dimensions: ∅ 24.2 mm. Light source: 1 high-power LED. LED color: White light. Color temperature: 5300 K. Light direction: Directed with 49° ancillary lenses. Irradiance: 13 W/m2 at 0.2 m operating distance. Operating mode: Flash operation / permanent operation. Operation indicator: LED green: supply. Function indicator: LED green: Trigger. Operating voltage: 21 ... 30 V DC. Current consumption: 0.1 A at 24 V DC (average) / 0.2 A ( max. pulsed ). Flash duration: 0.01 ... 10 ms VOS2000 0.08 ... 10 ms VOS5000 0.18 ... 10 ms. Input/output type: Flank-triggered / falling edge. 0 Level0 ... 8 V1 Level10 V ... UB: . 0 Level: 0 ... 8 V. 1 Level: 10 V ... UB. Photobiological safety: Risk group 2 according to IEC 62471. CE conformity: CE. Ambient temperature: 5 ... 45 °C (41 ... 113 °F) , no moisture condensation. Storage temperature: -20 ... 85 °C (-4 ... 185 °F). Relative humidity: 90 % non-condensing. Degree of protection: IP65. Connection: cable PUR , M12 connector, 5 pin , A-coded , 230 mm. Material: . Housinganodized aluminum I PMMA: . Housing: anodized aluminum I PMMA. Installation: Mounting bracket. Mass: approx. 200 g. Dimensions: . Height56 mmWidth35 mmLength35 mm: . Height: 56 mm. Width: 35 mm. Length: 35 mm

Brand	Pepperl Fuchs
Lifecycle status	active
