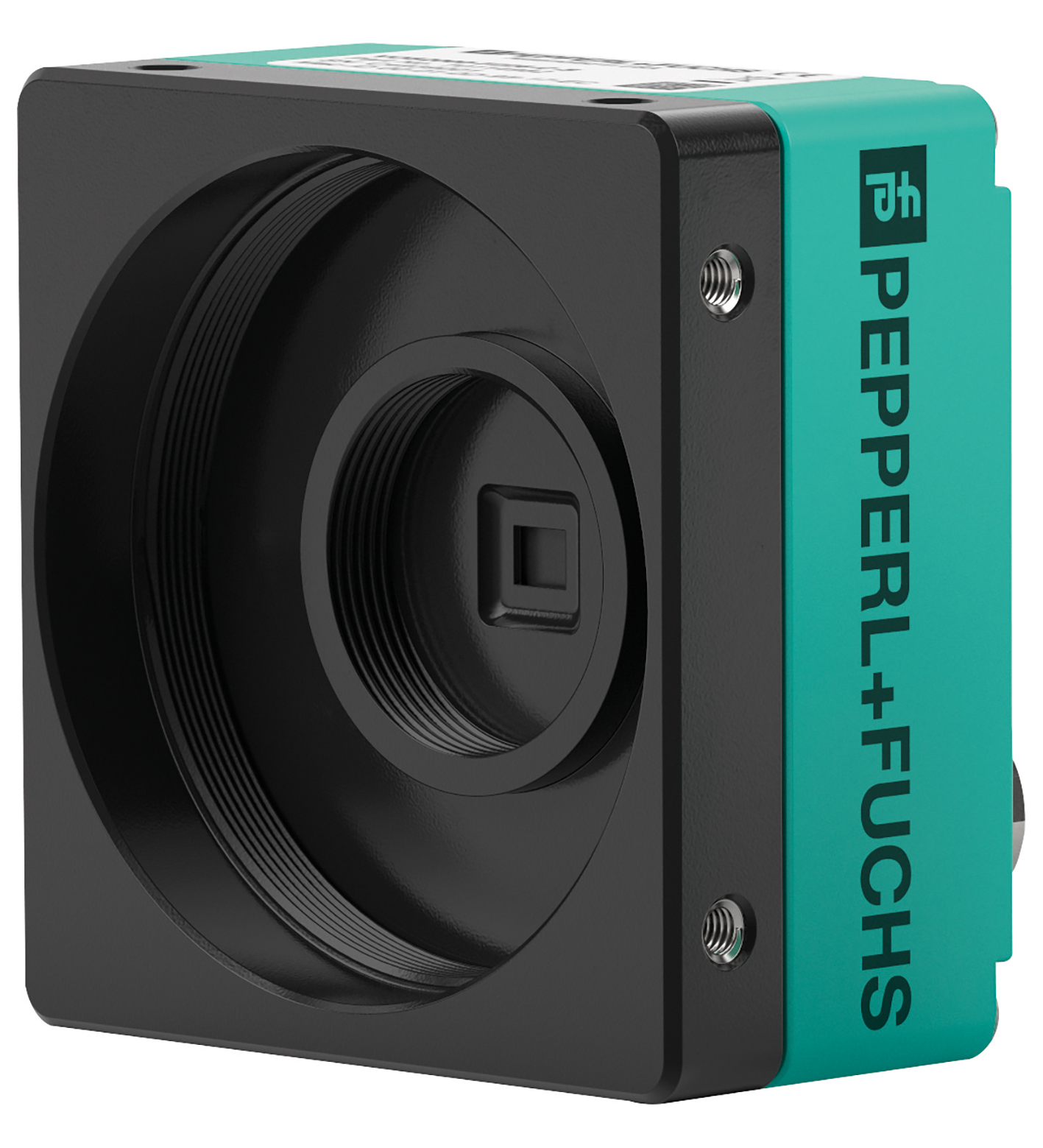

VOS2000-F226-C-I

Vision Sensor. Vision sensor for 1-D and 2-D code reading; resolution: 1280 x 960 pixels; light source: external illumination; lens: C-mount connection. Sensing range: 1-D barcode: 225 mm x 169 mm wit...

Vision Sensor. Vision sensor for 1-D and 2-D code reading; resolution: 1280 x 960 pixels; light source: external illumination; lens: C-mount connection. Sensing range: 1-D barcode: 225 mm x 169 mm with min. line width of 0.3 mm (reading distance depends on lens) 2-D barcode: 166 mm x 125 mm with min. module size of 0.3 mm (reading distance depends on lens) 1-D barcode: 376 mm x 282 mm with min. line width of 0.5 mm (reading distance depends on lens) 2-D barcode: 278 mm x 208 mm with min. module size of 0.5 mm (reading distance depends on lens). Light source: External lighting. Picture detail: dependant of operating distance. Readable codes: 1-D Codes: Code 128, Code 39, Int 2 of 5, Codabar, UPC-A/E, EAN-8/13, Code 11, Code 32, Plessey, MSI Plessey, Telepen, BC 412, Pharmacode, DataBar, Postcode, Trioptic 2-D Codes: Data Matrix, QR-Code, Micro QR-Code, PDF417, Micro PDF417, Aztec, Han Xin Code, Maxi Code, Grid Matrix, Dotcode. Trigger mode: Free-running or triggered externally. Depth of focus: ± 5 % of the operating distance. Evaluation frequency: 30 Hz. Target velocity: max. 4 m/s. Resolution: 1280 x 960 pixels. Image sensor: 1/3" CMOS monochromGlobal Shutter3.75 µm pixel size. Parameter assignment: Parameterization via PC user interface VCT Tool. Evaluation procedure: . Identification and Verification1-D and 2-D codes: . Identification and Verification: 1-D and 2-D codes. LED 1: Steady blue: sensor started, not set upSteady green: job loaded, ready for executionFlashing green: job loaded and being executed, capture in progressSteady red: sensor fault. LED 2: Flashing blue: starting (duration approx. 20 seconds)Steady green: measurement successful (Pass)Steady blue: measurement borderline (Recycle)Steady red: measurement unsuccessful (Fail). LED 3: Steady blue: warm reset or restartSteady red/green/yellow: network activity. Operating voltage: 12 ... 30 V DC. No-load supply current: 300 mA. Interface type: Ethernet. Protocol: PROFINET IO TCP/IP EtherNet/IP. Fieldbus: . Fieldbus typePROFINET PN IOFunctionData interface (result output, job change), trigger interfacePROFINET specificationV2.2Real-time communicationPROFINET IO Real-Time (RT)PROFINET conformance classConformance Class ARefresh timetyp. 128 ms ( depending on vision application )Input data264 Byte - GenericOutput data264 Byte - Generic: . Fieldbus type: PROFINET PN IO. Function: Data interface (result output, job change), trigger interface. PROFINET specification: V2.2. Real-time communication: PROFINET IO Real-Time (RT). PROFINET conformance class: Conformance Class A. Refresh time: typ. 128 ms ( depending on vision application ). Input data: 264 Byte - Generic. Output data: 264 Byte - Generic. Transfer rate: 100 MBit/s. Interface type: RS-232 , serial. Transfer rate: 115.2 kBit/s. Input type: optically decoupled Inputs. Input voltage: Logic low (OFF): 0 ... 3 VLogic high (ON): 11 ... 30 VSwitching threshold: 12 V. Control input: Image capture trigger + 2 general purpose inputs2 inputs can be used for job switching. Input current: 8 mA ( typical ). Internal protection circuit: 3 kΩ / 4000 V ( rms ). Switching delay: Switch-on time (ON): 20 µsSwitch-off time (OFF): 10 µsImage capture trigger: 62 µs (until image capture is triggered). Output type: 3 general purpose outputs , freely programmable , optically decoupled. Switching voltage: max. 30 V. Switching current: max. 100 mA each output. Switching delay: Switch-on time (ON): 150 µsSwitch-off time (OFF): 50 µs. Emitted interference: EN 61000-6-4:2007+A1:2011. Noise immunity: EN 61000-6-2:2005. Approvals: CE. Ambient temperature: 0 ... 50 °C (32 ... 122 °F). Storage temperature: -20 ... 60 °C (-4 ... 140 °F). Degree of protection: IP67 (with mounted lens protection cover). Connection: 8-pin M12 socket A-coded ; 12-pin M12 socket. Material: . Housinganodized aluminum , plastic: . Housing: anodized aluminum , plastic. Installation: Mounting bracket. Mass: approx. 200 g. Objective connection: C-mount connection for external lens with different focal lengths. Dimensions: . Height57 mmWidth58 mmLength61 mm: . Height: 57 mm. Width: 58 mm. Length: 61 mm

Brand	Pepperl Fuchs
Lifecycle status	active
