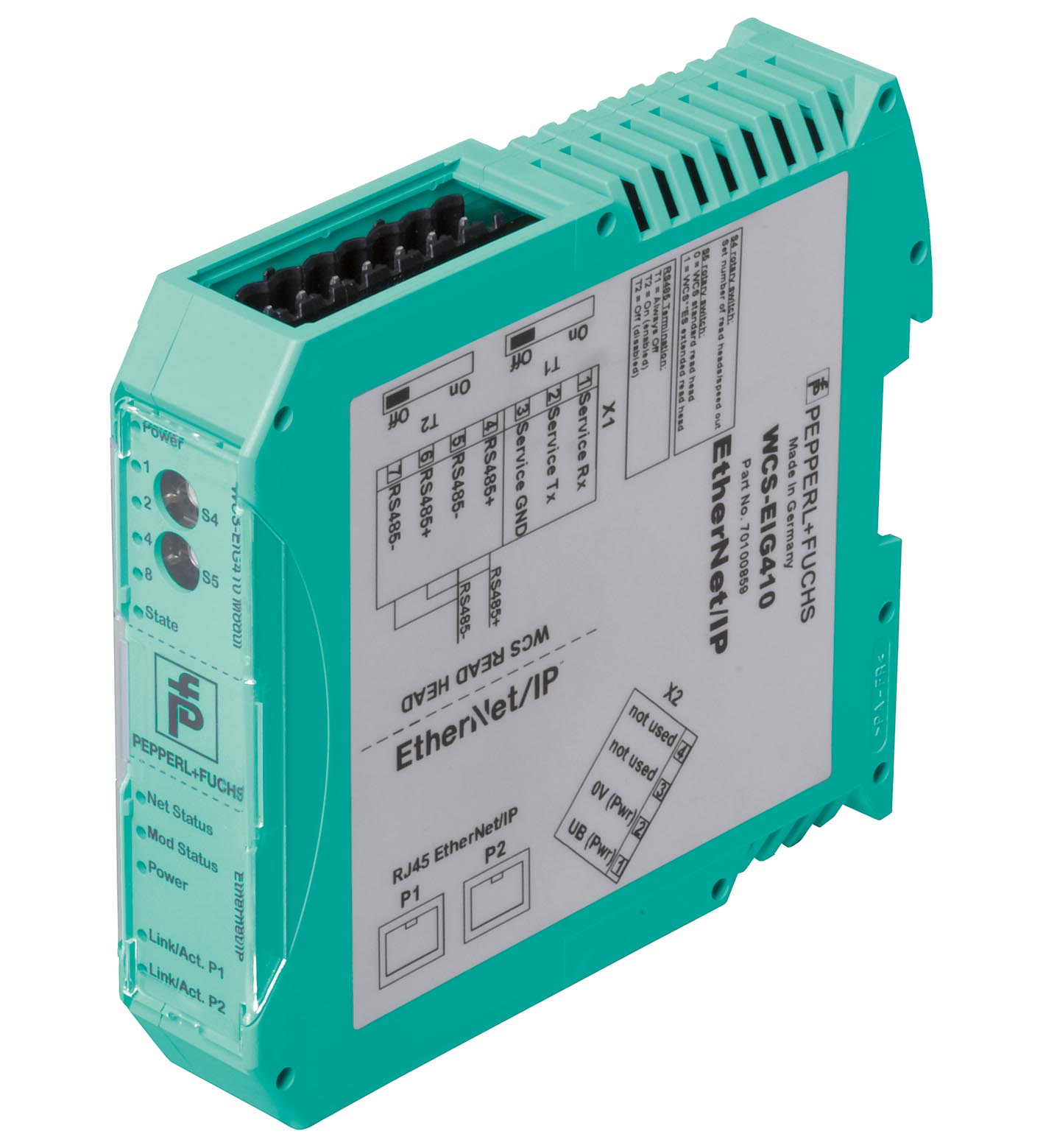

WCS-EIG410

WCS interface module. Up to 4 read heads can be connected, DIN rail mounting, Integrated switch, EtherNet/IP, Measuring length max. 629 m. Installation: DIN rail mounting. MTTFd: 180 a. Mission Time (...

WCS interface module. Up to 4 read heads can be connected, DIN rail mounting, Integrated switch, EtherNet/IP, Measuring length max. 629 m. Installation: DIN rail mounting. MTTFd: 180 a. Mission Time (TM): 10 a. Diagnostic Coverage (DC): 0 %. Operating voltage: 10 ... 30 V DC. Power consumption: ≤ 3.6 W (without read heads). Connection of: control system. Interface type: Ethernet. Protocol: EtherNet/IP. Transfer rate: 10 MBit/s or 100 MBit/s. Data output format: binary code. Connection of: control system. Interface type: Ethernet. Protocol: EtherNet/IP. Transfer rate: 10 MBit/s or 100 MBit/s. Data output format: binary code. Connection of: WCS read heads. Connectable read heads: WCS...-LS121 , WCS...-LS221 , WCS3B-LS1/2**ES with option ES (Extended Protocol up to 628 m). Interface type: RS-485. Protocol: half duplex. Transfer rate: 62.5 kBit/s. RS485 termination resistor: switchable. Refresh cycle of read head: 1 ms / 10 ms (with extended WCS read head). Emitted interference: EN 55011, cl. A: 2007. Noise immunity: EN 61000-6-2:2005. CCC approval: CCC approval / marking not required for products rated ≤36 V. Operating temperature: -25 ... 85 °C (-13 ... 185 °F) , no moisture condensation. Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Relative humidity: ≤ 80 %. Connection type: Interface 1 & 2: RJ-45 socket, 8-pin Interface 3: terminal connection ≤ 2.5 mm2 Interface 4: Terminal connection, 2-pin. Degree of protection: IP20. Material: plastic. Installation position: any position. Mass: approx. 140 g. Dimensions: . Height111 mmWidth23 mmDepth115 mm: . Height: 111 mm. Width: 23 mm. Depth: 115 mm

Brand	Pepperl Fuchs
Lifecycle status	active
