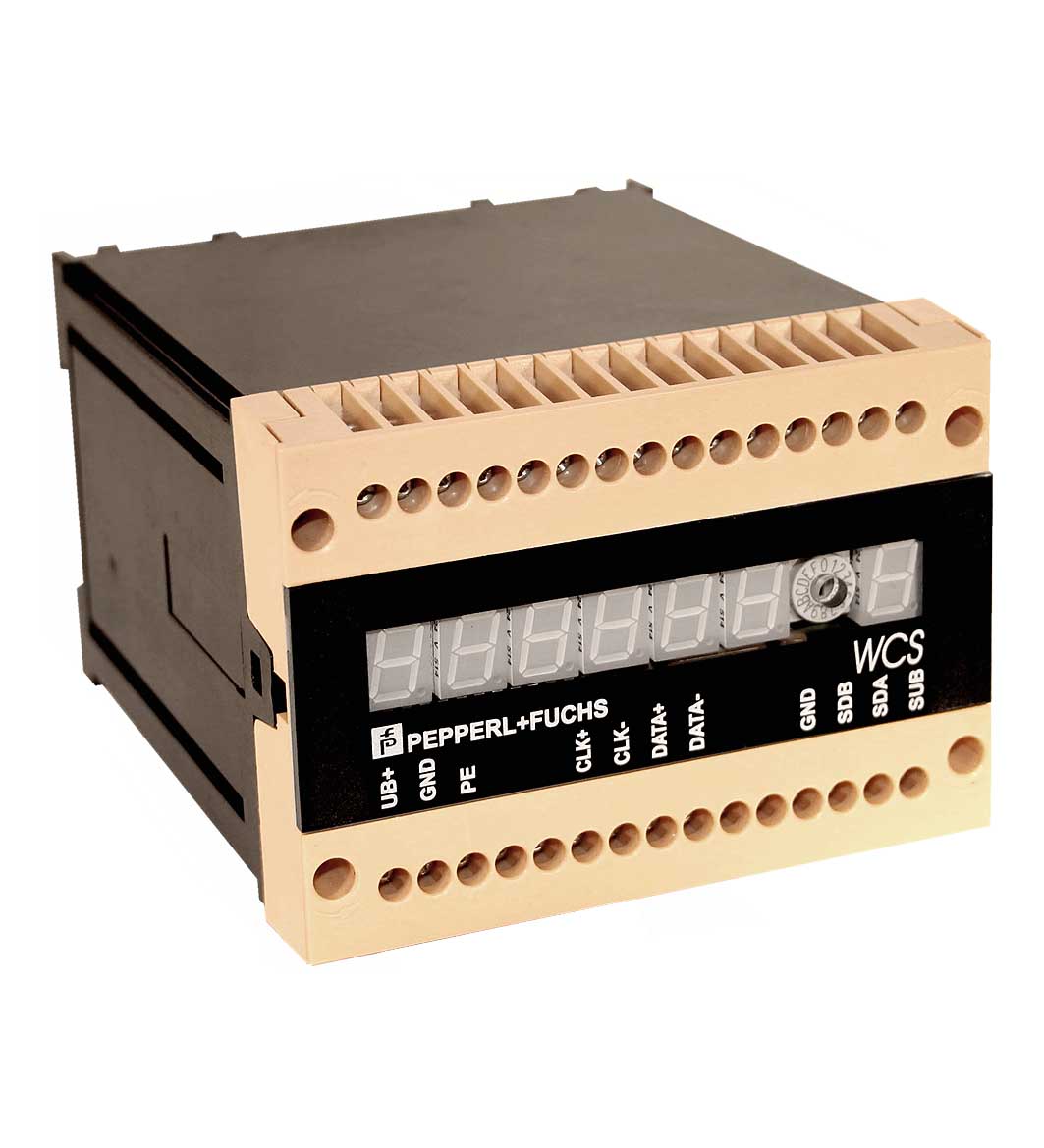

WCS-IS321

WCS interface module. WCS SSI interface module, Integrated display, Long possible cable legth between reading head and SSI master, DIN rail mounting. Installation: DIN rail mounting. Operating voltage...

WCS interface module. WCS SSI interface module, Integrated display, Long possible cable legth between reading head and SSI master, DIN rail mounting. Installation: DIN rail mounting. Operating voltage: 24 V DC ± 20 %. Power consumption: ≤ 2 W (without read heads). Connection of: control system. Interface type: SSI. Transfer rate: max. 500 kHz. Data output format: Gray code. Bus termination resistor: integrated. Connection of: Read head. Connectable read heads: WCS-LS221. Interface type: RS-485. Transmission method: half duplex. Transfer rate: max. 62.5 kBit/s. RS485 termination resistor: integrated. Refresh cycle of read head: 1 ms. Emitted interference: EN 55011. Noise immunity: DIN EN 50082-2. Operating temperature: 0 ... 55 °C (32 ... 131 °F). Storage temperature: -40 ... 70 °C (-40 ... 158 °F). Relative humidity: ≤ 80 %. Connection type: removable terminal block. Degree of protection: IP20. Material: plastic. Installation position: any position. Mass: approx. 350 g. Dimensions: . Height74 mmWidth100 mmDepth121 mm: . Height: 74 mm. Width: 100 mm. Depth: 121 mm

Brand	Pepperl Fuchs
Lifecycle status	active
