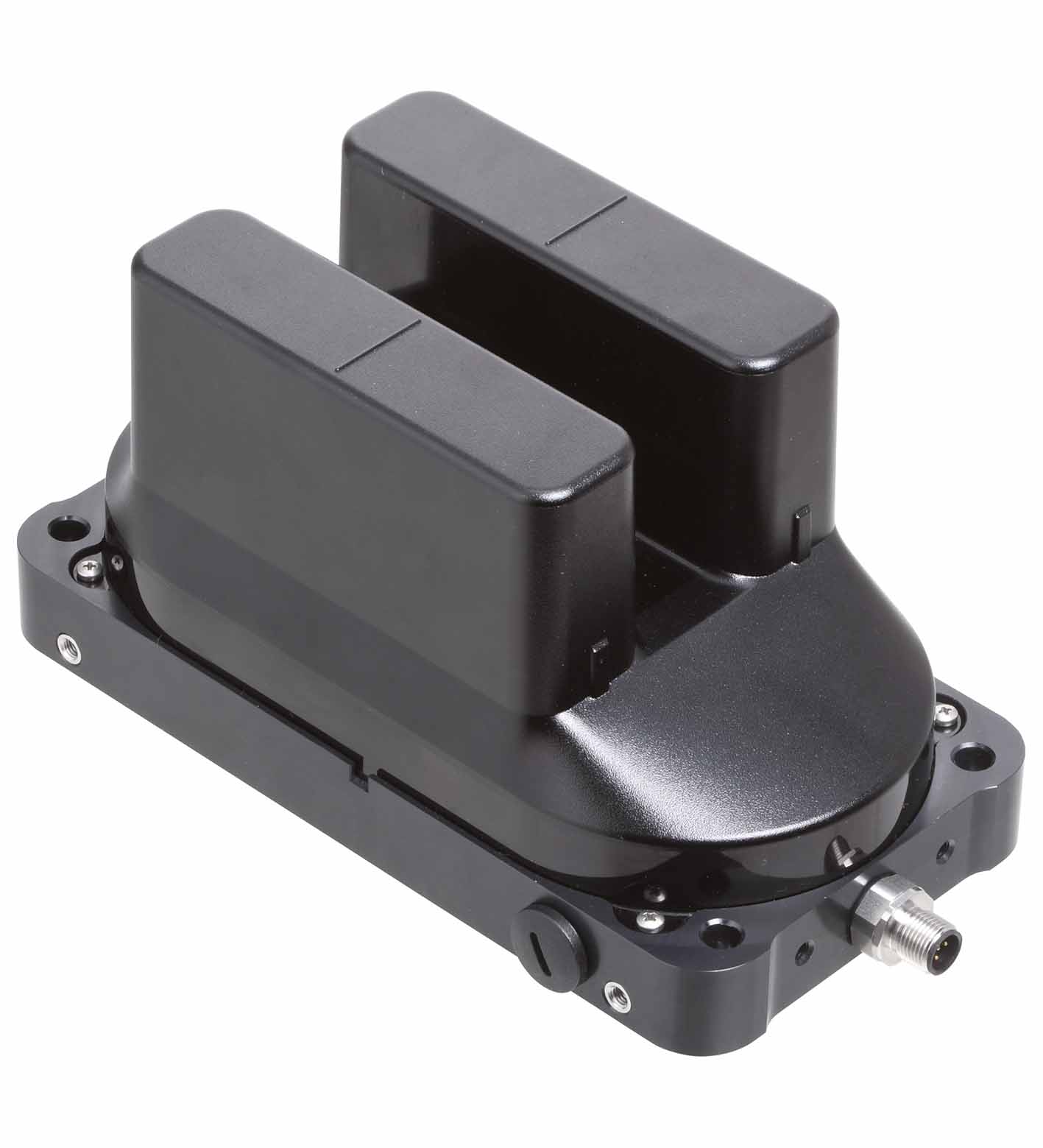

WCS3B-LS221EHS-OM

Read head. Read head, RS-485 interface, with RS-485 terminal resistor, RS-485 interface, Non-contact, absolute position encoder, Automatic detection of dirt accumulation, Speed transfer, Extended temp...

Read head. Read head, RS-485 interface, with RS-485 terminal resistor, RS-485 interface, Non-contact, absolute position encoder, Automatic detection of dirt accumulation, Speed transfer, Extended temperature range, Measuring length max. 629 m. Passage speed: ≤ 12.5 m/s. Measuring length: max. 629 m. Free tolerances to code rail: horizontal: 28 mm ( ± 14 mm )vertical: 25.5 mm ( +11.5 mm/-14 mm ). Resolution: ± 0.4 mm (1,250 positions/m). MTTFd: 44 a. Mission Time (TM): 10 a. Diagnostic Coverage (DC): 0 %. Data flow indicator: 1 LED yellow flashing: data communication active. Velocity indicator: 2 LED yellow on: if the speed limit is not exceeded off, if speed limit is exceeded. Error indicator: 3 Dual LED green on: code rail detected, normal function green flashing: invalid position red on: internal diagnostic test failed red flashing: read head outside of code rail. Operating voltage: 10 ... 30 V DC. Power consumption: 11 VA at 24 V DC. Interface type: RS 485 interface. Data output code: binary code. Protocol: 2 , extended to 629 m. Transfer rate: 62.5 kBit/s. Address: 0. Termination: with RS 485 termination. Query cycle time: ≥ 5 ms. Output velocity: switching output. Output type: 1 switch output PNP, NO , short-circuit protected. Switching voltage: Operating voltage. Switching current: 150 mA. Emitted interference: DIN EN 61000-6-4 , DIN EN 12015. Noise immunity: DIN EN 61000-6-2 , DIN EN 12016. Shock resistance: DIN EN 60068-2-27, half sine 30 g, 18 ms. Vibration resistance: DIN EN 60068-2-6, sine, 5 g, 10 - 2000 Hz, 10 cycles. CSA approval: cCSAus Certified, General Purpose Class 2 power source. CCC approval: CCC approval / marking not required for products rated ≤36 V. Operating temperature: -40 ... 60 °C (-40 ... 140 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Connection type: 5-pin, M12 x 1 connector. Degree of protection: IP67 / IP69. Material: . HousingPET , PC (Polycarbonate): . Housing: PET , PC (Polycarbonate). Mass: 1000 g. Note: The reader must not be operated without the protective housing!

Brand	Pepperl Fuchs
Lifecycle status	active
