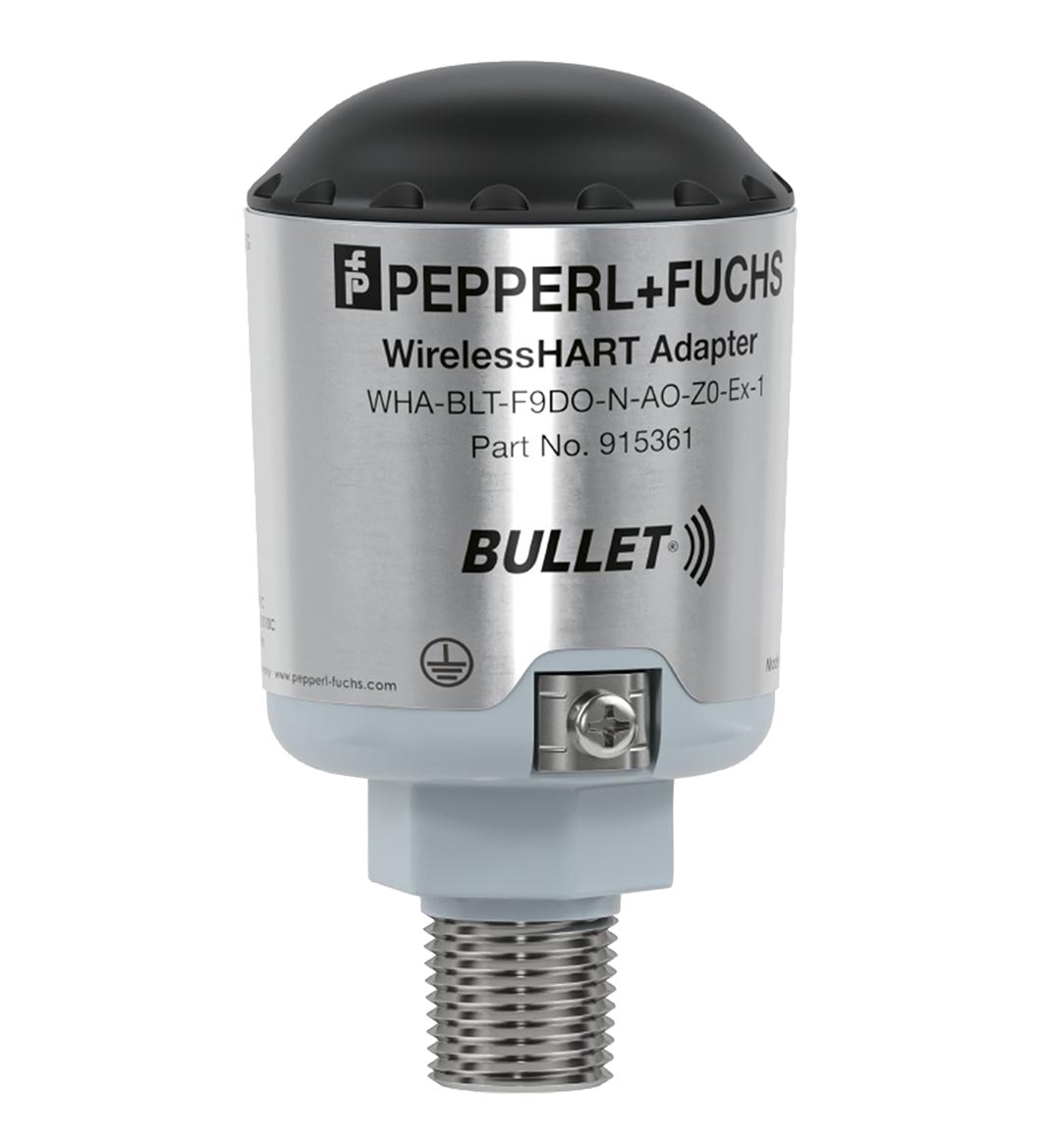

WHA-BLT-F9D0-N-A0-GP-1
Bullet WirelessHART Adapter. Cast aluminum housing, Loop powered, Direct mounting on HART or 4 mA ... 20 mA field device, Encapsulated antenna, Up to 8 field devices in multidrop. Rated voltage: 7 ......
Bullet WirelessHART Adapter. Cast aluminum housing, Loop powered, Direct mounting on HART or 4 mA ... 20 mA field device, Encapsulated antenna, Up to 8 field devices in multidrop. Rated voltage: 7 ... 32 V DC. Rated current: < 1 mA , max. 25 mA. Output current: 3.2 ... 25 mA. Supply: loop power for field devicesvoltage: 1 ... 2.5 V DC, adjustable in steps of 0.5 V. Connection: - 5 wires, 600 mm long, exiting from male thread NPT1/2 - 1 external grounding point. HART communication: . ProtocolHART 7.1, backward compatibleNumber of devicesup to 8 HART field devices (depending on installation): . Protocol: HART 7.1, backward compatible. Number of devices: up to 8 HART field devices (depending on installation). Interface: internal antenna. Communication: WirelessHART specifications- physical layer: IEEE 802.15.4.2006- frequency band: 2.4 GHz (ISM band, licence free)- maximum transmit power: +10 dBm- outdoor transmission range: 235 m- communication standard: WirelessHART acc. to IEC 62591. Radio and telecommunication terminal equipment: The usage of 2.4 GHz equipment is bound to local restrictions. Ensure that restrictions allow usage of this product before commisioning.. Directive 2014/53/EUEN 300 328 V2.1.1:2016 EN 301 489-1 V2.2.0:2017 EN 301 489-17 V3.2.0:2017FCC CFR47 Part 15 B and CANSI C63.4-2003 , FCC ID: X89-WA1101: . Directive 2014/53/EU: EN 300 328 V2.1.1:2016 EN 301 489-1 V2.2.0:2017 EN 301 489-17 V3.2.0:2017. FCC CFR47 Part 15 B and C: ANSI C63.4-2003 , FCC ID: X89-WA1101. Degree of protection: IEC 60529:2013. Ambient temperature: -40 ... 85 °C (-40 ... 185 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Relative humidity: max. 100 %. Degree of protection: IP67. Material: aluminum alloy with polyurethane enamel paint. Mass: 460 g. Dimensions: 60.8 x 60.8 x 100 mm (l x w x h). Height100 mmDiameter60.8 mm: . Height: 100 mm. Diameter: 60.8 mm. FM approval: FM 17 NUS 0010. Control drawing116-0425 (cFMus): . Control drawing: 116-0425 (cFMus). CSA approval: FM 17 NCA 0004. Control drawing116-0425 (cFMus): . Control drawing: 116-0425 (cFMus). Supplementary information: Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
