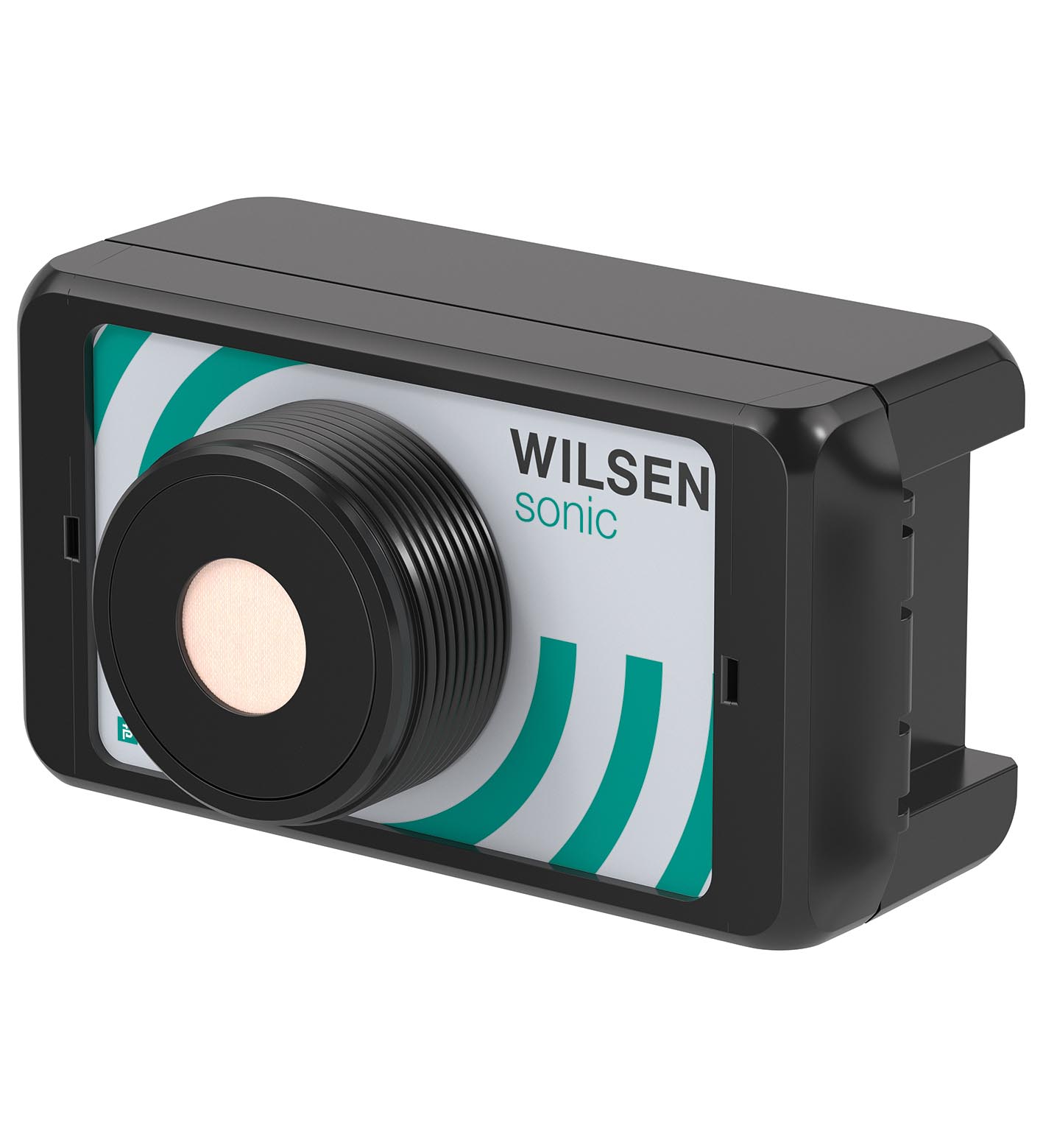

WS-UCC2500-F406-B41-01-02-IBC

Wireless ultrasonic sensor. For direct mounting in the 2-inch thread of the lid of intermediate bulk containers (IBC), Battery operated, Data transfer via LoRaWAN, Series: -F406, Interface type: Bluet...

Wireless ultrasonic sensor. For direct mounting in the 2-inch thread of the lid of intermediate bulk containers (IBC), Battery operated, Data transfer via LoRaWAN, Series: -F406, Interface type: Bluetooth 5.0 LE, Interface type: LoRaWAN, Directive 2014/53/EU: EN 300 220-2 V3.1.1:2017 <BR>EN 300 328 V2.2.2:2019 <BR>EN 303 413 V1.1.1:2017, Housing: PC (UL94-V0). Detection type: ultrasonic. Sensing range: 150 ... 2500 mm. Dead band: 0 ... 150 mm. Resolution: 1 mm. Measurement interval: 10 min ... 24 h. GPS sensor: for geo-positioning. Acquisition interval30 min ... 24 h: . Acquisition interval: 30 min ... 24 h. Temperature sensor: . Resolution0.5 °CAccuracy± 2 °C: . Resolution: 0.5 °C. Accuracy: ± 2 °C. Battery type: high capacity lithium battery 3.6 V , 13000 mAh. Operating duration: battery lifetime approx. 10 years under Central European environmental conditions, 3 measurements and 3 wireless transmission per day with sufficient network coverage.. Interface type: Bluetooth 5.0 LE. Transmitter radiated power: + 8 dBm. Frequency range: 2402 ... 2480 MHz. Interface type: LoRaWAN. Specification: LoRaWAN interface specification V1.0.3. Device type: LoRaWAN class A device. Downlink channel: yes. Transmitter frequency: 868 MHz. Transmitter radiated power: + 8 dBm. Frequency range: 863 ... 870 MHz (Europe). Transmission interval: 10 min ... 24 h. Electromagnetic compatibility: . Directive 2014/30/EUEN 301 489-1 V2.2.3:2019 EN 301 489-3 V2.1.1:2019 EN 301 489-17 V3.2.4:2020 EN 301 489-19 V2.1.1:2019: . Directive 2014/30/EU: EN 301 489-1 V2.2.3:2019 EN 301 489-3 V2.1.1:2019 EN 301 489-17 V3.2.4:2020 EN 301 489-19 V2.1.1:2019. Radio and telecommunication terminal equipment: . Directive 2014/53/EUEN 300 220-2 V3.1.1:2017 EN 300 328 V2.2.2:2019 EN 303 413 V1.1.1:2017: . Directive 2014/53/EU: EN 300 220-2 V3.1.1:2017 EN 300 328 V2.2.2:2019 EN 303 413 V1.1.1:2017. RoHS: . Directive 2011/65/EU (RoHS)EN 63000:2018: . Directive 2011/65/EU (RoHS): EN 63000:2018. Mech. capacity: EN 60947-5-2:2020 IEC 60947-5-2:2019. Shock resistance: EN 60947-5-2:2020 IEC 60947-5-2:2019. Vibration resistance: EN 60947-5-2:2020 IEC 60947-5-2:2019. Climatic conditions: EN 60947-5-2:2020 IEC 60947-5-2:2019. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Degree of protection: IP66 / IP67. Material: . HousingPC (UL94-V0)TransducerPTFE coated front: PBT thread: POM: . Housing: PC (UL94-V0). Transducer: PTFE coated front: PBT thread: POM. Mass: 550 g. Dimensions: . Height85 mmWidth81 mmLength150.8 mm: . Height: 85 mm. Width: 81 mm. Length: 150.8 mm. Beam width: wide. Transmission interval: 24 h. Measurement interval: 24 h

Brand	Pepperl Fuchs
Lifecycle status	active
