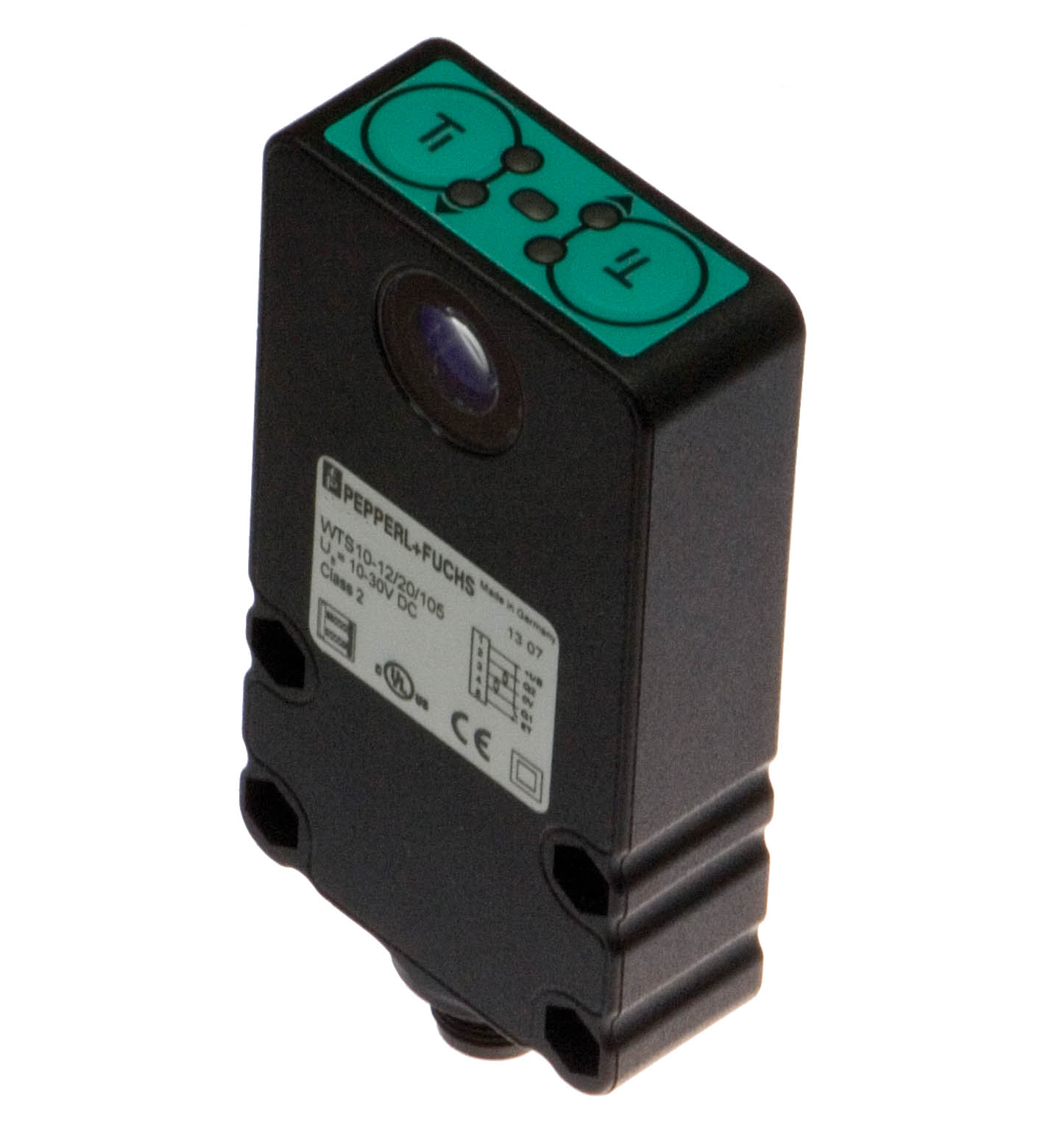

WTS10-12/20/105
Diffuse mode sensor. Diffuse mode sensor, Specifically for quality checks on welding caps, Upper and lower welding caps checked simultaneously, High position and angle tolerance insensitivity of the w...
Diffuse mode sensor. Diffuse mode sensor, Specifically for quality checks on welding caps, Upper and lower welding caps checked simultaneously, High position and angle tolerance insensitivity of the welding cap, Stability alarm indication, Scratch resistant mineral glass lens. Detection range: 2 ... 12 mm. Reference target: Copper welding-electrode Diameter: 16 mm , Front end: 6 mm. Light source: LED. Light type: modulated visible red light , 640 nm. Ambient light limit: continuous light 40000 Lux , Modulated light 5000 Lux. Tilting angle: ± 1.5 °. Position tolerance: ± 2 mm. Operation indicator: LED green: Power on. Function indicator: LED yellow: switching state LED red: Stability alarm indicator. Teach-in indicator: LED, green/yellow flashing (approx. 4 Hz) Teach Error:LED green/yellow non equiphase flashing; 8.0 Hz. Control elements: Teach-In key. Operating voltage: 10 ... 30 V DC. No-load supply current: ≤ 70 mA. Switching type: light-on. Signal output: 2 switch outputs PNP, NO short-circuit protected reverse polarity protected. Switching current: max. 100 mA. Switching frequency: 100 Hz. Response time: 5 ms. Product standard: EN 60947-5-2. Standard conformity: . Shock and impact resistanceIEC / EN 60068. half-sine, 50 g in each X, Y and Z directionsVibration resistanceIEC / EN 60068-2-6. Sinus. 10 -150 Hz, 5 g in each X, Y and Z directions: . Shock and impact resistance: IEC / EN 60068. half-sine, 50 g in each X, Y and Z directions. Vibration resistance: IEC / EN 60068-2-6. Sinus. 10 -150 Hz, 5 g in each X, Y and Z directions. Protection class: II, rated voltage ≤ 250 V AC with pollution degree 1-2 according to IEC 60664-1. UL approval: cULus Listed. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: 0 ... 50 °C (32 ... 122 °F) The switching accuracy will remain, if the temperature after Teach-In does not varies more than ±7 °C. Storage temperature: -20 ... 70 °C (-4 ... 158 °F). Degree of protection: IP67. Connection: 5-pin, M12 x 1 connector. Material: . HousingPC + ABSOptical faceScratch resistant mineral glass lens: . Housing: PC + ABS. Optical face: Scratch resistant mineral glass lens. Mass: 80 g. Dimensions: . Height90 mmWidth50 mmLength20 mm: . Height: 90 mm. Width: 50 mm. Length: 20 mm
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
