7XT3300-0CA00

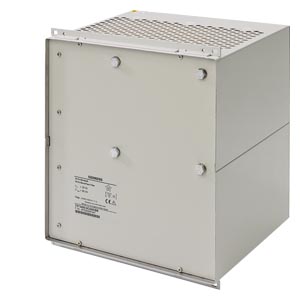

20 HZ FREQUENCY GENERATOR FOR EARTH FAULT 100% PROTECTION THE 20HZ FREQUENCY GENERATOR CREATES A 20HZ SQUARE WAVE VOLTAGE WITH AN AMPLITUDE OF APPROX. 25V. THIS VOLTAGE IS CONNECTED VIA BANDPASS AND A...

20 HZ FREQUENCY GENERATOR FOR EARTH FAULT 100% PROTECTION THE 20HZ FREQUENCY GENERATOR CREATES A 20HZ SQUARE WAVE VOLTAGE WITH AN AMPLITUDE OF APPROX. 25V. THIS VOLTAGE IS CONNECTED VIA BANDPASS AND A LOAD RESISTOR TO THE STATOR CIRCUIT OF THE GENERATOR. THE FREQUENCY GENERATOR IS CONNECT. (THREE PHASE) TO THE VOLTAGE TRANSFORMER. ALTERNATIVELY A POWER SUPPLY VIA THE STATION BATTERY(100,220V DC) IS POSSIB. MAX. POWER CONSUMPT.APPROX.80VA MEASUREMENT VALUE PROCESSING WILL DONE BY 7UM515 IN 7XP20 CASE FOR

Brand	Siemens
Lifecycle status	active
Weight	6.1 kg
